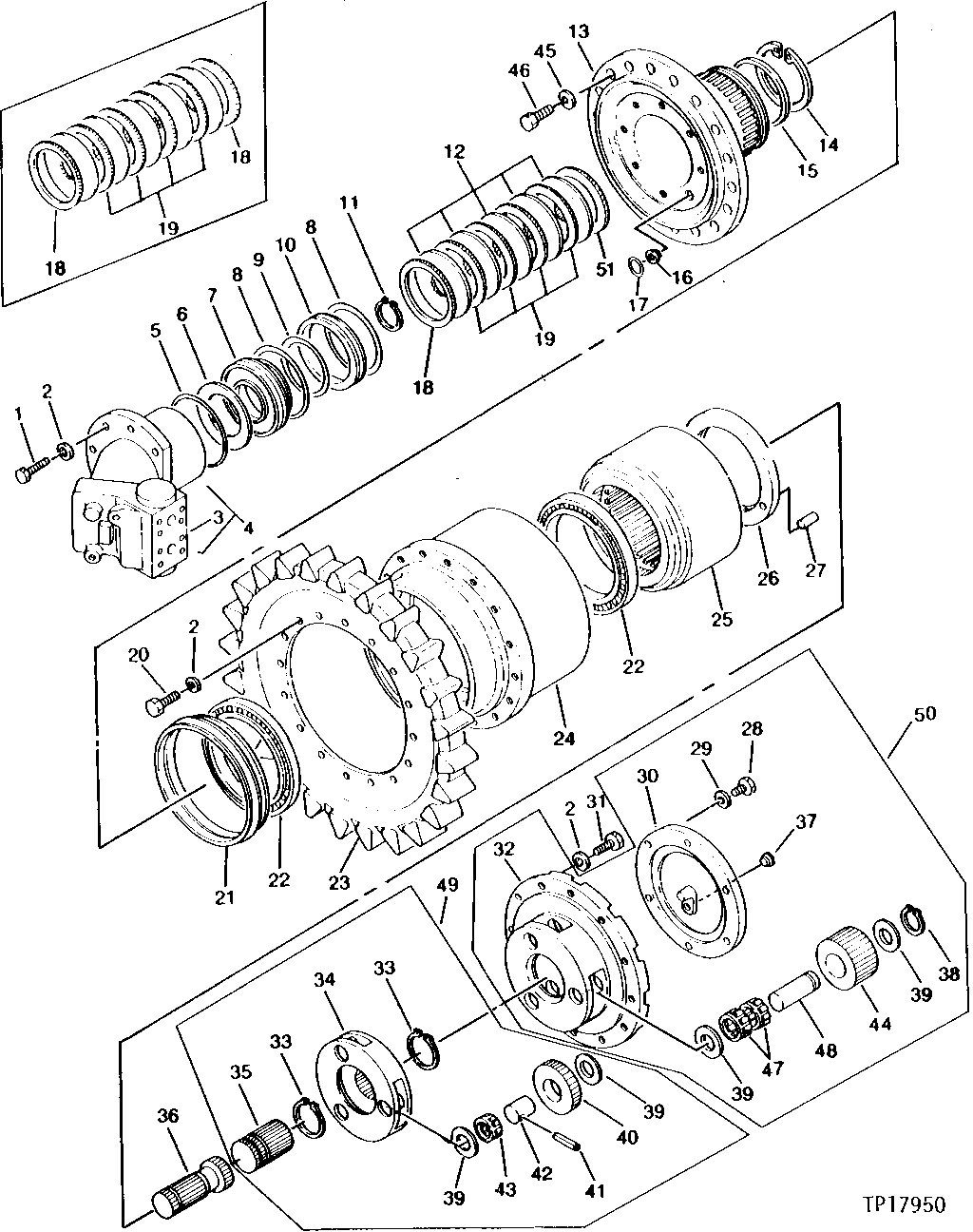

PROPEL MOTOR, BRAKE AND FINAL DRIVE [01B11]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7409	7	Cap Screw	M16 X 50
2	12H294	35	Lock Washer	5/8", (SUB FOR TH100466)
3	9048327	1	VALVE	(SUB FOR TH100037) BRAKE
4	AT217309	1	HYDRAULIC MOTOR	(REMANUFACTURED) (SUB FOR TH100002)
5	-	1	Part 5	(K) ( TH100499 NO LONGER AVAILBALE)
6	3020853	1	DISK SPRING	(SUB FOR TH100497)
7	3022888	1	PISTON	(SUB FOR TH100496)
8	-	2	Part 8	(K) ( TH100494 NO LONGER AVAILABLE)
9	4324947	1	O-RING	(K) (SUB FOR 4117030 OR TH100495)
10	4115810	1	SPACER	(SUB FOR TH100493)
11	40M7066	1	Snap Ring	(SUB FOR TH100498)
12	3022524	5	BRAKE DISK	(SUB FOR TH100491)
13	1005849	1	HOUSING	(SUB FOR TH100459)
14	40M7194	1	Snap Ring	(SUB FOR TH100461)
15	4115811	1	SPACER	(SUB FOR TH100460)
16	4135291	1	SPACER	(SUB FOR TH100502)
17	CH17167	1	O-Ring	(SUB FOR TH100500)
18	3030241	2	CLUTCH PLATE	(BRAKE SEPARATOR) (SUB FOR TH100490) (SUB TH102312 AND TH102309)
18	3030240	1	CLUTCH PLATE	(SUB FOR TH102312)
19	3030239	4	CLUTCH PLATE	(SUB FOR TH100492)
19	3030239	4	CLUTCH PLATE	(SUB FOR TH102311)
20	19M7489	16	Cap Screw	M16 X 45
21	TH100463	1	SEAL	-
22	JD10423	2	Bearing Cup	(SUB FOR TH100426 ALONG WITH JD10425)
22	JD10425	2	BEARING CONE	(SUB FOR TH100462 ALONG WITH JD10423)
23	1005873	1	DRIVE SPROCKET	(SUB FOR TH100465)
24	1005872	1	HUB	(SUB FOR TH100464)
25	2015088	1	RING GEAR	(SUB FOR TH100468)
26	3022523	1	RETAINER	(SUB FOR TH100469)
27	4126653	1	DOWEL PIN	(SUB FOR TH100470)
28	19M7872	6	Cap Screw	M12 X 25
29	4065034	6	WASHER	(SUB FOR TH100486)
30	2015089	1	COVER	(SUB FOR TH100484)
31	19M7488	12	Cap Screw	M16 X 40
32	1005871	1	PLANET PINION CARRIER	(SUB FOR TH100479)
33	40M7120	2	Snap Ring	(SUB FOR TH100473)
34	2016959	1	PLANET PINION CARRIER	(SUB FOR TH100471)
35	TH100472	1	SUN GEAR	-
36	2015123	1	DRIVE SHAFT	(SUB FOR TH100489)
37	4241426	1	Fitting Plug	(SUB FOR TH100487) (SUB FOR TH111907)
38	962002	3	Snap Ring	(SUB FOR TH100483)
39	4135227	12	THRUST WASHER	(SUB FOR TH100477)
40	TH100474	3	GEAR	-
41	4082632	3	SPRING PIN	(SUB FOR TH100478)
42	4135192	3	PIN FASTENER	(SUB FOR TH100475)
43	4135194	3	NEEDLE BEARING	(SUB FOR TH100476)
44	3022429	3	GEAR	(SUB FOR TH100480)
45	12M7070	28	Lock Washer	20 MM
46	19M8639	28	Cap Screw	M20 X 70, (SUB FOR TH100504) (SUB FOR 19M8387)
47	4139193	6	NEEDLE BEARING	(SUB FOR TH100481)
48	4138218	3	PIN FASTENER	(SUB FOR TH100482)
49	-	1	Part 52	( TH105666 NO LONGER AVAILABLE, ORDER INDIVIDUAL COMPONENTS)
50	-	1	Part 53	( TH105667 NO LONGER AVAILABLE, ORDER INDIVIDUAL COMPONENTS)
51	3030241	1	CLUTCH PLATE	(SUB FOR TH102309) (RADIAL GROOVES IN THE PLATES SHOULD BE ON THE SPACER SIDE)
