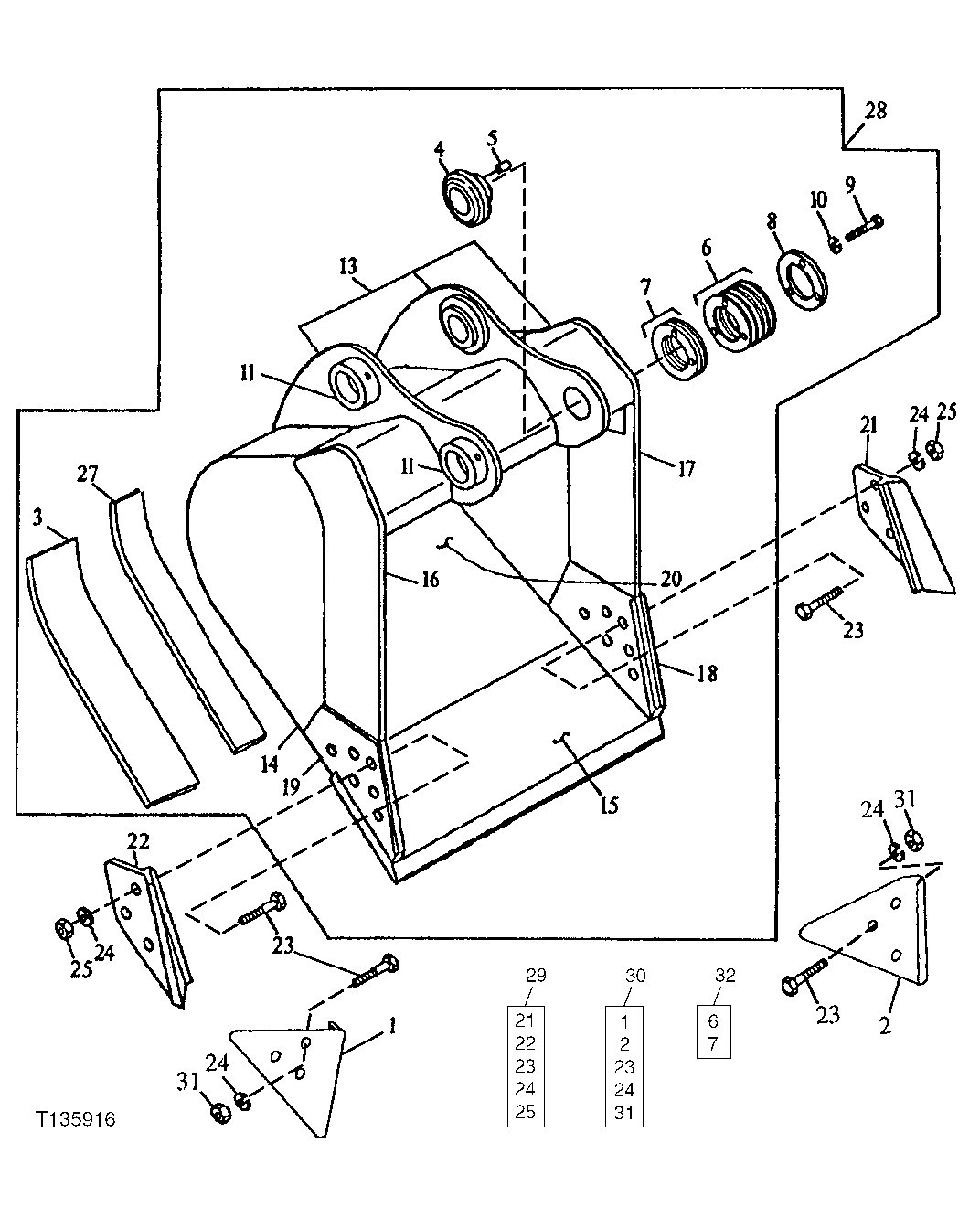

GENERAL PURPOSE BUCKET (ALSO ORDER BUCKET TOOTH ASSEMBLIES) [02C19]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(B) (RT. EDGE PROTECTOR)
2	-	1	Part 2	(B) (LT. EDGE PROTECTOR)
3	306618	2	Bar	(OUTER WEAR)
4	3028363	1	BUSHING	(SUB FOR TH100346)
5	4179109	1	PIN	(SUB FOR TH103619)
6	-	7	Part 6	(C)
7	-	3	Part 7	(C)
8	TH100347	1	SPACER	-
9	19M7404	3	Cap Screw	M14 X 40
10	12H317	3	Lock Washer	9/16"
11	TH108649	2	Bushing	-
13	C607884	1	PIVOT	(D) (BUCKET EAR BLANK ASSEMBLY)
14	607048	2	Plate	(D) (RIGHT AND LEFT SIDE)
15	AT131081	1	Dura-Max Cutting Edge	(CUT TO LENGTH) (72 INCH LENGTH)
16	304954	1	Vertical Cutter	(D) (UPPER RIGHT SIDE CUTTER)
17	304955	1	Vertical Cutter	(D) (UPPER LEFT SIDE CUTTER)
18	304953	1	Vertical Cutter	(D) (LEFT SIDE CUTTER INSERT)
19	304952	1	Vertical Cutter	(D) (RIGHT SIDE CUTTER INSERT)
20	604672	1	Moldboard	(D) (48 INCH BUCKET)
20	604671	1	Moldboard	(D) (42 INCH BUCKET)
20	604669	1	Moldboard	(D) (30 INCH BUCKET)
20	604667	1	Moldboard	(D) (24 INCH BUCKET)
20	604664	1	Moldboard	(D) (18 INCH BUCKET)
20	604670	1	Moldboard	(D) (36 INCH BUCKET)
21	-	1	Part 25	(A) (LT. HAND SIDE CUTTER)
22	-	1	Part 26	(A) (RT. HAND SIDE CUTTER)
23	09H1770	6	Bolt	(A) (B) 7/8" X 2-1/2"
24	12H245	6	Lock Washer	(A) (B) 7/8"
25	14H1077	6	Nut	(A) 7/8"
27	304966	1	Bar	(D) (INNER WEAR)
28	AT163507	1	EXCAVATOR BUCKET	WHOLEGOODS (WHOLE GOODS) (SUB FOR AT131006 OR AT131126) (18 INCH - .34 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)
28	AT163514	1	EXCAVATOR BUCKET	WHOLEGOODS (WHOLE GOODS) (SUB FOR AT131011 OR AT131131) (48 INCH - 1.06 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)
28	AT163512	1	EXCAVATOR BUCKET	WHOLEGOODS (WHOLE GOODS) (SUB FOR AT131010 OR AT131130) (42 INCH - .92 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)
28	AT163510	1	EXCAVATOR BUCKET	WHOLEGOODS (WHOLE GOODS) (SUB FOR AT131009 OR AT131129) (36 INCH - .78 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)
28	AT163509	1	EXCAVATOR BUCKET	WHOLEGOODS (WHOLE GOODS) (SUB FOR AT131008 OR AT131128) (30 INCH - .64 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)
28	AT163508	1	EXCAVATOR BUCKET	WHOLEGOODS (WHOLE GOODS) (SUB FOR AT131007 OR AT131127) (24 INCH - .50 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)
29	AT131080	1	End Bit	WHOLEGOODS (SIDE CUTTER) (WHOLE GOODS) (INCLUDES PARTS MARKED (A))
30	AT167874	1	KIT	WHOLEGOODS (EDGE PROTECTOR) (WHOLE GOODS) (INCLUDES PARTS MARKED (B))
31	14H1044	6	Nut	(B) 22.225 MM (7/8")
32	AT146242	1	Shim Kit	WHOLEGOODS (SHIM) (WHOLE GOODS) (INCLUDES PARTS MARKED (C))

GENERAL PURPOSE BUCKET (ALSO ORDER BUCKET TOOTH ASSEMBLIES) [02C19]
