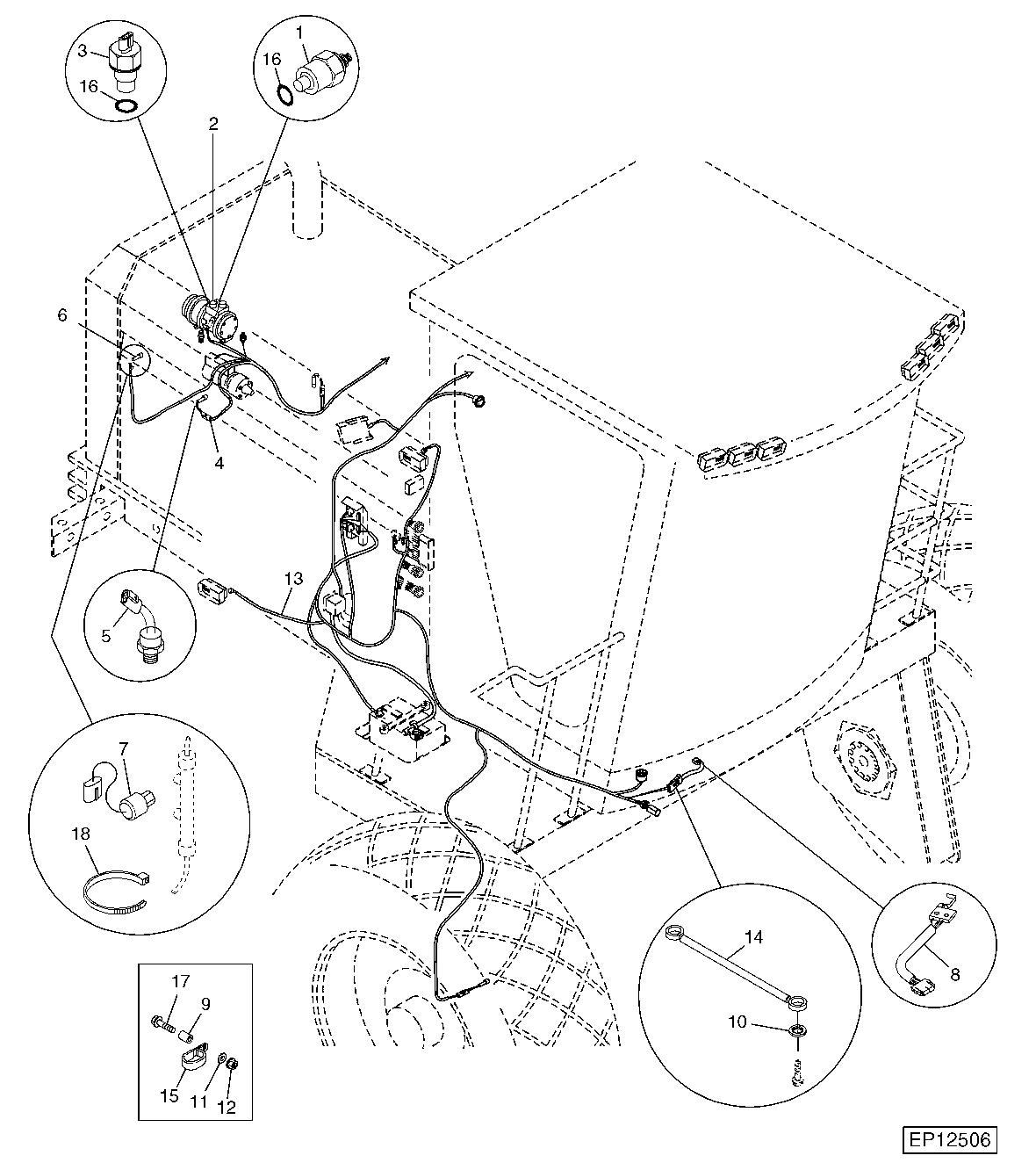

WIRING HARNESS (RIGHT SIDE) (MAIN TRACTION) - CONTINUED

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH151124	1	Sensor	ENGINE TEMP GAUGE
2	57M7850	1	Elec. Connector Housing	SUB FOR 57M7278
2	R104701	1	Elec. Connector Terminal	-
2	57M7258	1	Elec. Connector Seal	-
3	RE43511	1	Sensor	ENGINE RPM
4	R78053	1	Electrical Connector Assy	ENGINE OIL PRESSURE
4	R78058	1	Elec. Connector Terminal	-
4	R78059	1	Elec. Connector Seal	-
5	AH172066	1	Switch	(SUB FOR AH133896)ENGINE OIL PRESSURE
6	RE12363	1	Electrical Connector Assy	AIR CONDITIONER HIGH PRESSURE SWITCH
6	R78060	1	Elec. Connector Terminal	-
6	R78062	1	Elec. Connector Seal	-
7	RE24307	1	Pressure Switch	-
8	AH163708	1	Rotary Switch	(Neutral)
9	T71897	1	SLEEVE	-
10	PT2314	1	Washer	-
11	24M7207	1	Washer	8.400 X 24 X 2 mm
12	14M7298	1	Flange Nut	M8
13	AE52303	1	Wiring Harness	(SUB AE71025 ) (ALSO ORDER AE73059)MAIN (AS SHOWN)
13	AE71025	1	Wiring Harness	(SUB AE73191 ) (ALSO ORDER (3) AE73192 ) (USE WITH AE73059)
13	AE73191	1	Wiring Harness	-
13	AE74130	1	Wiring Harness	-
14	AE70409	1	Ground Cable	-
15	AH79175	1	Clip	-
16	51M7041	2	O-Ring	11.300 X 2.200 mm
17	19M7663	1	Cap Screw	M8 X 70
18	H77698	1	Tie Band	-

WIRING HARNESS (RIGHT SIDE) (MAIN TRACTION) - CONTINUED
