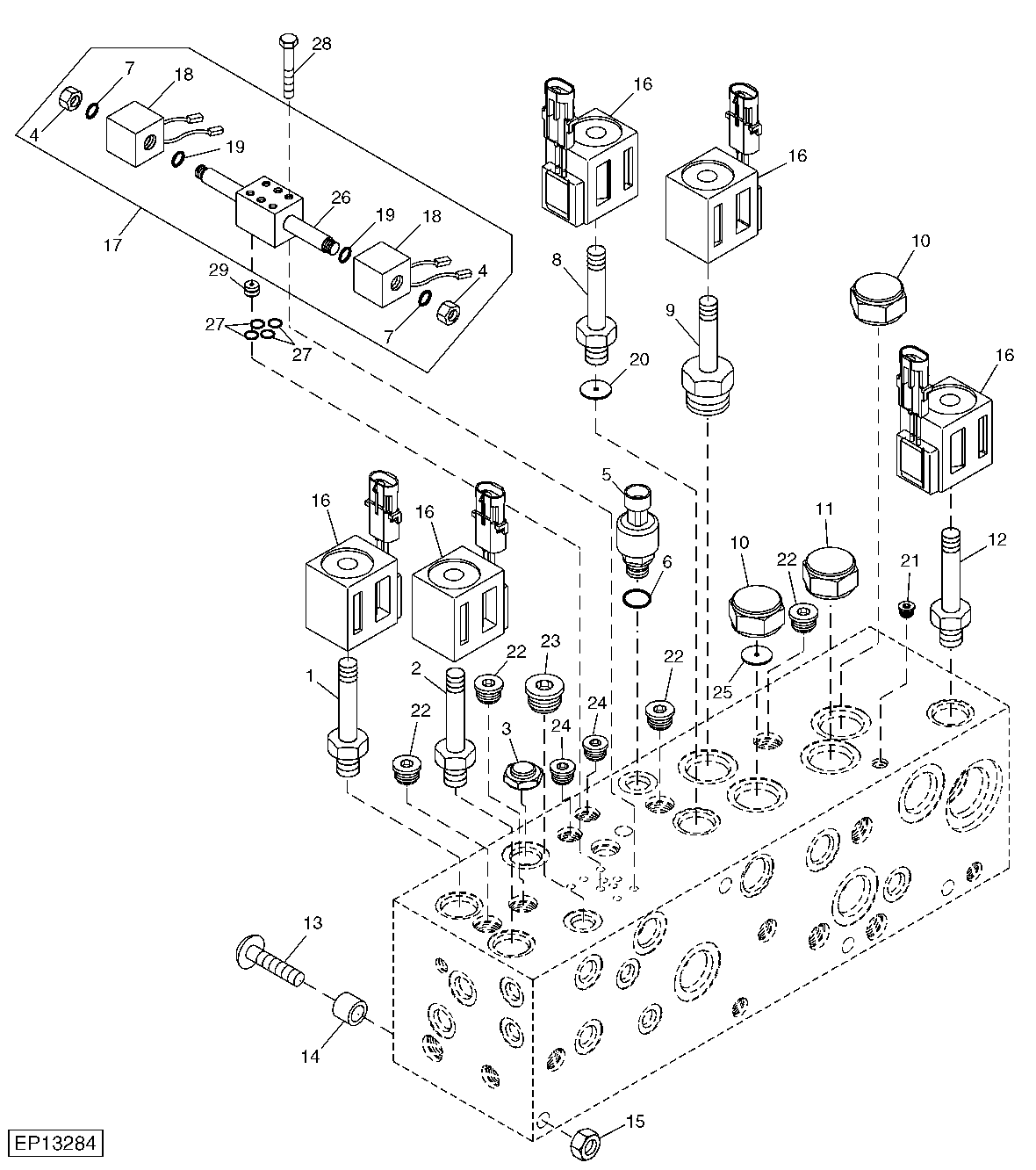

Main Hydraulic Valve Fittings Continued (310001 - 319999)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH132831	1	Seal Kit	-
1	AE71166	1	Solenoid Valve	BRAKE/STEERING RELEASE
2	AT216347	1	Seal Kit	-
2	AE71165	1	Solenoid Valve	MOTOR HI/LO
3	AE73082	1	Check Valve	PILOT OPERATED
3	AE73085	1	O-Ring Kit	-
4	N203255	2	Nut	-
5	RE204264	1	Trans Oil Pressure Sensor	-
6	R26448	1	O-Ring	-
7	U46166	2	O-Ring	-
8	AE71170	1	Solenoid Valve	FLOAT DECREASE
8	AT216348	1	Seal Kit	-
9	AE71169	1	Solenoid Valve	PLATFORM LOWER
9	AT209899	1	Seal Kit	-
10	AE71177	2	Check Valve	20 PSI
10	AT209899	2	Seal Kit	-
11	AE71178	1	Check Valve	COOLER BY PASS
11	AT209899	1	Seal Kit	-
12	AE71183	1	O-Ring Kit	-
12	AE73079	1	Solenoid Valve	-
13	03H2042	3	Bolt	3/8" X 6-1/2"
14	FH304203	3	Spacer	-
15	N10215	3	Lock Nut	-
16	E127127	5	Solenoid Valve Coil	-
17	AE73818	1	Valve	(SUB FOR AE73525)
18	E130965	2	Solenoid Valve Coil	(SUB FOR E130575)
19	R62070	2	Ring	-
20	E127124	1	Orifice	-
21	AE59242	1	Fitting Plug	-
22	AT49216	4	Fitting Plug	-
23	AT101923	1	Fitting Plug	-
24	AN276896	2	Fitting Plug	-
25	E130704	1	Orifice	-
26	-	1	Part 34	(ORDER AE73818)
27	T77613	4	O-Ring	-
28	19H3070	4	Screw	0.190" X 1-1/4"
29	E130711	1	Orifice	FRONT MOST PORT
29	E130710	1	Orifice	BACK MOST PORT

Main Hydraulic Valve Fittings Continued (310001 - 319999)
