WIRING HARNESS (RIGHT SIDE)(MAIN TRACTION)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7540	1	Elec. Connector Terminal	-
1	57M7538	1	Elec. Connector Housing	PLATFORM
1	R78062	1	Elec. Connector Seal	12 GAUGE
1	R78063	1	Elec. Connector Seal	14 - 16 GAUGE
1	R78059	1	Elec. Connector Seal	18 GAUGE
1	57M7298	1	Elec. Connector Terminal	12 - 14 GAUGE
1	57M7297	1	Elec. Connector Terminal	16 - 18 GAUGE
1	R78064	1	Elec. Connector Cavity Plug	-
2	57M7819	1	Elec. Connector Housing	NEUTRAL START SWITCH
2	R77464	1	Elec. Connector Terminal	-
3	H118426	1	Electrical Connector Assy	STEERING COLUMN HARNESS
3	AE44930	1	Elec. Connector Accessory	CLAMP
3	R77465	1	Elec. Connector Terminal	-
4	R78053	1	Electrical Connector Assy	GROUND SPEED PICK UP
4	R78058	1	Elec. Connector Terminal	-
4	R78059	1	Elec. Connector Seal	-
5	AH116104	1	Sensor	GROUND SPEED
6	R27448	2	Nut	(SUB FOR H132647)
7	E85013	1	Strap	-
8	N282065	1	Elec. Connector Terminal	9 CAVITY TO MAIN CAB HARNESS
8	R78065	1	Elec. Connector Terminal	-
8	R78069	1	Elec. Connector Cavity Plug	-
9	57M7822	1	Electrical Connector Assy	14 CAVITY TO ARMREST HARNESS
9	AE44931	1	Elec. Connector Accessory	CLAMP
9	R77464	1	Elec. Connector Terminal	-
10	H130510	1	Elec. Connector Terminal	TO HEAT/AIR CONDITIONER HARNESS
10	R78066	1	Elec. Connector Terminal	-
10	57M7536	1	Elec. Connector Terminal	-
10	R78069	1	Elec. Connector Cavity Plug	-
11	57M7813	1	Elec. Connector Housing	FUEL SENDER
11	R104701	1	Elec. Connector Terminal	-
12	AE54875	1	Fuel Sender	-
13	T155195	1	Gasket	-
14	21H1300	5	SCREW	0.190" X 3/8"
15	57M7309	1	Elec. Connector Housing	AUX LIGHT POWER
15	57M7306	1	Elec.Connect Locking Device	-
15	57M7298	1	Elec. Connector Terminal	-
15	R78063	1	Elec. Connector Seal	-
16	57M7552	1	Electrical Connector Assy	FLOOD LAMP
16	57M7735	1	Electrical Connector Assy	-
16	57M7491	1	Elec. Connector Terminal	-
16	R78063	1	Elec. Connector Seal	-
17	R78059	1	Elec. Connector Seal	-
17	R78058	1	Elec. Connector Terminal	-
17	R78053	1	Electrical Connector Assy	-
17	R78057	1	Elec. Connector Terminal	-
17	RE12363	1	Electrical Connector Assy	AIR FILTER RESTRICT
18	AH148259	1	Switch	AIR FILTER RESTRICT
19	AE44392	1	Electrical Connector Assy	THROTTLE MOTOR
19	AE44389	1	Elec. Connector Accessory	CLAMP
19	R77465	1	Elec. Connector Terminal	-
20	57M7309	1	Elec. Connector Housing	ENGINE TEMP LIGHT
20	57M7306	1	Elec.Connect Locking Device	-
20	57M7297	1	Elec. Connector Terminal	-
20	R78059	1	Elec. Connector Seal	-
21	AH139059	1	Temperature Switch	ENGINE TEMP LIGHT
22	19H3031	1	Cap Screw	3/8" X 2-1/2"
23	E93433	1	Spacer	-
24	AE73191	1	Wiring Harness	(SUB FOR AE52303 AND AE71025) (ALSO ORDER AE73059 AND (3) AE73192) MAIN (AS SHOWN)

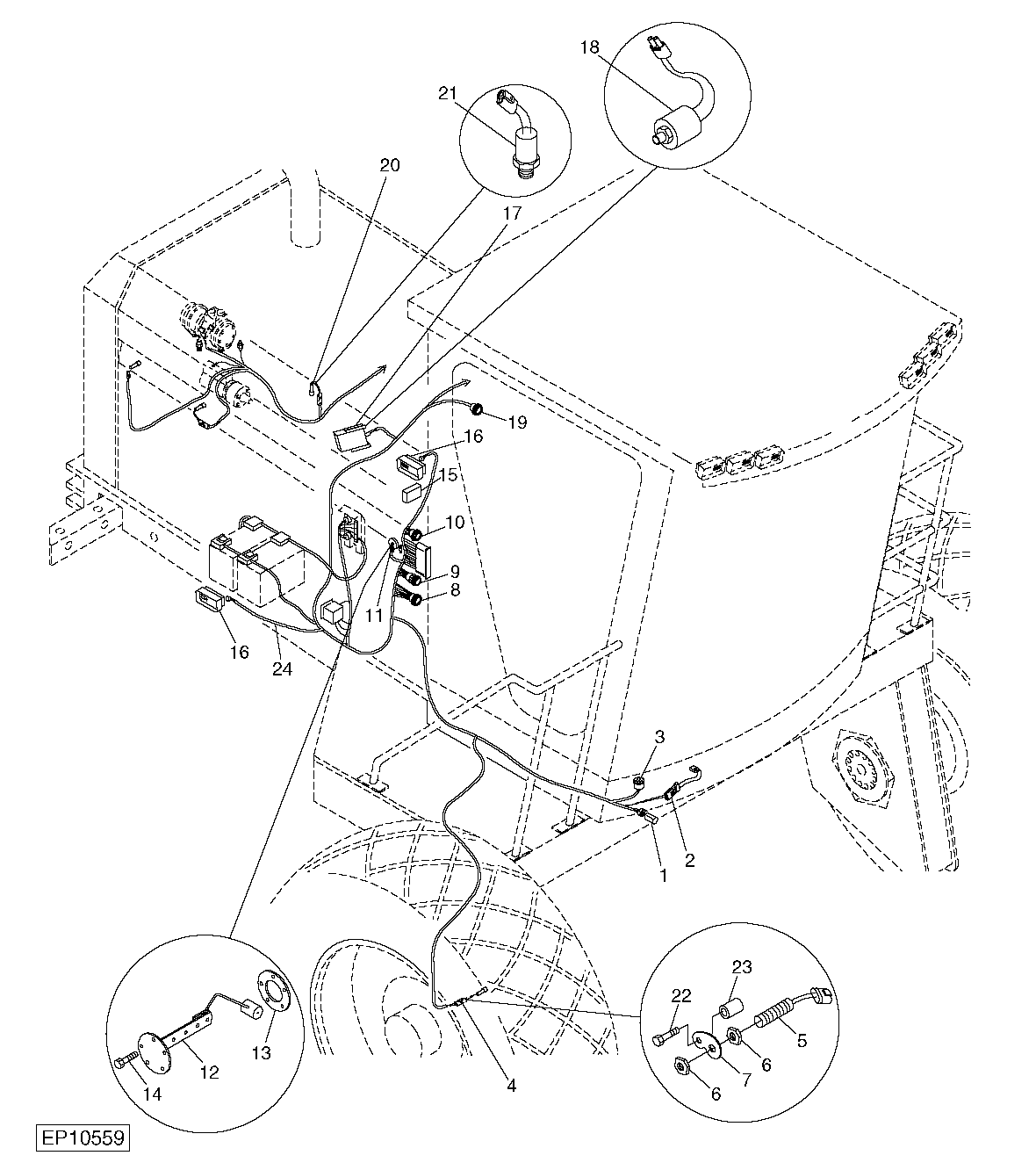

WIRING HARNESS (RIGHT SIDE)(MAIN TRACTION)
