Открытый узел

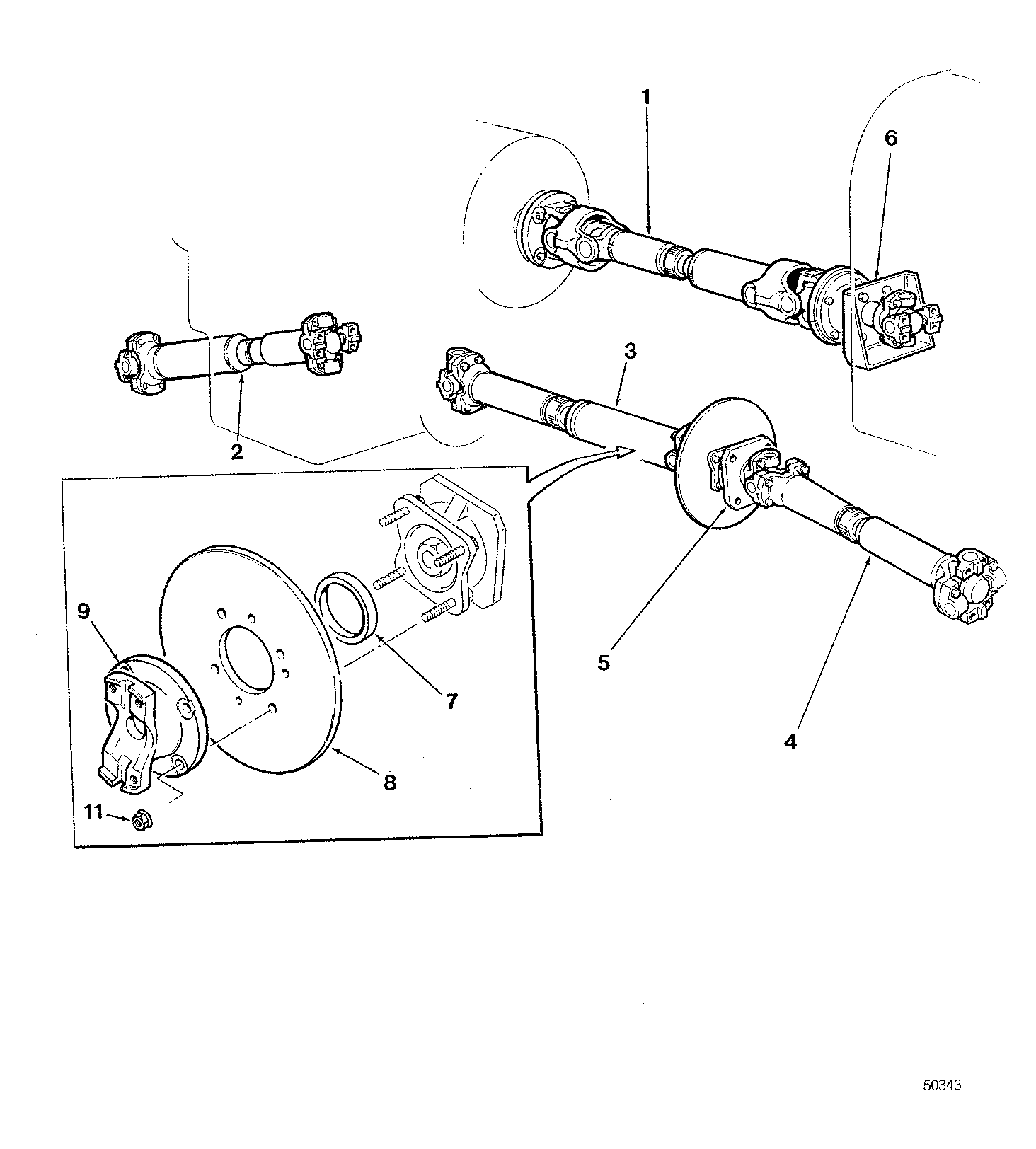

DRIVESHFT LAYOUT CABLE T50 WINCH ( CI2996 - ) 1500-050/12 [1500-050/12]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	811020100	1	DRIVESHAFT	Refer to Page: SKIDDER, LOG\480-T SKIDDER, LOG\480-T - 480 TO 550-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT TRANSMISSION TO WINCH T40D ( CK2311 - ) 1511-127/10
2	811330800	1	DRIVESHAFT	Refer to Page: SKIDDER, LOG\480 SKIDDER, LOG\480 - 480 TO 550-SERIES (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT FRONT AXLE TO TRANSM WR10 ( CI2896 - CE4000) 1512-028/10
3	811157500	1	DRIVESHAFT	Refer to Page: SKIDDER, LOG\480-T SKIDDER, LOG\480-T - 480 TO 550-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT TRANSMISSION TO PILLOW BLOCK ( CK2311 - ) 1512-017/11
4	811087200	1	DRIVESHAFT	Refer to Page: SKIDDER, LOG\480-T SKIDDER, LOG\480-T - 480 TO 550-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT PILLOW BLOCK TO REAR AXLE CABLE T40D WINCH WR7 AXLE ( CK2311 - ) 1512-013/10
5	826184200	1	PILLOW BLOCK - 7C	Refer to Page: SKIDDER, LOG\480 SKIDDER, LOG\480 - 480 TO 550-SERIES (Timberjack < 2000)\PILLOW BLOCK - SEE DRIVESHAFT LAYOUT\PILLOW BLOCK LOWER ( AC4317 - CE4000) 1530-019/11
6	826662700	1	PILLOW BLOCK	Refer to Page: SKIDDER, LOG\480 SKIDDER, LOG\480 - 480 TO 550-SERIES (Timberjack < 2000)\PILLOW BLOCK - SEE DRIVESHAFT LAYOUT\PILLOW BLOCK UPPER ( CI2996 - CM4455) 1530-026/10
7	826811100	1	PILOT	-
8	824888700	1	DISC	-
9	826407100	1	FLANGE - 7C	-
11	840840400	4	NUT*.50-20UNF	-
-	826180300	1	PILLOW BLOCK - 7C W/TAPERED BEARING OPTION	Refer to Page: SKIDDER, LOG\480 SKIDDER, LOG\480 - 480 TO 550-SERIES (Timberjack < 2000)\PILLOW BLOCK - SEE DRIVESHAFT LAYOUT\PILLOW BLOCK LOWER TAPERED BEARING OPTION ( CK2419 - CE4000) 1530-023/10
-	826507600	1	PILLOW BLOCK - 6C W/TAPERED BEARING OPTION	Refer to Page: SKIDDER, LOG\480 SKIDDER, LOG\480 - 480 TO 550-SERIES (Timberjack < 2000)\PILLOW BLOCK - SEE DRIVESHAFT LAYOUT\PILLOW BLOCK LOWER TAPERED BEARING OPTION ( CK2419 - CE4000) 1530-023/10
-	826822300	1	PILLOW BLOCK - UPPER-FROM S/N CM4456	Refer to Page: SKIDDER, LOG\480 SKIDDER, LOG\480 - 480 TO 550-SERIES (Timberjack < 2000)\PILLOW BLOCK - SEE DRIVESHAFT LAYOUT\PILLOW BLOCK UPPER ( CI2996 - CM4455) 1530-026/10

DRIVESHFT LAYOUT CABLE T50 WINCH ( CI2996 - ) 1500-050/12 [1500-050/12]

Нет текстового описания
