DRIVESHFT LAYOUT CABLE T40 WINCH ( AA4152 - AC4316) 1500-028/11 [1500-028/11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

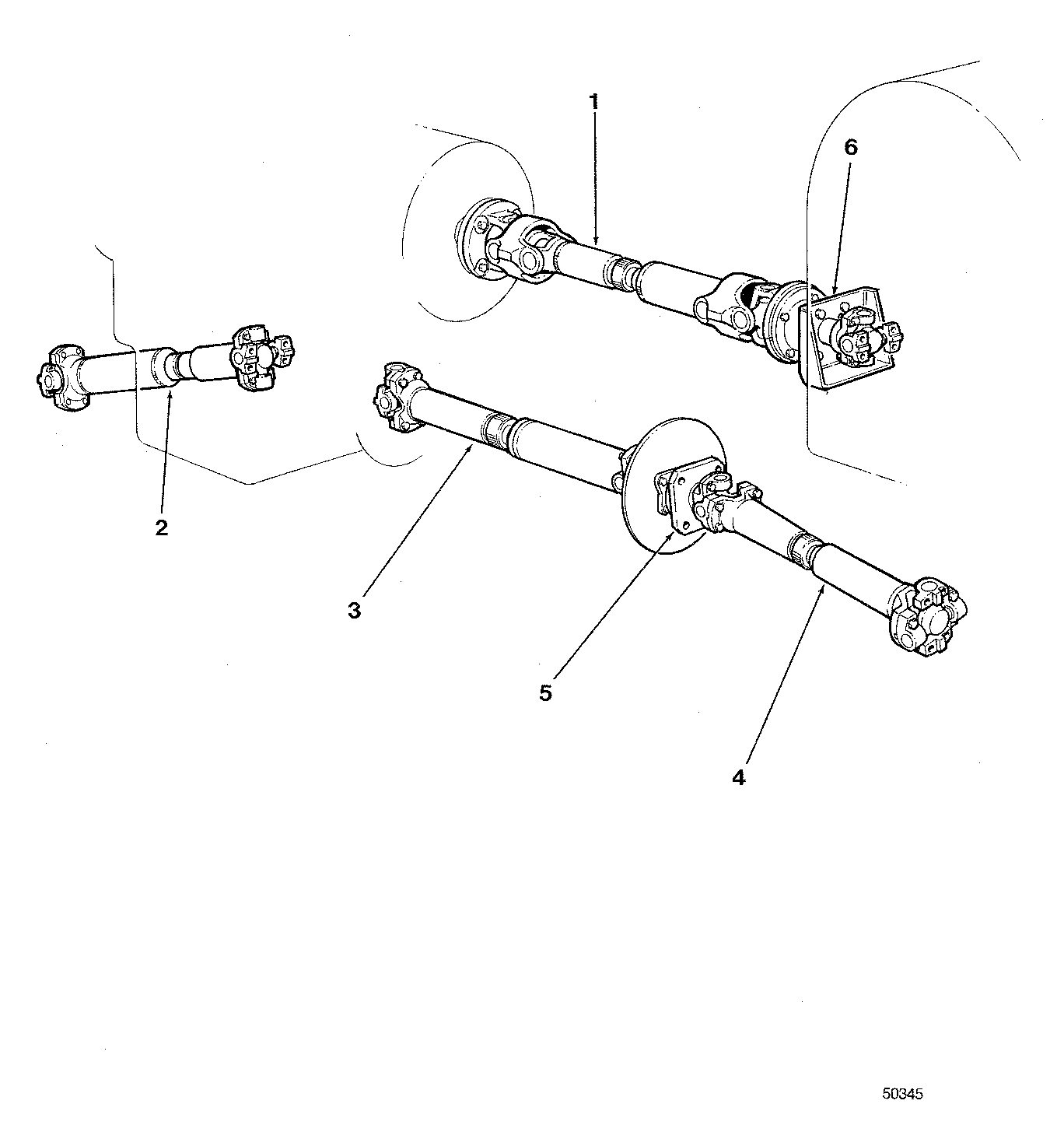

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	811020100	1	DRIVESHAFT	Refer to Page: SKIDDER, LOG\480-T SKIDDER, LOG\480-T - 480 TO 550-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT TRANSMISSION TO WINCH T40D ( CK2311 - ) 1511-127/10
2	811087300	1	DRIVESHAFT	Refer to Page: SKIDDER, LOG\550 SKIDDER, LOG\550 - 480 TO 550-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT FRONT AXLE TO TRANSM 33640 ( AA8491 - NC) 1512-014/10
3	811119600	1	DRIVESHAFT	Refer to Page: SKIDDER, LOG\480 SKIDDER, LOG\480 - 480 TO 550-SERIES (Timberjack < 2000)\DRIVE SHAFT - SEE DRIVESHAFT LAYOUT\DRIVE SHAFT TRANSMISSION TO PILLOW BLOCK ( AA4000 - CE4000) 1512-017/10
4	811087200	1	DRIVESHAFT	Refer to Page: SKIDDER, LOG\480-T SKIDDER, LOG\480-T - 480 TO 550-SERIES (Timberjack < 2000)\DRIVE SHAFT\DRIVE SHAFT PILLOW BLOCK TO REAR AXLE CABLE T40D WINCH WR7 AXLE ( CK2311 - ) 1512-013/10
5	825882100	1	BEARING BLOCK - LOWER	Refer to Page: SKIDDER, LOG\480 SKIDDER, LOG\480 - 480 TO 550-SERIES (Timberjack < 2000)\PILLOW BLOCK - SEE DRIVESHAFT LAYOUT\PILLOW BLOCK LOWER ( AA4000 - AC4316) 1530-019/10
6	-------	1	O-RING	Refer to Page: SKIDDER, LOG\480 SKIDDER, LOG\480 - 480 TO 550-SERIES (Timberjack < 2000)\PILLOW BLOCK - SEE DRIVESHAFT LAYOUT\PILLOW BLOCK UPPER ( AA4152 - CI2995) 1530-015/10

DRIVESHFT LAYOUT CABLE T40 WINCH ( AA4152 - AC4316) 1500-028/11 [1500-028/11]
