Открытый узел

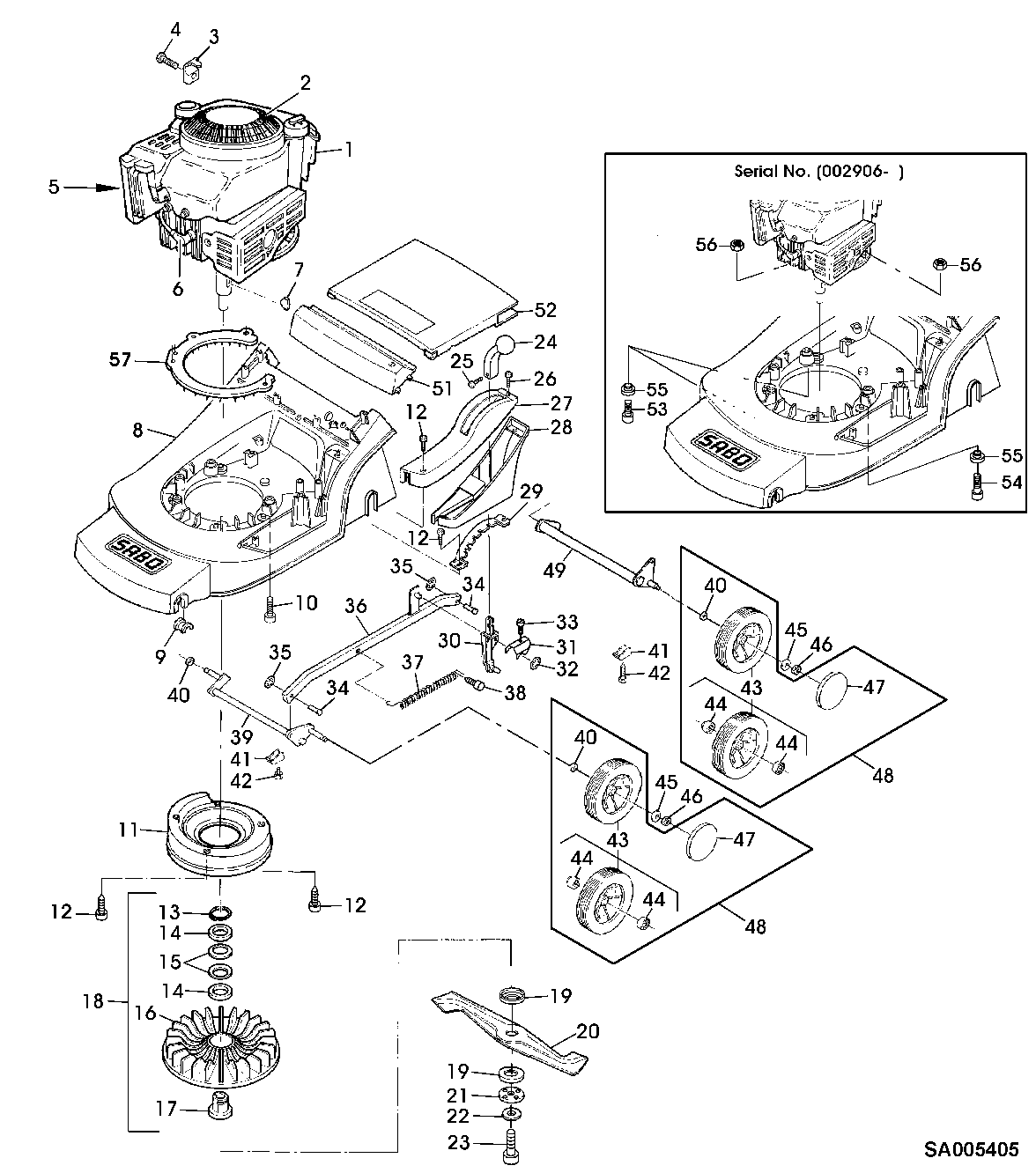

HOUSING,ENGINE, FAN, MOWER DECK, FRONT AND REAR AXLE

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SA26782	1	Gasoline Engine	B AND S 4, 5 HP MODEL 12S802, TYP 0657-01
2	LG691919	1	Guard	(SUB FOR SA26600, SA36658)
3	LG690798	1	Clamp	(SUB FOR SA26799)
4	SA26798	1	Bolt	M5 X 10
4	SA34392	4	Tire And Wheel Assembly	180MM
5	LG491588JD	1	Air Filter	(SUB FOR SA26547)
6	TY6129	1	Spark Plug	(SUB FOR SA16815)
7	SA15967	1	Shaft Key	4 X 6.5MM
8	SAA36335	1	Mower Deck	(SUB FOR SA35191)
9	SA31711	4	Bearing Cap	-
10	SA15578	3	Screw	M10 X 35
11	SA36688	1	Shroud	(SUB FOR SA36108)
12	SA34452	8	Screw	6.0 X 14, DUO TAPTITE CM
13	SA15739	1	Snap Ring	31 X 1.5MM
14	SA11896	2	Washer	-
15	SA15179	2	Disk Spring	(ONLY AVAILABLE AS PACKAGED SETS)
16	SA15180	1	Fan	-
17	SAU10933	1	Flange	(SUB FOR SA35171)
18	SA35172	1	Fan	NLA; ORDER SAA35172; ASSY
18	SAA35172	1	Fan	-
19	SA34368	2	Disk	-
20	SA33214	1	Mower Blade	-
21	SA35170	1	Disk	-
22	SA34499	1	Disk	-
23	SA11866	1	Bolt	NF 3/8" X 44.4MM
24	SA35086	1	Handle	-
25	SA35023	1	Screw	30 X 8MM, EJOT KB
26	SA35503	1	Screw	60 X 20, DUO TAPTITE CM
27	SA34438	1	Shield	-
28	SA35194	1	Orifice	-
29	SA36116	1	Sector	(SUB FOR SA34449)
30	SA34592	1	Lever	-
31	SA36388	1	Clamp	(SUB FOR SA15174)
32	SA34282	1	Push Nut	8MM
33	SA29854	1	Bolt	(ONLY AVAILABLE AS PACKAGED SETS) M5 X 12
34	SA17006	2	Pin Fastener	6H11 X 13.5MM
35	SA12973	2	Push Nut	(ONLY AVAILABLE AS PACKAGED SETS) 6MM
36	SA35193	1	Tie Bar	-
37	SA35273	1	Extension Spring	-
38	SA35516	1	Bolt	60 X 14, DUO TAPTITE CM
39	SAU11287	1	Axle	FRONT (SUB FOR SA34451)
40	SA35229	4	Washer	-
41	SA36261	4	Clamp	(SUB FOR SA34649)
42	SA34450	4	Screw	6.0 X 10, DUO TAPTITE CM
43	SA34392	4	Tire And Wheel Assembly	180MM, (ORD SA35403) FRONT
44	SA33229	8	Ball Bearing	-
45	SA15213	4	Washer	(ONLY AVAILABLE AS PACKAGED SETS) 8.4MM
46	14M7327	4	Lock Nut	(ONLY AVAILABLE AS PACKAGED SETS) M8, (SUB FOR SA11998)
47	SA36555	4	Cover	(SUB FOR SA33231)
48	SA35403	4	Wheel	180MM, ASSY
49	SA34693	1	Axle	REAR
51	SA34434	1	Shield	-
52	SAA35441	1	Flap	-
53	SA15573	2	Screw	M8 X 50
54	SA30647	1	Screw	M8 X 75
55	SA35517	3	Disk	-
56	14M7327	3	Lock Nut	M8, (SUB FOR SA11998)
57	SA34937	1	Ring	-

HOUSING,ENGINE, FAN, MOWER DECK, FRONT AND REAR AXLE
