Counterweight High Pressure Lines, Removal Device

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4629744	1	Valve	-
1	9773186	1	Bracket	-
2	19M8197	2	Cap Screw	M10 X 85, SUB FOR J901085
2	-	2	Part 3	J271085 NLA
2	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR J222010
3	24M7101	2	Washer	11 X 34 X 3 mm, SUB FOR J217083
4	14M7274	2	Nut	M10, SUB FOR J950010
5	19M8011	2	Cap Screw	M12 X 30, SUB FOR J921230
7	A853186	1	Adapter Fitting	-
7	TH101926	1	O-Ring	SUB FOR 4506429
8	9773182	1	Pipe	-
9	A853166	1	Adapter Fitting	-
9	AT318035	1	O-Ring	SUB FOR 4506424
10	T77858	2	O-Ring	SUB FOR 4187308
11	AT318035	1	O-Ring	SUB FOR 4506424
11	A853364	1	Elbow Fitting	-
12	T77857	16	O-Ring	SUB FOR 4138938
13	A852223	1	Elbow Fitting	-
13	957366	1	O-Ring	-
14	4376846	1	Elbow Fitting	-
14	957366	1	O-Ring	-
15	A852423	1	Tee Fitting	-
15	957366	1	O-Ring	-
17	4667389	1	Hose	-
18	4331727	1	Hose	-
19	A852244	1	Elbow Fitting	-
20	4192034	1	Clip	-
21	-	7	Part 28	J271025 NLA
21	19M7402	7	Cap Screw	M10 X 25, SUB FOR J901025
21	24M7346	7	Washer	11 X 20 X 2 mm, SUB FOR J222010
23	4724519	1	Plate	-
24	-	2	Part 32	J271030 NLA
24	19M7662	2	Cap Screw	M10 X 30, SUB FOR J901030
24	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR J222010
26	4217505	1	Adapter	-
26	4201231	1	O-Ring	-
27	24M7051	2	Washer	21 X 37 X 3 mm, SUB FOR A590120
28	4217504	1	Nut	-
29	4250055	1	Hose	-
30	4315207	1	Adapter Fitting	-
31	4316589	1	Nut	-
32	4441431	1	Hose	-
33	N198631	1	Clamp	SUB FOR 4190265
35	4651909	1	Control Valve	-
36	-	3	Part 45	J271290 NLA
36	19M7943	3	Cap Screw	M12 X 90, SUB FOR J901290
36	24M7345	3	Washer	13.500 X 24 X 2.500 mm, SUB FOR J222012
38	A853144	1	Adapter Fitting	-
38	4506418	1	O-Ring	-
39	4285109	1	Tee Fitting	-
39	4506418	1	O-Ring	-
40	4313421	1	Hose	-
41	A852544	1	Tee Fitting	-
41	4506418	1	O-Ring	-
42	A853444	2	Tee Fitting	-
42	4506418	1	O-Ring	-
43	A852333	2	Elbow Fitting	-
43	4297380	1	O-Ring	SUB FOR 4622346, 4509180 OR 4674883
44	4359143	2	Hydraulic Hose	-
45	4345278	1	Hose	-
47	4351101	1	Hose	-
49	FYA40007733	1	Pipe	-
50	8125006	1	Pipe	-
51	4189858	2	Clamp	-
52	-	2	Part 65	SUB FOR J271260
52	19M7363	2	Cap Screw	M12 X 60, SUB FOR J901260
52	24M7345	2	Washer	13.500 X 24 X 2.500 mm, SUB FOR J222012
57	FYA40001839	1	Cover	-
59	4190263	1	Clip	-
60	4219918	1	Isolator	-
61	H77698	5	Tie Band	SUB FOR 4055312
62	4249324	2	Washer	-
63	4674883	2	O-Ring	SUB FOR 4509180
63	4198472	1	Adapter Fitting	-
64	4620787	1	Valve	-
65	4202112	2	Elbow Fitting	-
65	4297380	1	O-Ring	SUB FOR 4622346, 4509180 OR 4674883
67	FYA00016565	1	Valve	-
68	J780612	2	Bolt	-
69	FYA60008701	1	Clamp	Includes Clamp and Plate
71	4506418	1	O-Ring	-
71	A853344	1	Elbow Fitting	SUB FOR 4200580
72	4621470	1	Reducer	-
72	4140469	1	O-Ring	-
80	4623896	1	Hose	-
81	4411128	1	Hydraulic Hose	-
82	4362457	1	Adapter	-
83	4506418	2	O-Ring	-
84	FYA00006354	1	Valve	-
85	A853244	1	Elbow Fitting	-
85	4506418	1	O-Ring	-
86	FXV00001472	1	Hose	-
69A	-	1	Part 81	NSEP
69B	FYA00011088	1	Plate	-

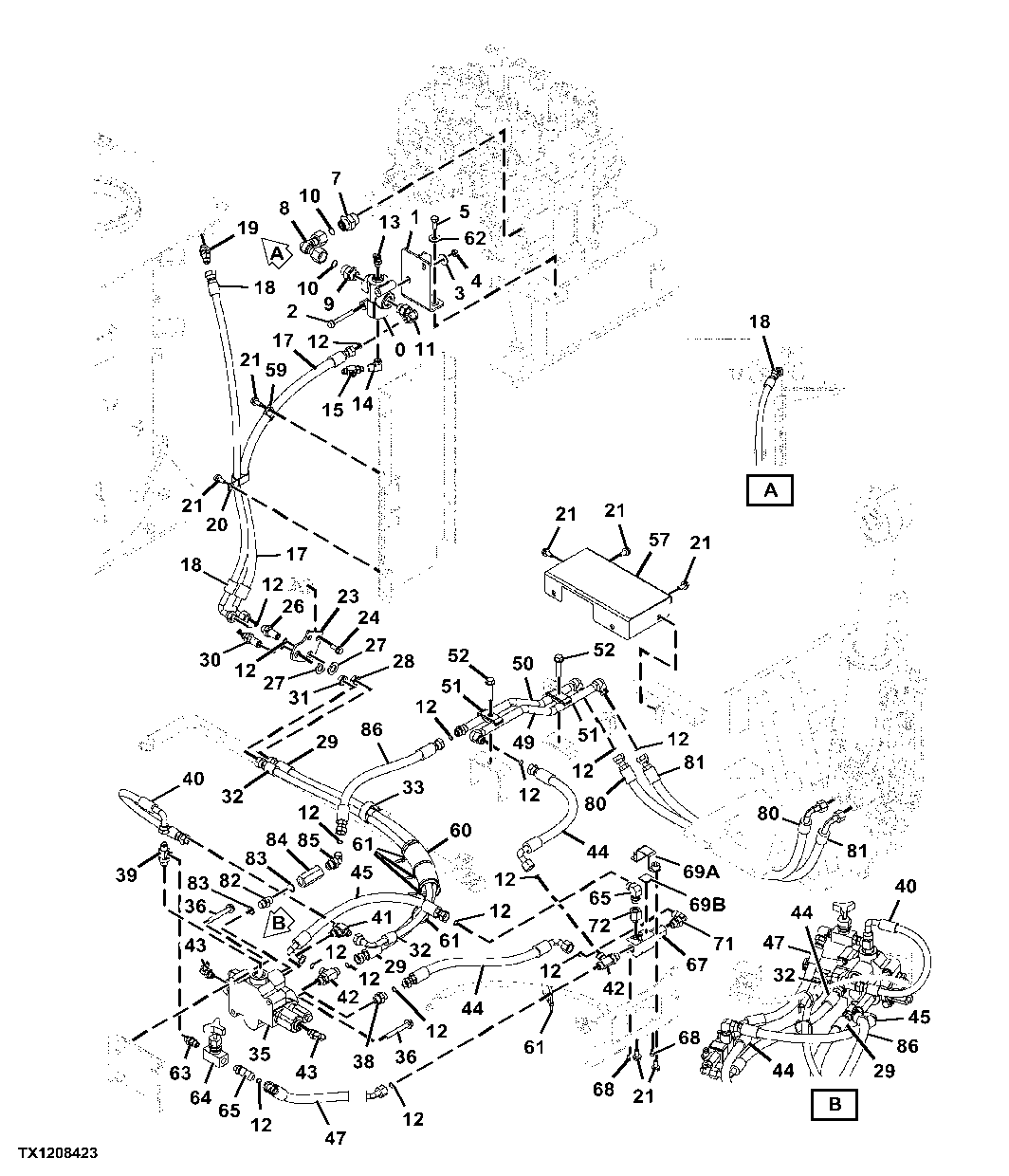

Counterweight High Pressure Lines, Removal Device
