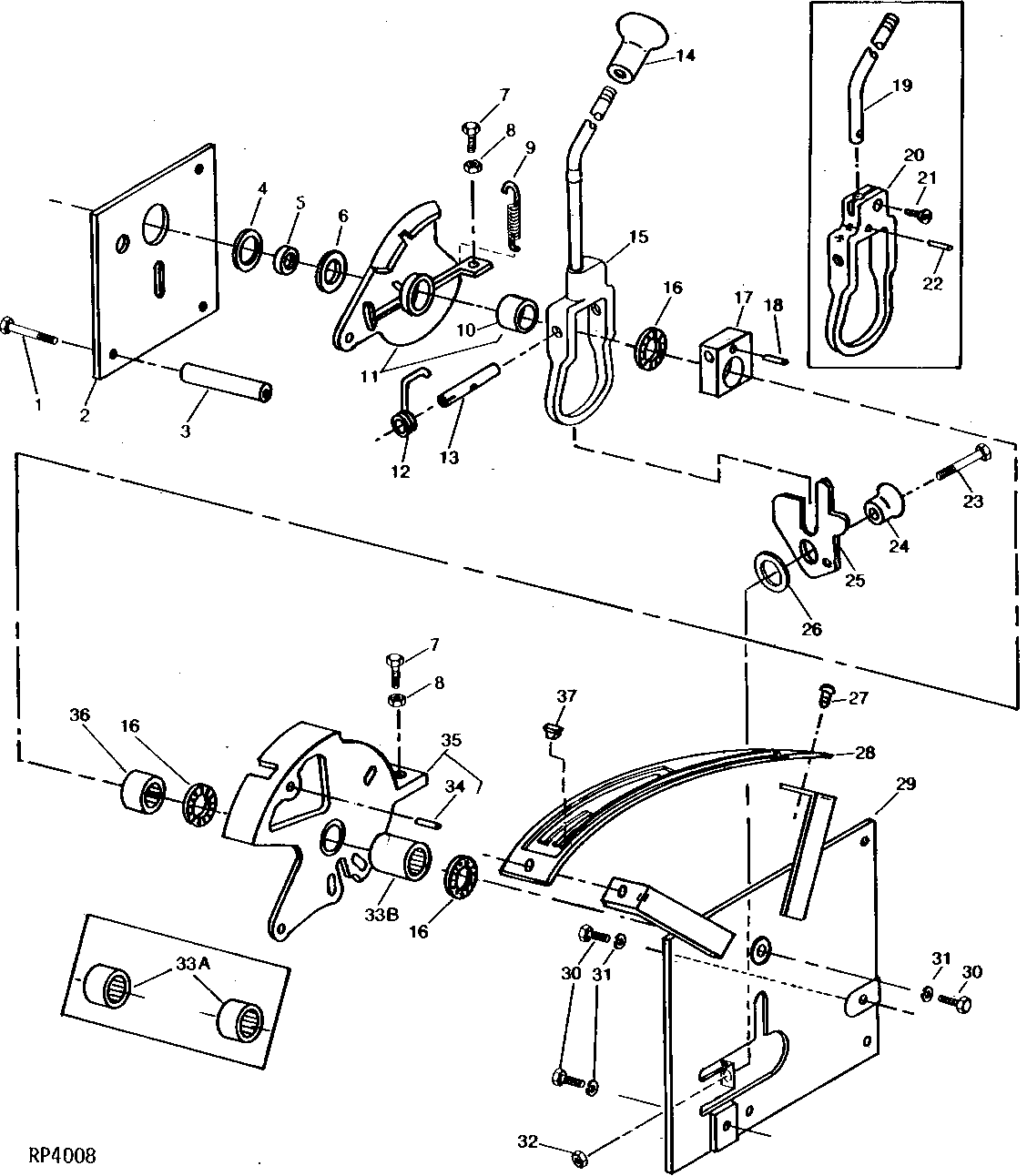

SPEED SELECTOR UPPER CONTROL ASSEMBLY (POWER SHIFT TRANSMISSION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2852	3	Cap Screw	5/16" X 4", HS=8
2	AR94734	1	Support	(NLA)
3	28H3299	3	Spacer	0.364" X 0.540" X 3-7/16", 1/4" X 3-7/16"
4	24H1660	1	Washer	57/64" X 1-3/8" X 0.060"
5	R52138	1	Spacer	-
6	R55158	1	Shim	0.30 MM (.012")
7	19M7298	2	Cap Screw	M8 X 35
8	14M7151	2	Nut	M8
9	T21955	1	EXTENSION SPRING	-
10	R653R	1	BUSHING	-
11	AR99475	1	Quadrant	(PARK LOCK) (MARKED R74222)
12	R74223	1	Spring	-
13	R71895	1	Pin	-
14	R153874	1	Knob	(SUB R76502, THIS APPLICATION)
15	RE20884	1	Yoke	-
16	JD9835	3	Thrust Bearing	-
17	AR99473	1	Pivot	(W/ BUSHING)
18	34M7030	1	Spring Pin	5 X 20 mm
19	R72344	1	Lever	ORDER RE20884
20	R74221	1	Yoke	ORDER RE20884
21	19M7585	1	Screw	M8 X 25, HS=10.9, USE WITH R74221
22	34M7098	1	Spring Pin	(( -XXXXXX) 4650-007308; 4850-005207) 4 X 26 mm
22	34M7102	1	Spring Pin	((XXXXXX- ) 4650-007309; 4850-005208) 5 X 26 mm
23	19M7168	1	Cap Screw	M10 X 30
24	R76187	1	Pivot	-
25	R72343	1	Bellcrank	(REVERSE VALVE OPERATING)
26	R27441	1	Washer	-
27	19M7774	2	Screw	M6 X 12, HS=10.9
28	R71893	1	Plate	-
29	AR94553	1	Support	-
30	19H1731	3	Cap Screw	3/8" X 1"
31	12H304	3	Lock Washer	3/8"
32	14M7274	1	Nut	M10
34	R33028	1	NEEDLE ROLLER	-
35	AR99474	1	Quadrant	(SPEED SELECTOR)
36	JD8828	1	Needle Bearing	-
37	R79861	1	Stop	(FRANCE)
33A	JD9892	2	Needle Bearing	ORDER JD8828
33B	JD8828	1	Needle Bearing	-

SPEED SELECTOR UPPER CONTROL ASSEMBLY (POWER SHIFT TRANSMISSION)
