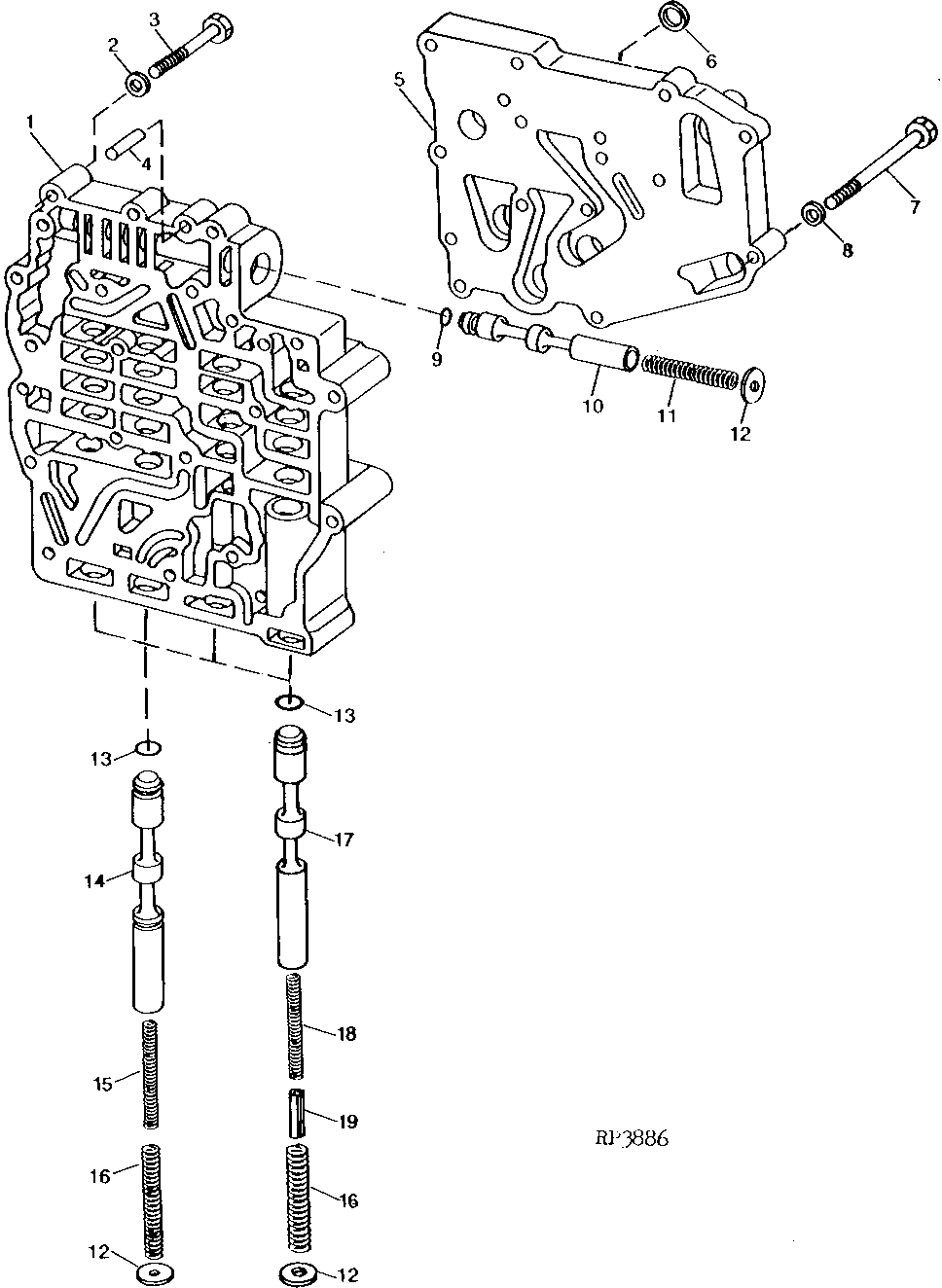

SHIFT VALVE HOUSING AND VALVES (POWER SHIFT TRANSMISSION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R76549	1	Housing	-
2	24M7088	4	Washer	6.600 X 12 X 1.600 mm
3	R78487	4	Cap Screw	HS=8
4	R38295	2	Needle Roller	-
5	R552401	1	Cover	(SUB FOR R81915)
6	T22851	5	WASHER	-
7	R78486	14	Cap Screw	HS=8
8	24M7088	14	Washer	6.600 X 12 X 1.600 mm
9	A3917R	1	O-Ring	-
10	R79799	1	Valve	(PLANETARY SHIFT) (SUB FOR R73332)
11	R73245	1	Spring	-
12	R73246	5	Washer	-
13	R33259	4	O-Ring	-
14	R79800	1	Valve	-
14	R84010	1	Valve	-
15	R78868	1	Spring	(SUB R105352)
16	R78867	4	Spring	(SUB R105352)
17	R79800	4	Valve	SHIFT (SUB FOR R72177) (SUB R99571)
18	R105352	1	Spring	(INNER) (SUB FOR R78868)
18	R105352	1	Spring	(SUB FOR R78868)
18	R105352	3	Spring	(SUB FOR R78868)
18	R105352	3	Spring	(SUB FOR R78868)
19	34H305	1	Spring Pin	7/32" X 2"
19	34H305	1	Spring Pin	7/32" X 2"
19	34H305	3	Spring Pin	7/32" X 2"
19	34H305	3	Spring Pin	7/32" X 2"
..	RE24028	1	Housing	(ASSEMBLED) (( -XXXXXX) 4650-006155; 4850-006227) (SUB FOR AR104165) (SUB RE50974) (ALSO ORDER RE19045, AE24616, AR50796, (5) T22851, 19H2665, 24M7106, 28H2547, 19H2733 AND 12H304)
..	RE24028	1	Housing	((XXXXXX- ) 4650-006156; 4850-006228) (( -XXXXXX) 4650-007205; 4850-007632) (ALSO ORDER (5) T22851) (SUB RE50974)
..	RE24028	1	Housing	((XXXXXX- ) 4650-007206; 4850-007633) (ALSO ORDER (5) T22851) (SUB RE50974) (ORDER COMPONENT PARTS)
..	RE50974	1	Housing	(ALSO ORDER (5) T22851) (SUB FOR RE24028) (ORDER COMPONENT PARTS)
..	RE12537	1	Kit	(TRANSMISSION CONTROL VALVE INSTALLATION KIT) (SUB RE235942)

SHIFT VALVE HOUSING AND VALVES (POWER SHIFT TRANSMISSION)
