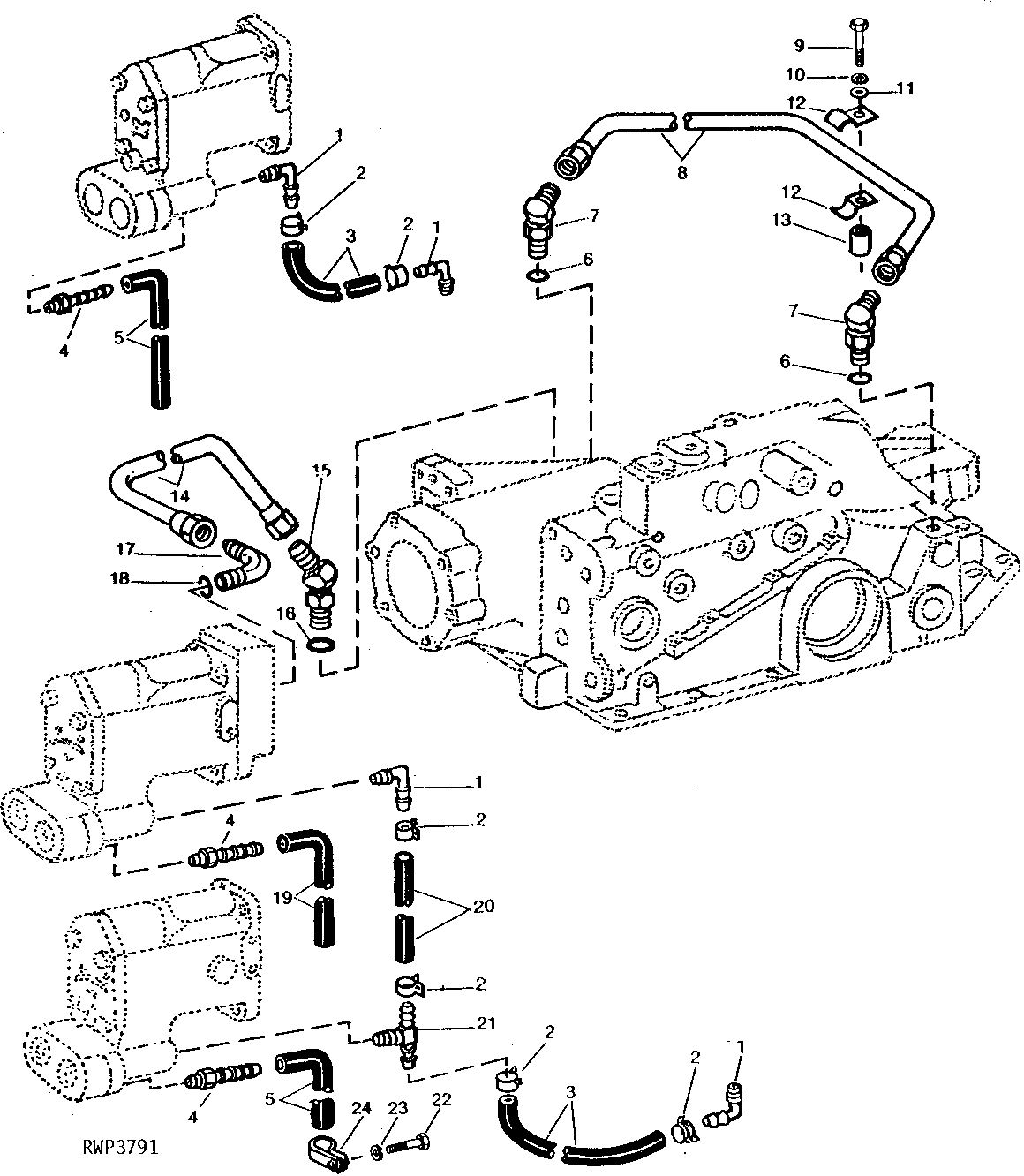

SELECTIVE CONTROL VALVE LINES (TRIPLE SELECTIVE CONTROL)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R71806	4	Elbow Fitting	-
2	R56101	6	Clip	-
3	-	2	Part 3	300MM (11-13/16"), (MAKE FROM M84197)
4	R65785	3	Fitting	-
5	-	2	Part 5	762MM (30"), (MAKE FROM R80623) (ALSO ORDER R81710)
6	F3171R	2	O-Ring	-
7	AT32331	2	Elbow Fitting	-
8	AR93464	1	Oil Line	(( -XXXXXX) 4650-005865; 4850-005901 (PST)) (SUB RE18167) (ALSO ORDER R80669 AND 19H1733)
8	RE18167	1	Oil Line	((XXXXXX- ) 4650-005866; 4850-005902 (PST))
9	19H988	1	CAP SCREW	(( -XXXXXX) 4650-005865; 4850-005901 (PST)) 3/8" X 1-1/4"
9	19H1733	1	CAP SCREW	((XXXXXX- ) 4650-005866; 4850-005902 (PST)) 3/8" X 2-1/2"
10	12H304	1	Lock Washer	(( -XXXXXX) 4650-005865; 4850-005901 (PST)) 3/8"
11	24M7096	1	Washer	(( -XXXXXX) 4650-005865; 4850-005901 (PST)) 10.500 X 18 X 1.600 mm
11	24H1652	1	Washer	((XXXXXX- ) 4650-005866; 4850-005902 (PST)) 13/32" X 11/16" X 7/64"
12	R51655	2	Half Clamp	-
13	28H1878	1	SPACER	(( -XXXXXX) 4650-005865; 4850-005901 (PST)) 0.493" X 0.675" X 7/16"
13	R80669	1	Spacer	((XXXXXX- ) 4650-005866; 4850-005902 (PST))
14	AR95435	1	Oil Line	-
15	AU43288	1	ELBOW FITTING	45°
16	R29936	1	O-Ring	-
17	X16-12C5OX-S	1	Elbow Fitting	(SUB FOR AU42832)
18	R29936	1	O-Ring	-
19	-	1	Part 23	1016MM (40"), (MAKE FROM R80623) (ALSO ORDER R81710)
20	-	1	Part 24	300MM (11-13/16"), (MAKE FROM M84197)
21	R73808	1	Tee Fitting	(SUB H83254)
22	19H1900	2	Cap Screw	5/16" X 3/4"
23	24H1822	2	Washer	11/32" X 7/8" X 1/16"
24	R81710	2	Clamp	(SUB FOR T30785, THIS APPLICATION)

SELECTIVE CONTROL VALVE LINES (TRIPLE SELECTIVE CONTROL)
