SELECTIVE CONTROL VALVE HOUSING, ROCKER, AND OPERATING CAMS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R41155	1	Fitting Plug	-
2	R26375	1	O-Ring	-
3	AR93481	1	Housing	(MARKED R70816)
4	19H2731	1	Cap Screw	7/16" X 1-3/8", (11 USED TRIPLE) (7 USED DUAL)
4	19H1828	1	CAP SCREW	7/16" X 4"
5	12H293	1	Lock Washer	7/16", (12 USED TRIPLE) (7 USED DUAL)
6	R59881	1	Cam	(REGULAR) (SUB AR253736)
7	R70980	1	Cam	(DETENT)
8	R70981	1	Rocker	-
9	22H1025	4	Set Screw	1/4" X 7/8"
10	R70982	2	Retainer	-
11	R40922	1	Back-Up Ring	-
12	F2741R	1	Packing	-
13	R28744	2	Pin	-
14	R59882	1	Cam	(SUB AR253737)
15	R59883	1	Pin Fastener	-
16	R65287	2	O-RING	-
17	34H301	1	Spring Pin	7/32" X 1-1/2"
18	AR86991	1	ARM	(1ST, 2ND SCV)
18	AR54252	1	ARM	(1ST, 2ND SCV)
18	AR103706	1	Arm	(3RD SCV)
18	AR80719	1	Arm	(4TH SCV)
19	19H1791	4	Cap Screw	1/4" X 1-1/4"
20	R73119	1	Cover	(SUB RE16754)
21	R100333	1	Gasket	(SUB FOR R71826)
22	R72653	1	Snap Ring	-
23	R79744	1	Cam	(SUB FOR R71725) (USE WITH RE10653) (SUB RE16754)
24	R78436	1	O-Ring	(SUB FOR R65286, THIS APPLICATION) (USE WITH RE10653)
25	RE10653	1	Lever	(SUB RE16754)
26	RE16754	1	Cover	-

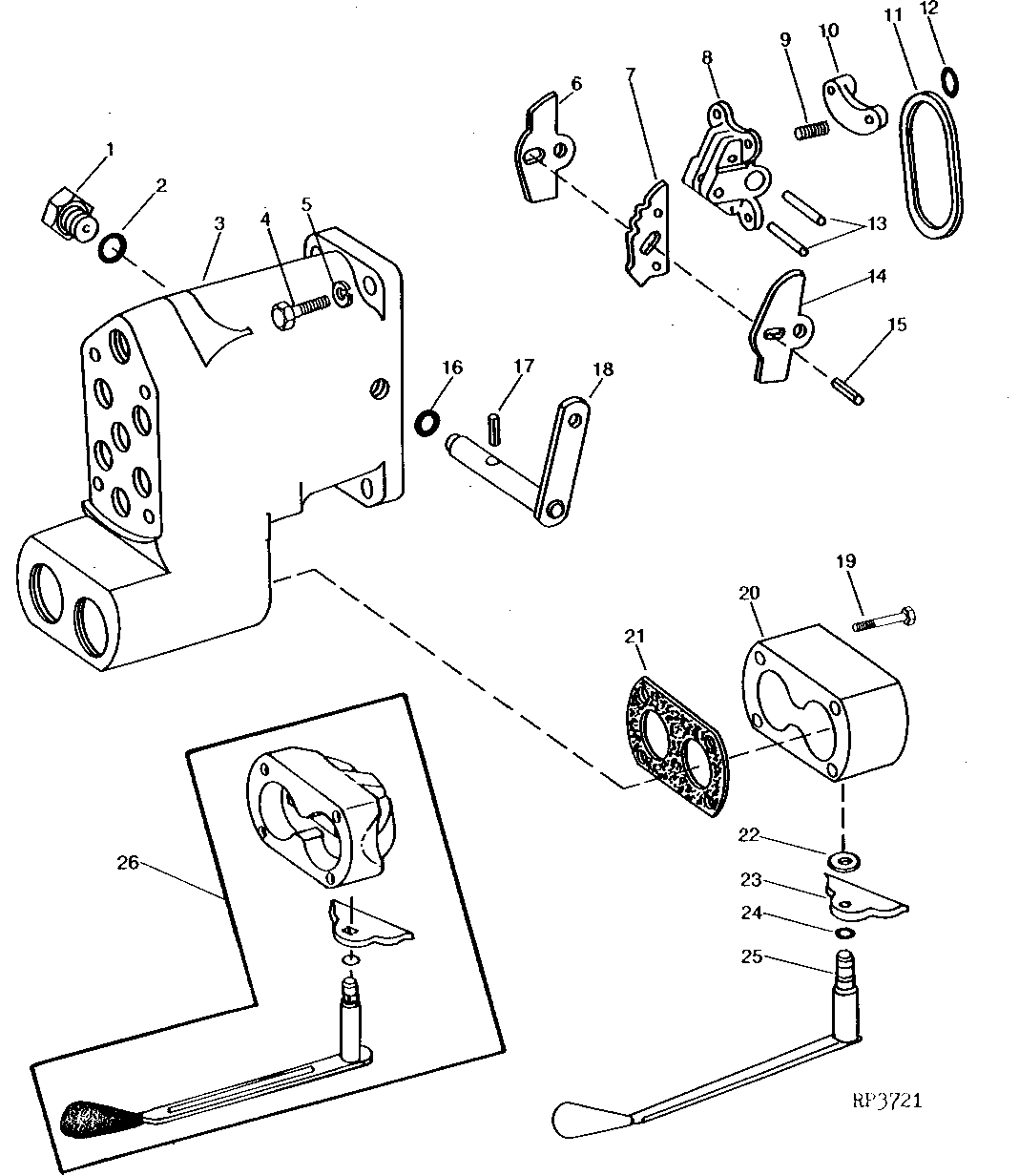

SELECTIVE CONTROL VALVE HOUSING, ROCKER, AND OPERATING CAMS

Нет текстового описания
