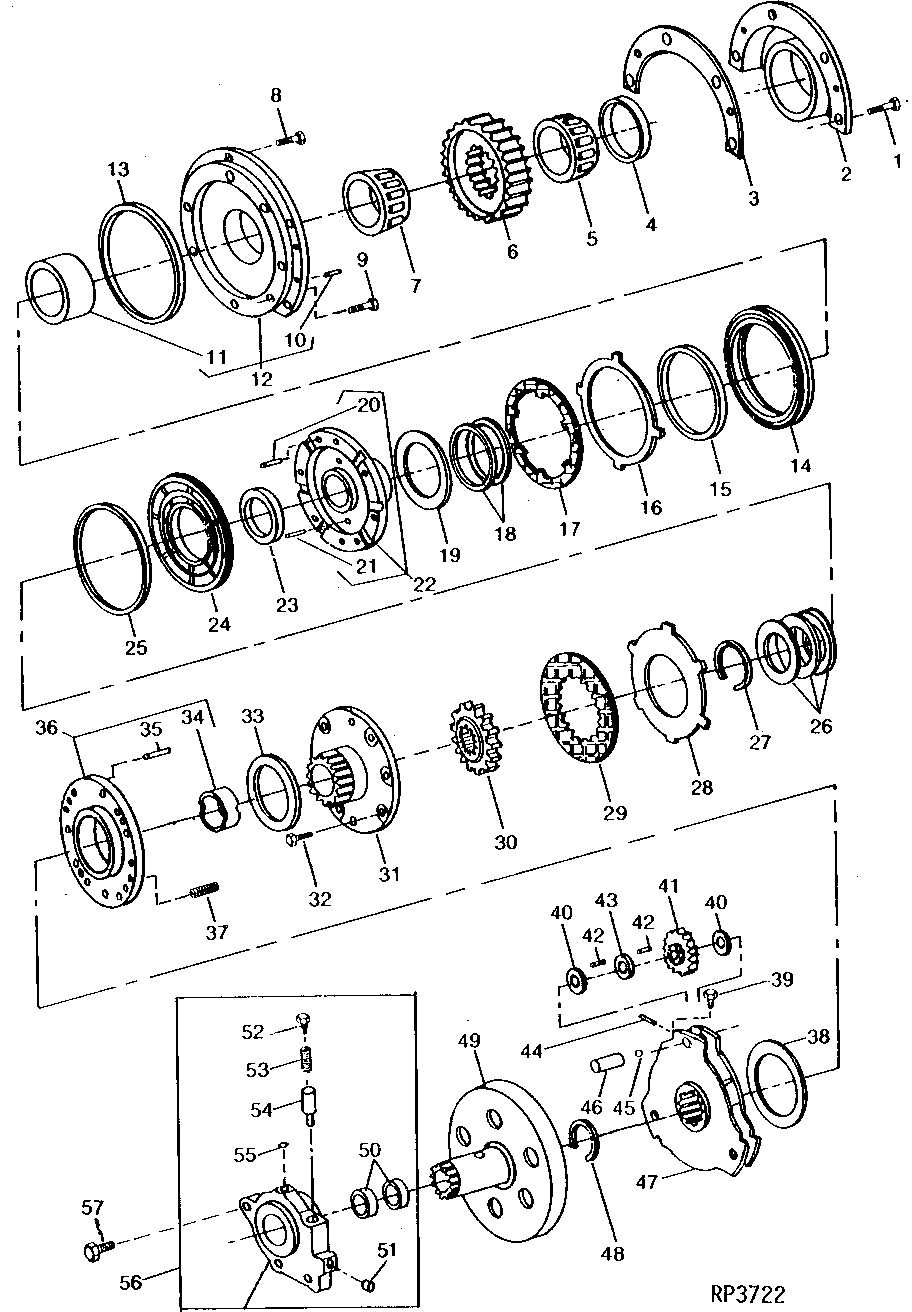

INPUT PLANETARY (POWER SHIFT TRANSMISSION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
25	R74218	1	Washer	(OUTER)
26	R67840	3	Disk Spring	-
27	R33247	1	Snap Ring	-
28	R80813	2	Clutch Plate	(SUB FOR R46391, THIS APPLICATION)
29	RE326609	2	Clutch Disk	(SUB FOR RE239058 OR AR94516)
30	R70918	1	Hub	-
31	R91366	1	Plate	(BACKING)
32	R30165	6	Cap Screw	-
33	R76936	1	Washer	-
34	R51328	1	Bushing	-
35	R33703	2	DOWEL PIN	-
36	AR100134	1	Plate	(BACKING) (MARKED R70878)
37	R59744	8	Spring	(RETURN)
38	R76937	1	Washer	-
39	19H3176	3	Screw	0.164" X 0.380", NO. 8 X 3/8", (HS=180)
40	R66197	6	Thrust Washer	-
41	R70842	3	Pinion	-
42	R71799	186	Needle Roller	-
43	R74372	3	Washer	-
44	R66196	3	NEEDLE ROLLER	-
45	H871R	3	Ball	-
46	R71536	3	Pinion Shaft	(ALSO ORDER (3) H871R)
47	AR95861	1	Planet Pinion Carrier	(MARKED R71481)
48	R26137	1	Snap Ring	(HIGH RANGE DRIVE SHAFT)
49	R70848	1	Shaft	(W/GEAR)
50	R71925	2	Bushing	-
51	R61288	1	Dowel Pin	-
52	R73298	1	Fitting Plug	-
53	T561T	1	Spring	-
54	R75567	1	Pressure Relief Valve	-
55	R495R	1	O-Ring	-
56	AR104590	1	Manifold	(MARKED R71031)
56	R75424	2	Thrust Washer	70 X 94 X 1.570 mm (2.756" X 3.701" X 1/16")
57	R57725	3	Screw	-
..	RE35456	1	Clutch	ASSY. (SUB FOR AR102648) (ALSO ORDER RE12538)
..	RE259916	1	Brake Kit	(ALSO ORDER R83986) (SUB FOR RE12538 OR RE235943)
..	RE259914	1	Clutch	(SEE UPTIME KIT PAGE) (FURNISH COMPONENTS) (SUB FOR RE214488)
