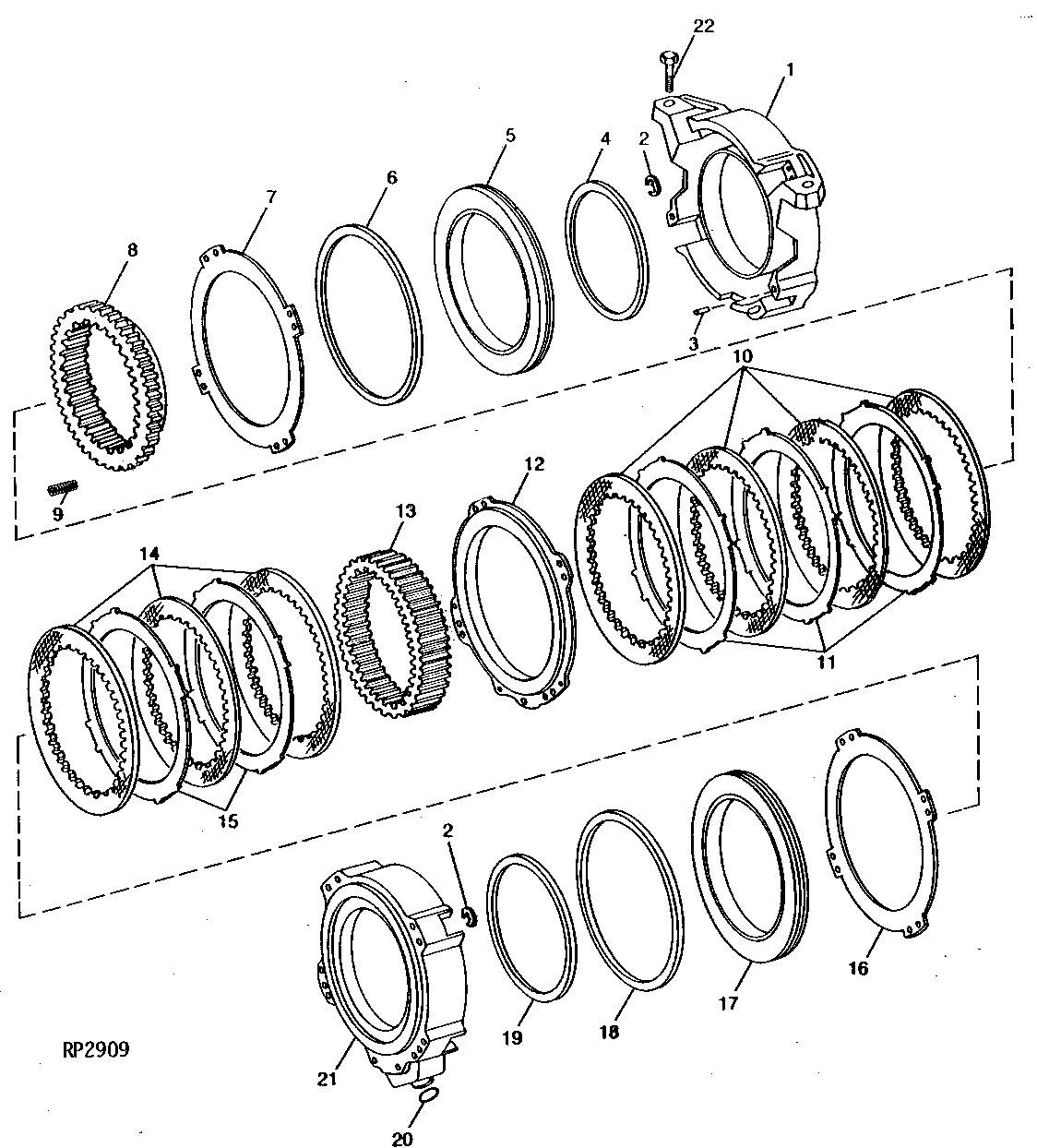

First And Second Planetary Brakes (Power Shift Transmission)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R72041	1	Housing	(First Planetary Brake (B1)) ALSO ORDER (2) R36666
2	R78683	1	Ring	(First Planetary Brake (B1)) (Second Planetary Brake (B2)) 0.64 MM (.025")
3	R26198	2	Dowel Pin	(First Planetary Brake (B1)) ORDER R36666
4	R43377	1	Seal	(First Planetary Brake (B1)) (Inner) SUB R169152
5	R97381	1	Piston	(First Planetary Brake (B1)) SUB FOR R65588
6	R43378	1	Seal	(First Planetary Brake (B1)) (Outer)
7	R46417	1	Plate	(First Planetary Brake (B1)) (Return)
8	R71752	1	Gear	(First Planetary Brake (B1))
9	H343R	8	SPRING	(First Planetary Brake (B1)) (Return)
9	R74852	8	SPRING	(Second Planetary Brake (B2))
9	R26369	8	SPRING	(First Planetary Brake (B1)) (Second Planetary Brake (B2))
10	RE234259	4	Disk With Inner Spline	(First Planetary Brake (B1)) SUB FOR AR94515
11	R46416	3	Plate	(First Planetary Brake (B1)) (Separator)
12	R72042	1	Plate	(First Planetary Brake (B1)) (Second Planetary Brake (B2)) (Backing) ORDER R112384 AND (8) R26369
12	R543998	1	Plate	(First Planetary Brake (B1)) (Second Planetary Brake (B2)) SUB FOR R112384
13	R71753	1	Gear	(Second Planetary Brake (B2))
14	AR94515	3	Disk With Inner Spline	(Second Planetary Brake (B2))
15	R46416	2	Plate	(Second Planetary Brake (B2)) (Separator)
16	R46417	1	Plate	(Second Planetary Brake (B2)) (Return)
17	R97382	1	Piston	(Second Planetary Brake (B2)) SUB FOR R65589
18	R43378	1	Seal	(Second Planetary Brake (B2)) (Outer)
19	R43379	1	Seal	(Second Planetary Brake (B2)) (Inner)
20	R375R	1	O-Ring	(Second Planetary Brake (B2))
21	R72043	1	Housing	(Second Planetary Brake (B2))
22	19H1978	2	Cap Screw	(First Planetary Brake (B1)) 7/16" X 1-1/2"
..	RE214489	1	Transmission	(See Uptime Kit Page) (Furnish Components)

First And Second Planetary Brakes (Power Shift Transmission)
