REAR HYDRAULIC DRAIN LINES (POWER FRONT WHEEL DRIVE) [04D03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

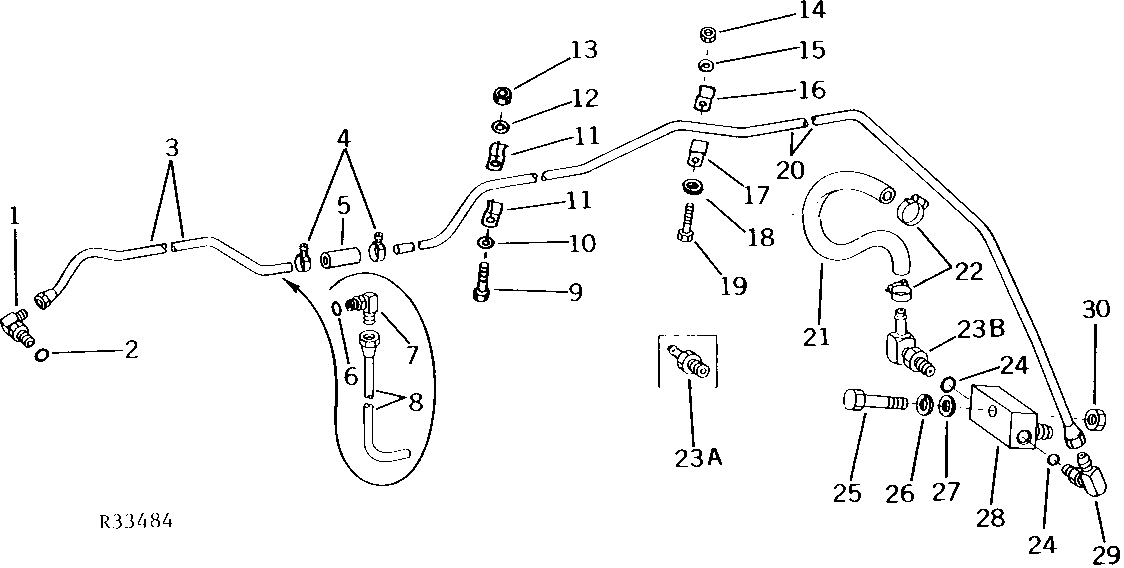

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR27738	1	ELBOW FITTING	(A) 90°
2	R26375	1	O-Ring	(A)
3	AR70705	1	OIL LINE	(A)
4	AR21837	2	Clamp	-
5	-	1	Part 5	54MM (2-1/8") (MAKE FROM TY22327) (SUB FOR R32641)
6	R26448	1	O-Ring	(B)
7	AT35120	1	Elbow Fitting	(B) 90°
8	AR62218	1	OIL LINE	(B)
9	19H1731	1	Cap Screw	3/8" X 1"
10	24H1305	1	Washer	13/32" X 13/16" X 0.065"
11	R31183	2	CLAMP	-
12	12H304	1	Lock Washer	3/8"
13	14H1076	1	Nut	3/8"
14	14H1076	1	Nut	3/8"
15	12H304	1	Lock Washer	3/8"
16	R28538	1	CLAMP	-
17	R28539	1	CLAMP	-
18	24H1305	1	Washer	13/32" X 13/16" X 0.065"
19	19H1800	1	Cap Screw	3/8" X 1-1/2"
20	AR76909	1	OIL LINE	-
21	-	1	Part 21	229MM (9") (MAKE FROM R32639)
21	R66067	1	HYDRAULIC HOSE	-
22	AR48236	2	Clamp	-
24	R26448	2	O-Ring	-
25	19H1765	1	Cap Screw	3/8" X 1-3/4"
26	12H304	1	Lock Washer	3/8"
27	24M7096	1	Washer	10.500 X 18 X 1.600 MM
28	AR80595	1	FITTING	-
29	AT35120	1	Elbow Fitting	90°
30	14H1076	1	Nut	3/8"
23A	R65081	1	FITTING	-
23B	AR85574	1	ELBOW FITTING	90°
