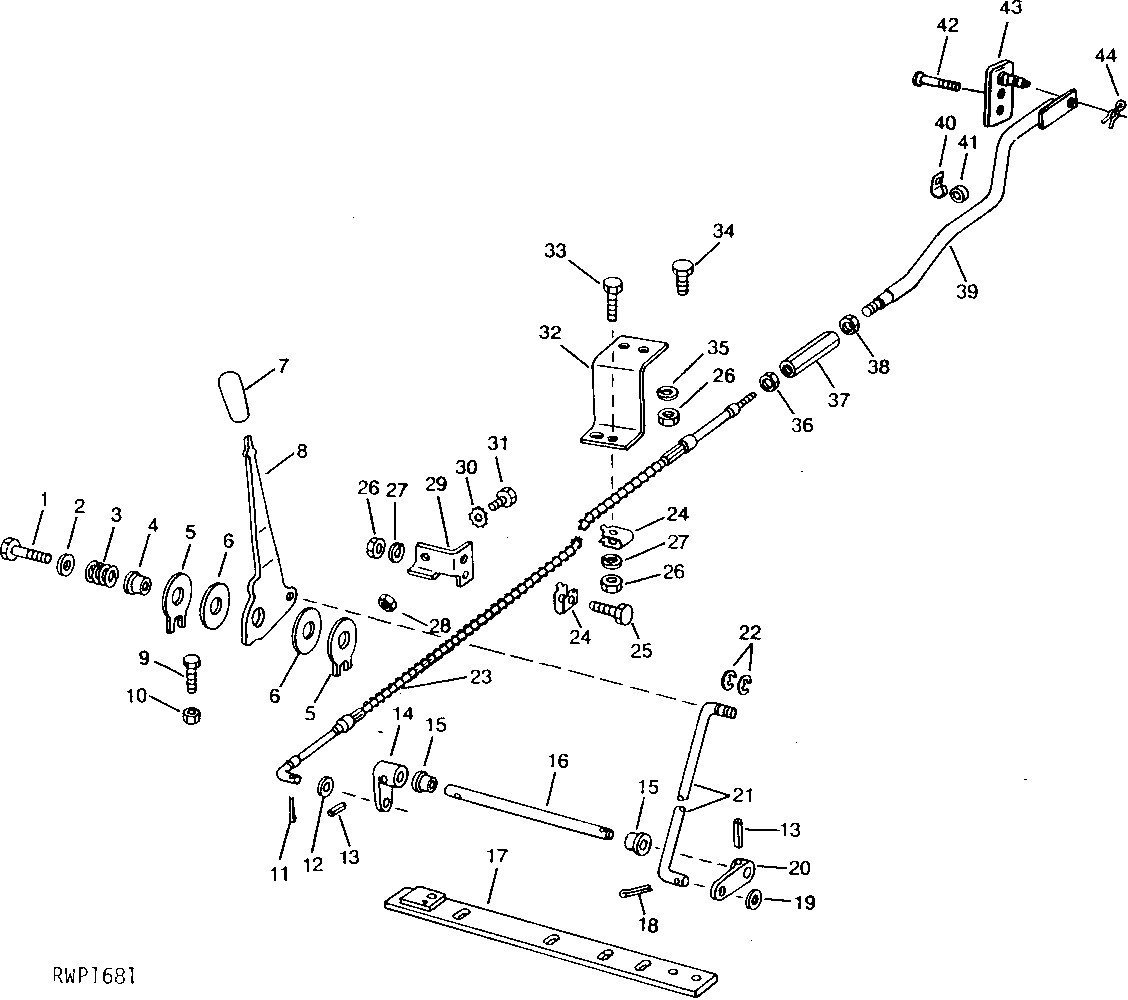

HAND SPEED CONTROL LEVER AND LINKAGES [01H15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R41920	1	Cap Screw	-
2	24M7096	1	Washer	10.500 X 18 X 1.600 MM
3	R31271	1	Compression Spring	-
4	R50227	1	Round Retainer	-
5	R52117	2	Washer	-
6	R105814	2	Washer	(SUB FOR R50226)
7	R137740	1	Knob	(SUB FOR R50506, THIS APPLICATION) (SUB R161383)
8	R75078	1	Lever	(SUB FOR R50505)
9	19H2915	1	CAP SCREW	5/16" X 1-1/4"
10	14H611	1	Nut	5/16"
11	11M7077	1	Cotter Pin	0.063" X 0.984"
12	B1664R	1	SHIM	-
13	34H279	2	SPRING PIN	3/16" X 13/16"
14	R51930	1	Arm	-
15	R41076	2	Grommet	-
16	R50219	1	Pin Fastener	-
17	AR56643	1	Strap	-
18	11M7081	1	Cotter Pin	0.098" X 0.787"
19	24H1289	1	Washer	21/64" X 5/8" X 0.049"
20	R50225	1	ARM	-
21	R54487	1	ROD	-
22	R72653	2	Snap Ring	(SUB FOR M2396T)
23	RE53286	1	PUSH PULL CABLE	-
24	R26870	2	CLAMP	-
25	19H1849	1	Cap Screw	5/16" X 1-1/4"
26	14H785	5	Nut	5/16"
27	12H303	4	Lock Washer	5/16"
28	14H1076	1	Nut	3/8" HS, SAE 8
29	AR86977	1	Bracket	(SUB FOR R51784)
30	12H310	1	Lock Washer	3/8"
31	19H1732	1	Cap Screw	3/8" X 1-1/4"
32	R54282	1	Bracket	-
33	19H1849	1	Cap Screw	5/16" X 1-1/4"
34	19H1900	2	Cap Screw	5/16" X 3/4"
35	12H303	1	Lock Washer	5/16"
36	14H649	1	Nut	1/4"
37	R52422	1	Turnbuckle	-
38	14H1025	1	Nut	1/4"
39	RE11415	1	Shifter Rod	(SUB FOR AR73603)
40	R53620	1	Bracket	-
41	R45537	1	Grommet	-
42	19M8826	2	Screw	M6 X 16
43	AR81002	1	Lever	-
44	R47646	1	Spring Locking Pin	-

HAND SPEED CONTROL LEVER AND LINKAGES [01H15]
