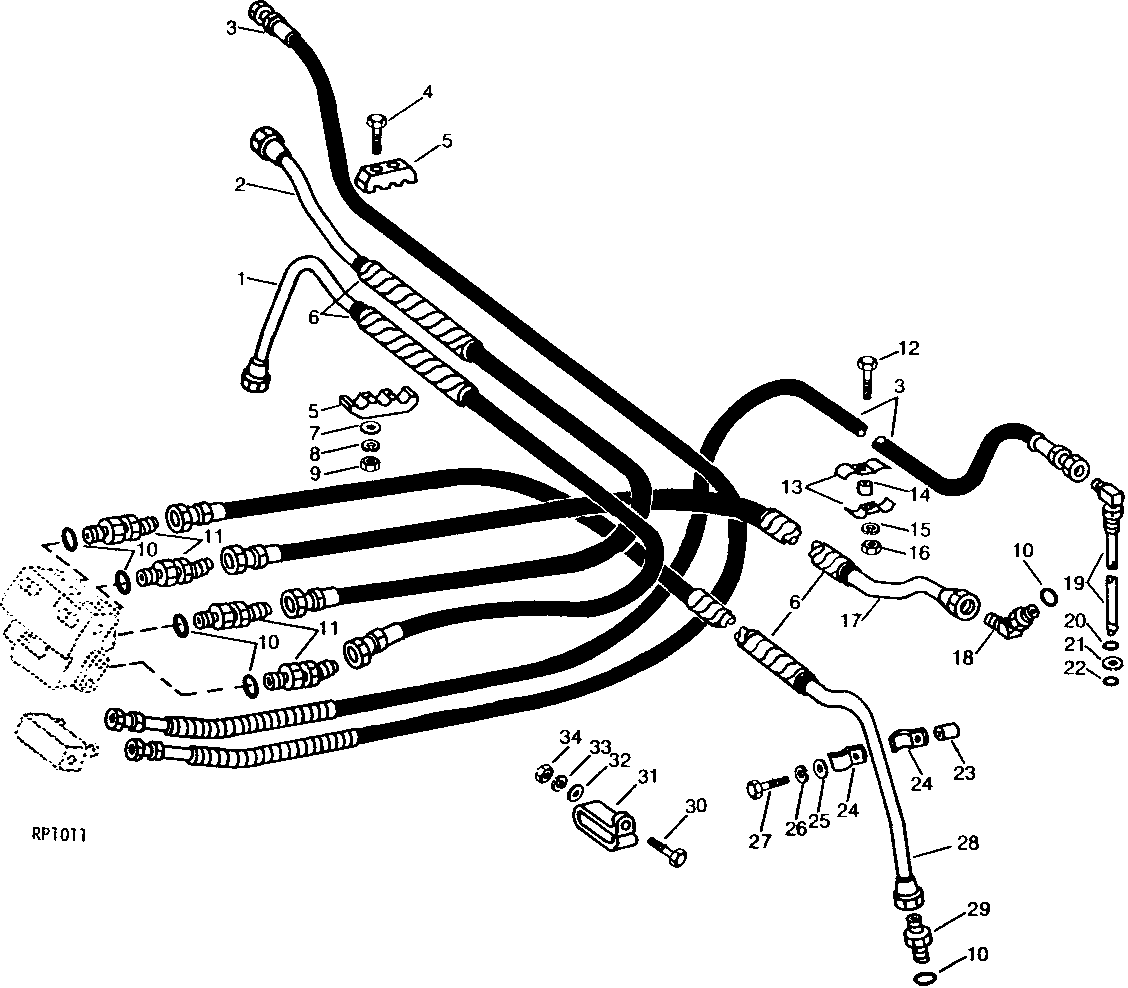

FRONT HYDRAULIC LINES (POWER FRONT WHEEL DRIVE) [04D01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR82268	1	HOSE	-
2	AR82266	1	HOSE	-
3	AR82265	2	HYDRAULIC HOSE	-
4	19H2762	4	Cap Screw	5/16" X 2-1/4"
5	R65208	4	CLAMP	(SUB R65207)
6	R67366	4	GUARD	(SUB R72341)
7	24H1289	8	Washer	21/64" X 5/8" X 0.049"
8	12H303	4	Lock Washer	5/16"
9	14H785	4	Nut	5/16"
10	U12547	8	O-Ring	-
11	AR63210	4	ELBOW FITTING	-
12	19H1765	2	Cap Screw	3/8" X 1-3/4"
13	R65206	4	CLAMP	-
14	28H1521	2	Spacer	3/8" X 9/16"
15	12H304	2	Lock Washer	3/8"
16	14H1076	2	Nut	3/8"
17	AR82267	1	HOSE	-
18	AR47803	2	ELBOW FITTING	60°
19	AR53447	2	ELBOW FITTING	90°
20	R61462	2	RING	-
21	R61463	2	Back-Up Ring	-
22	R26448	2	O-Ring	-
23	28H1524	2	Spacer	3/8" X 7/8"
24	R38323	4	CLAMP	-
25	24M7096	1	Washer	10.500 X 18 X 1.600 MM
26	12H304	2	Lock Washer	3/8"
27	19H1765	2	Cap Screw	3/8" X 1-3/4"
28	AR82269	1	HOSE	-
29	R27267	2	Fitting	-
30	19H2021	4	Cap Screw	3/8" X 5/8"
30	19H2021	2	Cap Screw	3/8" X 5/8"
31	R65207	2	Clamp	-
31	R65207	4	Clamp	-
32	24H1305	2	Washer	13/32" X 13/16" X 0.065"
32	24H1305	4	Washer	13/32" X 13/16" X 0.065"
33	12H304	2	Lock Washer	3/8"
33	12H304	4	Lock Washer	3/8"
34	14H1076	2	Nut	3/8"
34	14H1076	4	Nut	3/8"
..	R44302	1	Tie Band	-

FRONT HYDRAULIC LINES (POWER FRONT WHEEL DRIVE) [04D01]
