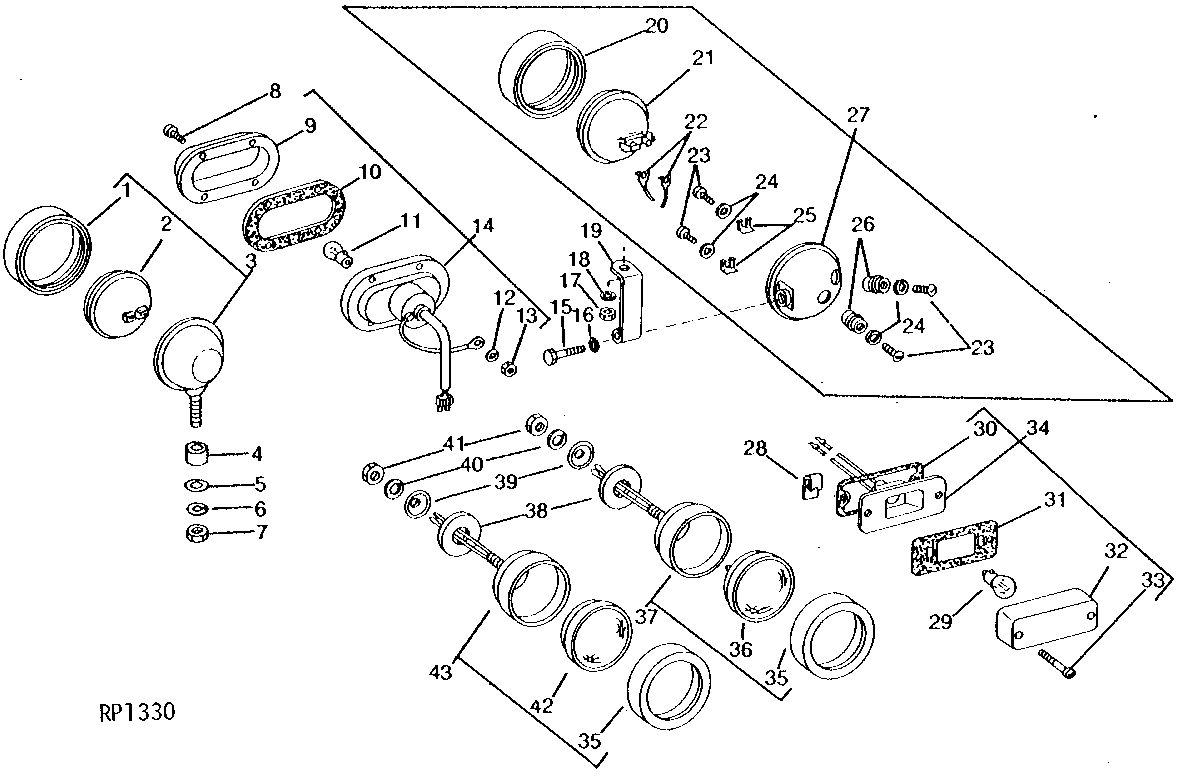

FRONT AND REAR LAMPS AND WARNING LAMP (ROLL-GARD) [02D18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R31250	2	BEZEL	(B)
1	R30182	2	BEZEL	(A)
1	R71232	2	Bezel	(C)
2	AR104119	2	Headlight	(C) (HALOGEN) (SUB FOR AT25451)
3	RE19079	2	Lamp	(A) (C) (12-VOLT) (SUB FOR AR85260)
4	E41563	2	Bushing	(SUB 12H301 AND (2) 24M7047)
5	E41564	2	Washer	-
6	12H301	2	Lock Washer	1/2"
7	14H856	2	Nut	1/2"
8	R55933	8	Screw	-
9	R45936	2	Lens	-
10	R45937	2	Gasket	-
11	AR48041	2	Bulb	(12-VOLT)
12	12M7084	1	Lock Washer	0.169"
13	14H605	1	Nut	0.164"
14	AR78825	2	Tail Lamp	-
15	19H2644	2	Cap Screw	1/2" X 2-1/2"
16	12H301	2	Lock Washer	1/2"
17	14H1040	2	Nut	1/2"
18	12H301	2	Lock Washer	1/2"
19	R59160	2	BRACKET	-
20	R30182	2	BEZEL	(A)
20	R31250	2	BEZEL	(B)
20	R71232	2	Bezel	(C)
21	AF3892R	2	Bulb	(12-VOLT)
21	AR104119	2	Headlight	(USE WITH RE19075)
22	-	4	Part 27	165MM (6-1/2") (MAKE FROM R66319 AND (2) R32016)
23	21H1293	8	SCREW	0.164" X 5/16"
24	12M7084	8	Lock Washer	0.169"
25	A2899R	4	SPRING	(B)
26	R30181	4	PLATE	(A)
26	AA3495R	4	SUPPORT	(B)
27	RE19075	2	Floodlamp	(A) (C) (12-VOLT) HALOGEN, (SUB FOR AR85259 OR RE10961)
28	R99350	8	Nut	(SUB FOR R53528, THIS APPLICATION)
29	AD2062R	4	Bulb	-
30	R61179	4	Gasket	-
31	R61179	4	Gasket	-
32	R54779	4	Lens	-
33	R54781	8	Screw	-
34	AR60250	4	Lamp	WARNING
35	R30182	4	BEZEL	(A)
35	R31250	4	BEZEL	(B)
35	R71232	4	Bezel	(C)
36	RE25125	2	Dual Beam Headlamp	(SUB FOR RE93335 OR AR48723)
37	RE25126	1	Dual Beam Headlamp	R.H. (SUB FOR AR85257 OR RE19081)
37	RE25127	1	Dual Beam Headlamp	L.H. (SUB FOR AR85257 OR RE19082)
38	R48663	4	WASHER	-
39	F2935R	4	WASHER	-
40	12H301	4	Lock Washer	1/2"
41	14H1040	4	Nut	1/2"
42	AR104119	2	Headlight	(HALOGEN) (SUB FOR AT25451)
43	RE19080	2	Floodlamp	(12-VOLT) (HALOGEN) (SUB FOR AR85258 OR RE10964)

FRONT AND REAR LAMPS AND WARNING LAMP (ROLL-GARD) [02D18]
