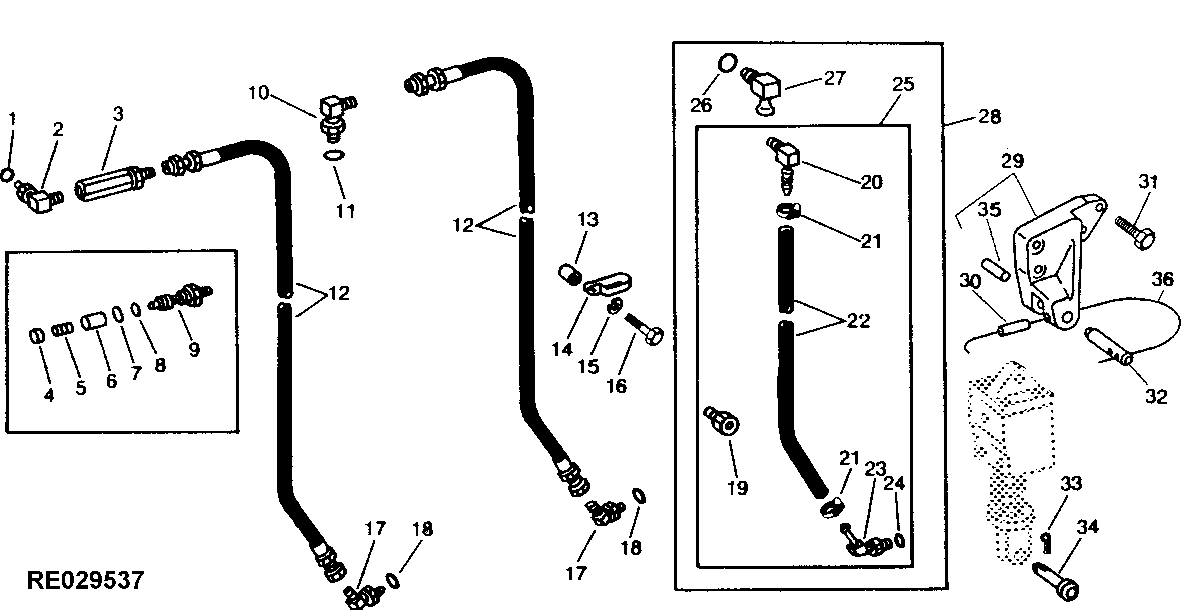

DRAFT SENSING CYLINDER BRACKET AND LINES [04E02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26375	1	O-Ring	(USE WITH R81742)
1	R26448	1	O-Ring	-
2	AT46806	1	Elbow Fitting	(USE WITH R81742)
2	AR58184	1	ELBOW FITTING	90°
3	AR85480	1	Housing	FITTING NOT INCLUDED
4	R49297	1	DISK	-
5	R39228	1	SPRING	-
6	R42684	1	STRAINER	-
7	R28776	1	O-Ring	-
8	R26375	1	O-Ring	-
9	R65658	1	Fitting	-
10	AR58184	1	ELBOW FITTING	90°
11	R26448	1	O-Ring	-
12	AR78832	2	HYDRAULIC HOSE	-
13	28H1532	1	Spacer	3/8" X 2"
14	R49921	1	Clamp	-
15	12H304	1	Lock Washer	3/8"
16	19H1944	1	Cap Screw	3/8" X 2-3/4"
17	AR70602	2	Elbow Fitting	60°
18	R26286	2	O-Ring	-
19	R67491	1	Bolt	(A) (ORDER AR87914 OR AR91462)
19	R67491	1	Bolt	(A) (ORDER AR87914 OR AR91462)
20	T28077	1	Elbow Fitting	(A) 90°
20	T28077	1	Elbow Fitting	(A)
21	AR48236	2	Clamp	(A)
22	-	1	Part 26	(A) 265 MM (10 1/2") (MAKE FROM TY22559) (SUB FOR R67488 OR TY22418)
23	AR87917	1	Hose Fitting	(A)
24	R26287	1	O-Ring	(A)
25	AR87914	1	Hose Kit	(A)
26	R26286	1	O-Ring	-
26	R26286	1	O-Ring	-
27	AR87915	1	Elbow Fitting	90°
27	AR87915	1	Elbow Fitting	90°
28	AR91462	1	Kit	-
28	AR91462	1	Kit	-
29	AR70626	1	Bracket	(MARKED R57819)
30	34H291	1	SPRING PIN	3/16" X 2-1/8"
31	19H1800	2	Cap Screw	3/8" X 1-1/2"
31	19H1726	2	Cap Screw	3/8" X 2-1/4"
32	R57820	1	Shear Pin	-
33	11M7084	1	Cotter Pin	5 X 25 MM
34	R63736	1	Pin Fastener	-
35	U16334	1	Dowel Pin	-
36	-	1	Part 44	153MM (6")
