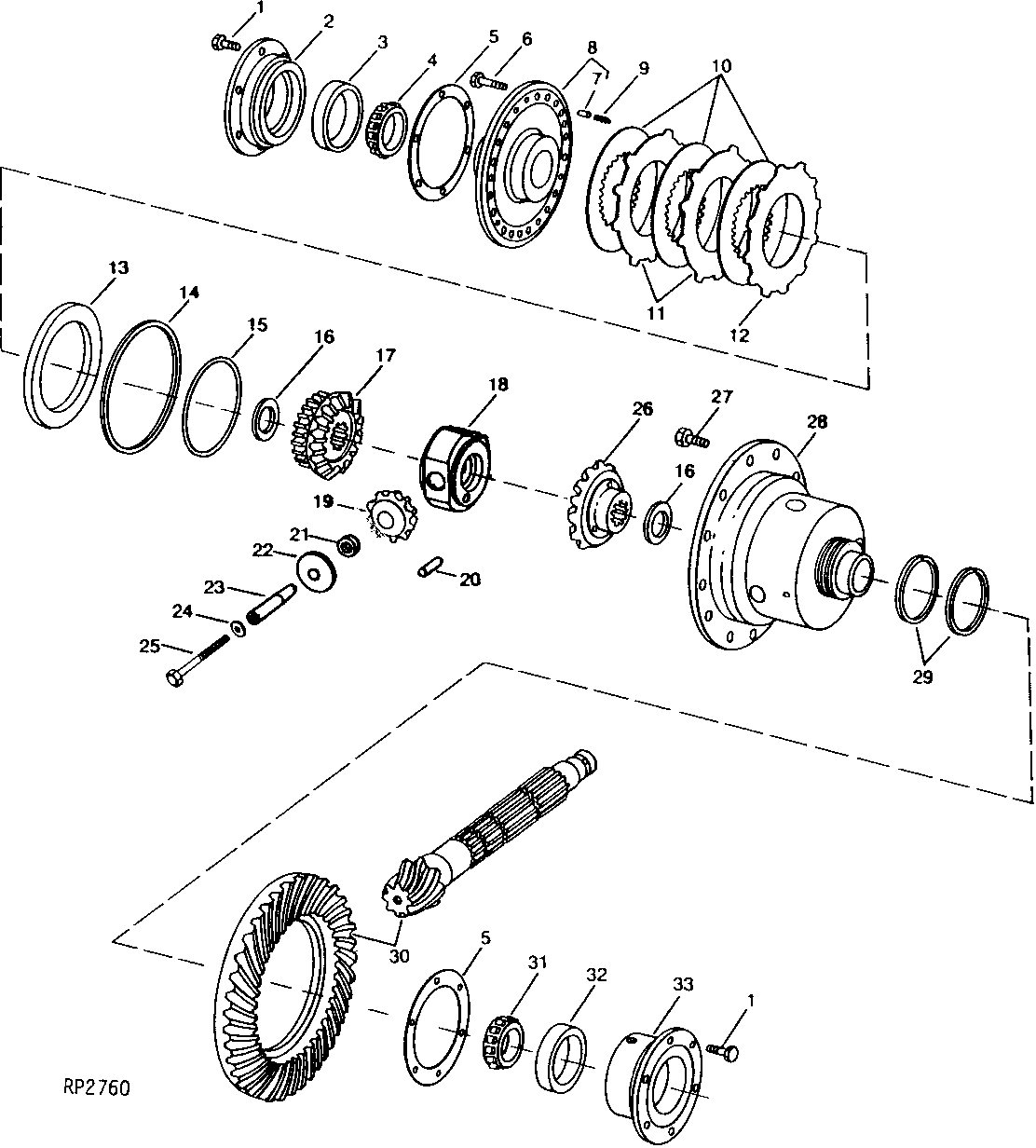

DIFFERENTIAL (QUAD-RANGE) (TRACTOR SERIAL NO. 018718- ) [03G07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R52634	12	Cap Screw	(SUB FOR R41049)
2	R73274	1	Bearing Housing W/O Bearing	(SUB FOR R58404)
3	JD8298	1	Bearing Cup	-
4	JD8962	1	Bearing Cone	-
5	R35501	1	Shim	0.08MM (.003")
5	R35502	1	Shim	0.13MM (.005")
5	R35503	1	Shim	0.25MM (.010")
6	R43369	12	Self-Locking Screw	(SUB FOR R42407)
7	34H311	3	Spring Pin	1/4" X 7/8"
8	AR80476	3	COVER	(MARKED R58645) (SUB R94631 AND (3) 34H311)
9	R34863	1	SPRING	-
10	AR88550	3	Disk	(SUB (3) RE29429, R43340 AND (2) R43343)
11	R43343	2	Clutch Plate	-
12	R43340	1	Plate	-
13	R43337	1	Piston	-
14	R43339	1	Washer	-
15	R46004	1	Packing	-
16	R72586	2	Thrust Washer	(SUB FOR R52157 OR R66788)
17	R90869	1	Bevel Gear	(SUB FOR R52156 OR R66317) (SUB R112169 AND R112834)
18	R93019	1	Hub	(SUB FOR R67781) (SUB (3) R133584, R134268 AND (3) R131865)
19	R67784	3	Pinion	(SUB R134733)
20	R55081	54	Needle Roller	-
21	R68167	3	Washer	-
22	R68166	3	Thrust Washer	-
23	R67782	3	Shaft	(SUB (3) R133584, R134268 AND (3) R131865)
24	R57696	3	Washer	-
25	R89837	3	Cap Screw	(SUB FOR R71309)
26	R64257	1	Bevel Gear	(SUB FOR R52155) (SUB R109489 AND R112834)
27	R43368	12	Cap Screw	-
28	AR88775	1	Housing	(A)
28	400R	2	Ball	-
28	R68165	1	Housing	-
29	R36881	2	Ring	-
30	AR74824	1	GEAR	(MATCHED SET) (MARKED R61544 AND R58407)
31	JD9019	1	BEARING CONE	-
32	JD8214	1	Bearing Cup	(INCLUDES R73274 AND JD8298)
33	R43345	1	Bearing Housing W/O Bearing	-
..	AR95440	1	Bearing Housing W/O Bearing	-

DIFFERENTIAL (QUAD-RANGE) (TRACTOR SERIAL NO. 018718- ) [03G07]
