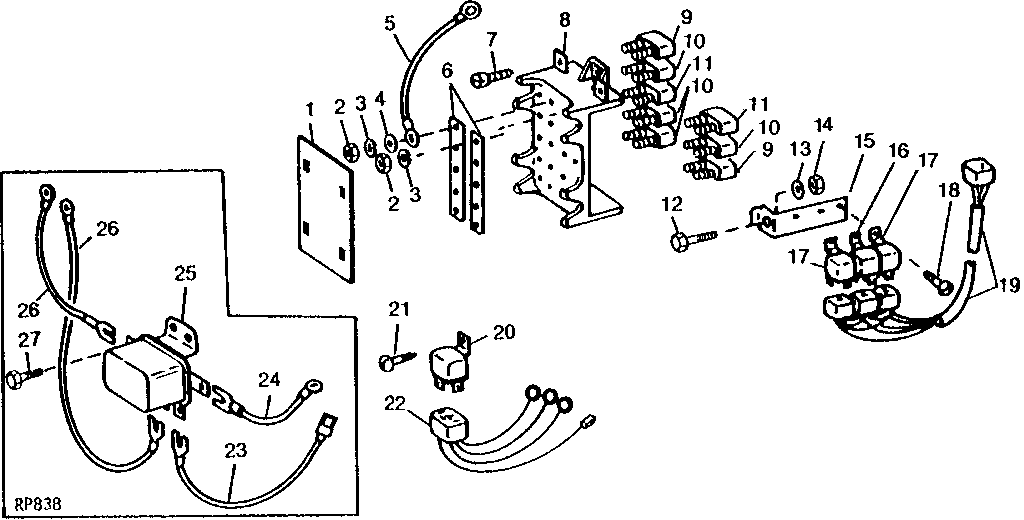

CIRCUIT BREAKERS AND ACCESSORY RELAY (POWER FRONT WHEEL DRIVE) [02C09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R63462	1	COVER	-
2	14H631	16	Nut	0.190"
3	12M7060	16	Washer	0.209"
4	24H1283	8	Washer	7/32" X 1/2" X 0.049"
5	AR72391	1	WIRING LEAD	-
6	R63461	2	JUMPER	-
7	R52760	2	Screw	-
8	R78095	1	SUPPORT	(SUB FOR R63460) (SUB RE16963)
9	AR49352	2	Circuit Breaker	30 AMP, (ALSO ORDER R68607) (UNLESS PREVIOUSLY INSTALLED)
10	AR56671	4	CIRCUIT BREAKER	20 AMP, (ALSO ORDER R68607) (UNLESS PREVIOUSLY INSTALLED)
10	AN150015	1	Circuit Breaker	30 AMP, (BLOWER) (REPLACEMENT INNER ROOF)
11	AR70052	2	CIRCUIT BREAKER	10 AMP
12	19H2284	1	Cap Screw	3/8" X 7/8"
13	12H304	1	Lock Washer	3/8"
14	14H1076	1	Nut	3/8"
15	R65630	1	BRACKET	-
16	AR84133	1	RELAY	-
17	AR74411	2	Relay	-
18	37H91	3	Screw	0.190" X 1/2"
19	AR84131	1	WIRING HARNESS	INSTRUMENT PANEL HARNESS
20	AR74411	1	Relay	ACCESSORY
21	R53028	1	Cap Screw	-
22	AR84430	1	WIRING HARNESS	-
23	AR78385	1	WIRING LEAD	INSTRUMENT PANEL HARNESS
24	AR78386	1	WIRING LEAD	GROUND
25	AH98337	1	RELAY	ACCESSORY, (SUB FOR AE23861)
26	AR78384	2	WIRING LEAD	BUSSBAR
27	R52760	2	Screw	-
..	R44302	1	Tie Band	-
..	R67982	1	COVER	-
..	R68607	1	LABEL	FUSE BOX

CIRCUIT BREAKERS AND ACCESSORY RELAY (POWER FRONT WHEEL DRIVE) [02C09]

Нет текстового описания
