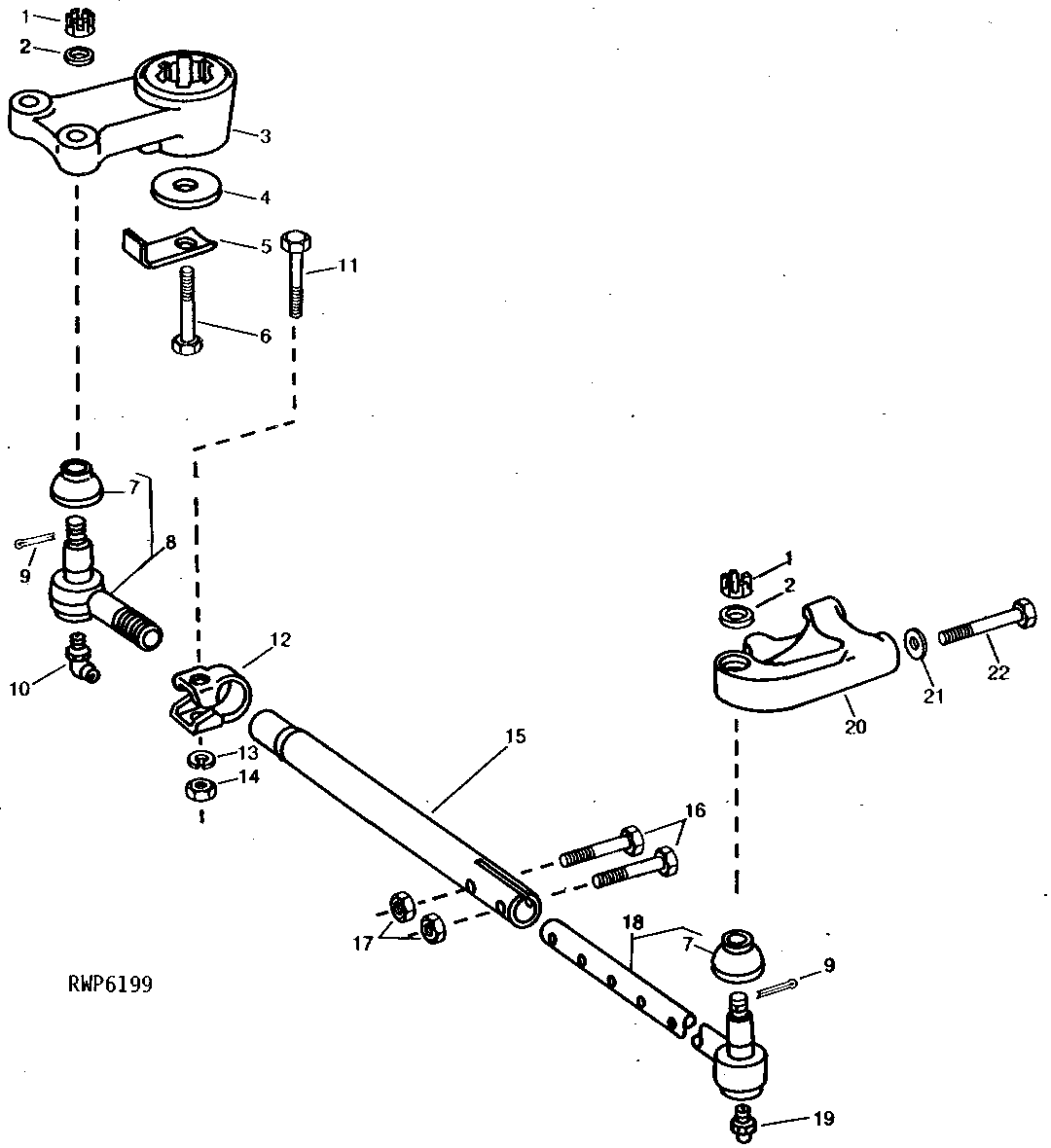

ADJUSTABLE FRONT AXLE TIE RODS (POWER FRONT WHEEL DRIVE) [04H13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H1086	4	Nut	3/4"
1	14H918	4	NUT	5/8"
2	12H236	4	Lock Washer	3/4"
2	12H294	4	Lock Washer	5/8"
3	R52793	1	STEERING ARM	-
3	R66161	1	STEERING ARM	-
4	R20136	1	Washer	-
5	R50075	1	LOCK PLATE	-
6	19H1782	1	Cap Screw	3/4" X 2-1/4"
7	R21101	4	Cover	-
7	R66306	4	Cover	-
8	AR63590	2	Tie Rod End	-
8	AR85943	2	Ball Joint	-
9	11M7015	4	Cotter Pin	3.200 X 25 MM
9	11M7083	4	Cotter Pin	0.126" X 1.969"
10	JD7799	2	Lubrication Fitting	(SUB FOR JD7781, THIS APPLICATION)
11	19H1990	2	Cap Screw	1/2" X 2-1/4"
11	19H1847	2	Cap Screw	5/8" X 2-1/2"
12	M2301T	2	Clamp	-
12	R66307	2	Clamp	-
13	12H301	2	Lock Washer	1/2"
13	12H294	2	Lock Washer	5/8"
14	14H1040	2	Nut	1/2"
14	14H1039	2	Nut	5/8"
15	R55075	2	TUBE	-
15	R66303	2	TUBE	-
16	19H3065	4	Cap Screw	3/8" X 2"
17	K40003	4	Lock Nut	-
18	AR63587	1	TIE ROD ASSEMBLY	-
18	AR85947	1	TIE ROD ASSEMBLY	-
19	JD7798	2	Lubrication Fitting	(SUB FOR JD7759, THIS APPLICATION)
20	R52266	1	ARM	R.H.
20	R74139	1	STEERING ARM	L.H.
20	R74138	1	STEERING ARM	R.H.
20	R66105	1	STEERING ARM	L.H.
20	R66104	1	STEERING ARM	R.H.
20	R52267	1	ARM	L.H.
21	R1836R	4	Washer	-
21	24M7353	4	Washer	(SUB FOR R42660)
22	19H2233	4	CAP SCREW	5/8" X 3-1/2"
22	19H2725	4	Cap Screw	3/4" X 3-3/4", HS, SAE 8

ADJUSTABLE FRONT AXLE TIE RODS (POWER FRONT WHEEL DRIVE) [04H13]

Нет текстового описания
