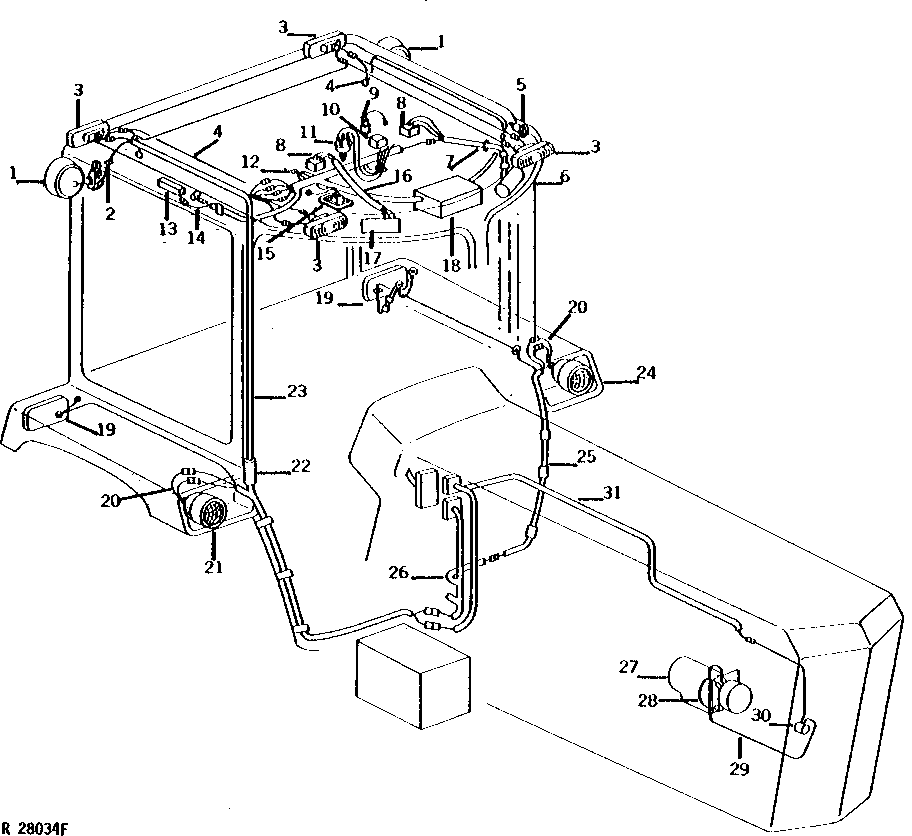

WIRING HARNESS (ROLL-GARD AND SOUND-GARD BODY) [02B14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR35782	2	FLOODLAMP	(B) (12-VOLT)
1	RE19075	2	Floodlamp	(A) (12-VOLT) (HALOGEN) (HOBBS OR GUIDE)
2	A3411R	2	Grommet	-
3	AR60250	2	Lamp	WARNING
4	AR56211	2	Wiring Harness	GROUND
5	AR56987	1	Switch	DOME LIGHT, (ALSO ORDER R81544)
5	R53608	2	Rivet	-
5	R81544	1	Gasket	-
6	RE48783	1	WIPER MOTOR	L.H. WINDSHIELD WIPER, (SUB FOR AR56691 OR RE18943) (ALSO FURNISH T24167)
6	AR91667	1	SHAFT	(SUB RE48783) (AMERICAN BOSCH AND UTC)
7	AR87340	1	WIPER MOTOR WIRING HARNESS	WIPER, (SUB FOR AR56199) (USE WITH AR56691)
7	RE18944	1	Wiper Motor Wiring Harness	(USE WITH RE18943 OR RE48783)
8	AR64992	2	Rotary Switch	WIPER MOTOR, (SUB FOR AR57228)
9	AH80591	1	TURN SIGNAL LAMP	CONDENSER INDICATOR LAMP
10	AR59779	1	TEMPERATURE SWITCH	(C)
11	AR53155	1	SWITCH	BLOWER
12	AR62559	1	WIRING HARNESS	(D)
12	AR67952	1	WIRING HARNESS	(D)
12	AR71466	1	WIRING HARNESS	(D)
13	AR56670	1	LAMP	(A) DOME, (SUB AT101691)
13	RE10761	1	HOUSING	(A) DOME LAMP, (SUB FOR AR78418)
13	R36235	3	Grommet	-
14	AR62173	1	HEADPHONE JACK	(MONAURAL SOUND) (SUB FOR AR62288) (NLA)
14	AR62172	1	HEADPHONE JACK	(STEREOPHONIC SOUND) (SUB FOR AR62287) (NLA)
14	A3411R	1	Grommet	-

WIRING HARNESS (ROLL-GARD AND SOUND-GARD BODY) [02B14]
