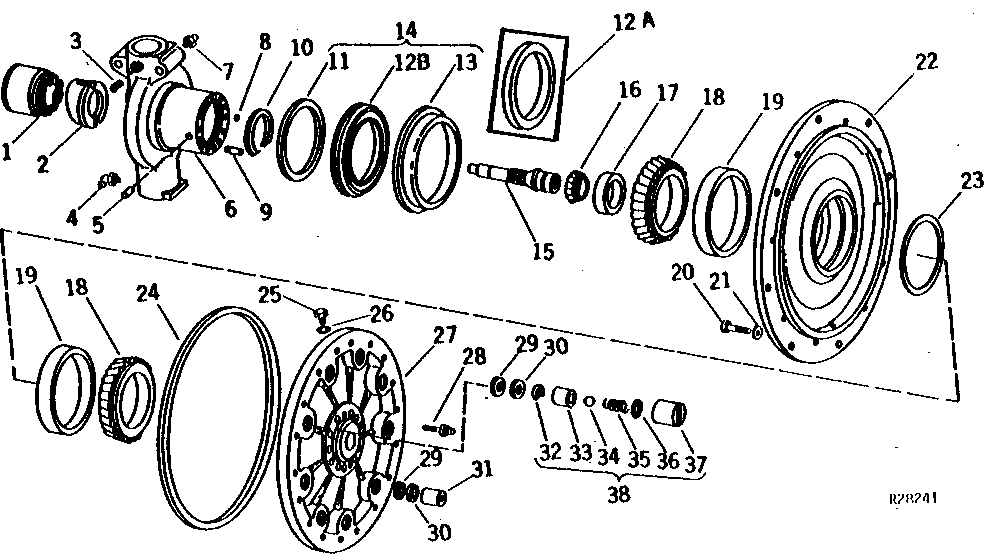

WHEEL HUB, MOTOR, AND HOUSING (POWER FRONT WHEEL DRIVE) [03G06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR73212	1	CYLINDER BLOCK	(SUB FOR AR45034)
2	R42817	1	SWASH PLATE	-
3	15H558	1	Pipe Plug	1/8"
4	JD7781	1	Lubrication Fitting	-
5	R42881	1	Dowel Pin	-
6	AR86538	1	HOUSING	(MARKED R42332) (ALSO ORDER (2) R66650) (SUB FOR AR45414)
7	JD7759	1	Lubrication Fitting	-
8	T17951	2	O-Ring	(SUB FOR R27490)
9	R36666	2	DOWEL PIN	-
10	R45569	1	Snap Ring	-
11	R62516	1	WASHER	-
13	R62515	1	GUIDE	(SUB R70206)
14	AR77224	1	SEAL	-
15	R42735	1	SHAFT	-
16	JD9029	1	Bearing Cone	-
17	JD7403	1	Bearing Cup	-
18	JD9028	2	BEARING CONE	-
19	JD8292	2	BEARING CUP	-
20	19H1800	8	Cap Screw	3/8" X 1-1/2"
21	R42729	8	Washer	-
22	R41958	1	HUB	-
23	R42765	1	Shim	0.08MM (.003")
23	R48811	1	Shim	0.13MM (.005")
23	R42766	1	Shim	0.25MM (.010")
24	R42877	1	PACKING	-
25	R27216	1	DRAIN PLUG	(SUB FOR R31631)
26	R26287	1	O-Ring	-
27	AR44376	1	HOUSING	-
28	R42969	12	SCREW	-
29	R29354	9	O-Ring	(SUB FOR R42763)
30	R35473	9	Back-Up Ring	(SUB R29354)
31	R42927	8	PISTON	-
32	R33282	1	Snap Ring	-
33	-	1	Part 36	(ORDER AR78303)
34	R26552	1	Ball	8MM (5/16")
35	R59860	1	SPRING	(SUB FOR R27730)
36	P48347	1	O-Ring	-
37	-	1	Part 40	(ORDER AR78303)
38	AR78303	1	PISTON	-
12A	AR47137	1	SEAL	(SUB AR77224)
12B	-	1	Part 13	-

WHEEL HUB, MOTOR, AND HOUSING (POWER FRONT WHEEL DRIVE) [03G06]
