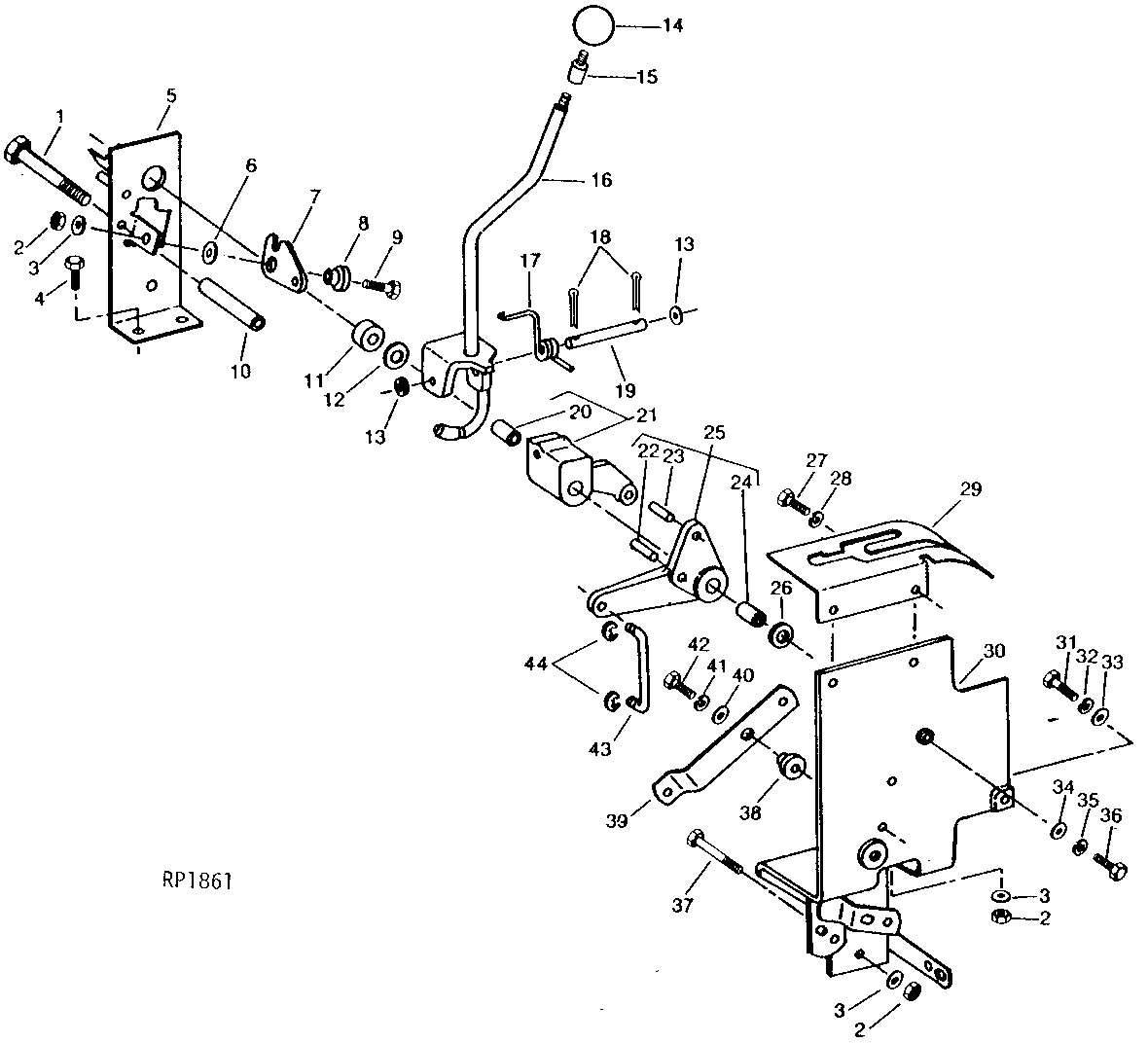

TRANSMISSION SHIFTER CONTROL SUPPORT, LEVER AND LINKAGE (POWER SHIFT) [03E16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2852	1	Cap Screw	5/16" X 4"
2	14H812	5	NUT	3/8"
3	12H304	5	Lock Washer	3/8"
4	19H2284	2	Cap Screw	3/8" X 7/8"
5	AR54956	1	SUPPORT	-
6	R27441	1	Washer	-
7	R56316	1	LEVER	(SUB FOR R50866) (SUB RE12597)
8	R41134	1	BUSHING	-
9	19H2552	1	CAP SCREW	3/8" X 1-1/8"
10	28H3299	1	Spacer	1/4" X 3-1/16"
11	R52138	1	Spacer	-
12	R21727	1	SHIM	-
13	24H1289	2	Washer	21/64" X 5/8" X 0.049"
14	R50864	1	KNOB	-
15	R61680	1	WELD STUD	(LESS SOUND-GARD BODY OR ROLL-GARD)
16	AR75912	1	GEARSHIFT LEVER	(SUB FOR AR54957 AND AR69265)
17	R50800	1	SPRING	(SUB RE70193)
18	11M7079	2	Cotter Pin	0.098" X 0.472"
19	R45832	1	PIN FASTENER	(SUB RE70193)
20	R653R	2	BUSHING	-
21	AR66962	1	GUIDE	(ALSO ORDER (3) R21727) (SUB FOR AR58937)
22	A4681R	1	DOWEL PIN	-
23	R38295	1	Needle Roller	-
24	R653R	1	BUSHING	-
25	AR66963	1	LEVER	(MARKED R56315 OR R50799) (ALSO ORDER (3) R21727) (SUB FOR AR58935)
26	24H1658	1	Washer	21/32" X 1" X 0.060"
27	19H1813	2	CAP SCREW	5/16" X 5/8"
28	12H303	1	Lock Washer	5/16"
29	R77308	1	PLATE	(SUB FOR R50802)
30	AR70233	1	SUPPORT	(SUB FOR AR54951)
31	19H1731	2	Cap Screw	(A) 3/8" X 1"
32	12H304	2	Lock Washer	(A) 3/8"
33	24H1305	2	Washer	(A) 13/32" X 13/16" X 0.065"
34	24H1312	1	Washer	13/32" X 1-3/8" X 0.105"
35	R53668	1	THRUST WASHER	-
36	R53664	1	Self-Locking Screw	-
37	19H1944	2	Cap Screw	3/8" X 2-3/4"
38	R52668	1	BUSHING	-
39	R50803	1	LEVER	(SUB R77308)
40	24H1822	1	Washer	11/32" X 7/8" X 1/16"
41	12H303	1	Lock Washer	5/16"
42	19H1905	1	Cap Screw	5/16" X 1"
43	R50804	1	LINK	-
44	R72654	2	Snap Ring	(SUB FOR R27507)

TRANSMISSION SHIFTER CONTROL SUPPORT, LEVER AND LINKAGE (POWER SHIFT) [03E16]
