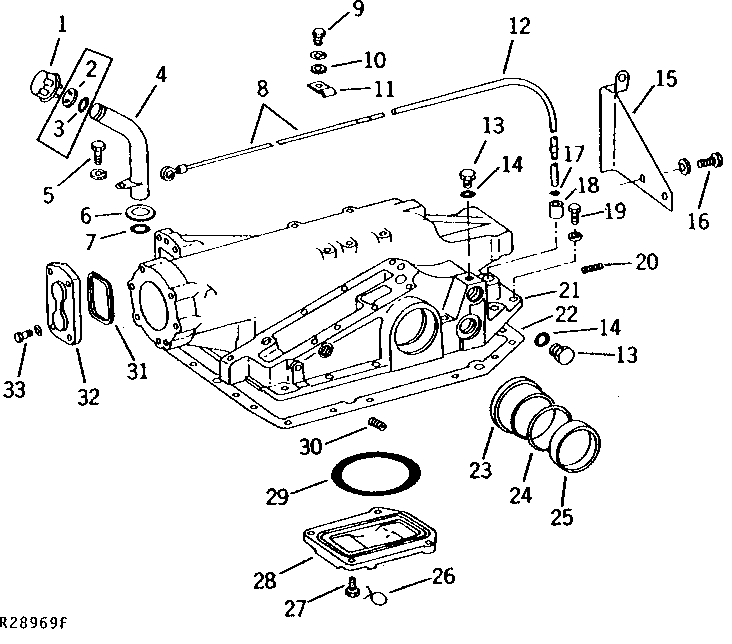

TRANSMISSION REAR COVER (LESS ROCKSHAFT) (TRACTOR SERIAL NO. 013121- ) [04D12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR30697	1	CAP	-
1	AR55304	1	CAP	(ALSO ORDER R57550)
2	R57550	1	Isolator	-
3	R1225R	1	O-Ring	-
4	AR54439	1	TUBE	(SUB RE20058 AND AR30697)
4	AR83383	1	OIL TUBE	(SUB RE20058)
5	19H2284	1	Cap Screw	3/8" X 7/8"
5	12H304	1	Lock Washer	3/8"
6	24H1520	1	Washer	1-15/32" X 2" X 0.105"
7	R30319	1	O-Ring	-
8	AR89228	1	DIPSTICK	(SUB FOR AR54616)
9	19H1731	2	Cap Screw	3/8" X 1"
9	12H304	2	Lock Washer	3/8"
10	24H1303	2	WASHER	13/32" X 11/16" X 0.065"
10	12H304	2	Lock Washer	3/8"
11	R34933	2	CLAMP	-
12	AR56083	1	LINE	-
13	R27474	3	Drain Plug	-
14	R26906	3	O-Ring	-
15	R63082	1	SUPPORT	-
16	19H1792	2	Cap Screw	1/2" X 1"
16	12H301	2	Lock Washer	1/2"
17	A3917R	1	O-Ring	-
18	R55214	1	Bushing	-
19	19H1805	7	CAP SCREW	1/2" X 2-1/4"
19	19H3586	9	Cap Screw	1/2" X 4-1/4" HS, SAE 8
19	12H301	17	Lock Washer	1/2"
19	R43406	1	Cap Screw	(SUB R115437)
19	19H1721	9	CAP SCREW	1/2" X 1-1/2"
20	15H571	2	PIPE PLUG	3/8"
21	AR70445	1	COVER	(MARKED R57284) ((POWER SHIFT (SUB AR94620 AND RE10096) OR (QUAD-RANGE) (SUB AR94620 AR103687 AND AR57030)
22	R43408	1	Gasket	-
23	R47351	1	PLUG	(NOT AVAILABLE)
23	R47353	1	PLUG	(NOT AVAILABLE)
24	R26543	1	O-Ring	-
24	A5598R	1	O-Ring	-
25	R58615	2	Plug	-
26	-	2	Part 38	356MM (14") (16 GAUGE)
27	R57725	4	Screw	(SUB FOR R61762)
28	R58544	1	Cover	-
29	R36425	1	Washer	-
30	15H559	1	Pipe Plug	1/4"
31	R40922	1	Back-Up Ring	-
32	R41446	1	COVER	(LESS SELECTIVE CONTROL)
33	19H2731	4	Cap Screw	7/16" X 1-3/8"
33	12H293	4	Lock Washer	7/16"
..	R42093	1	Grommet	-

TRANSMISSION REAR COVER (LESS ROCKSHAFT) (TRACTOR SERIAL NO. 013121- ) [04D12]
