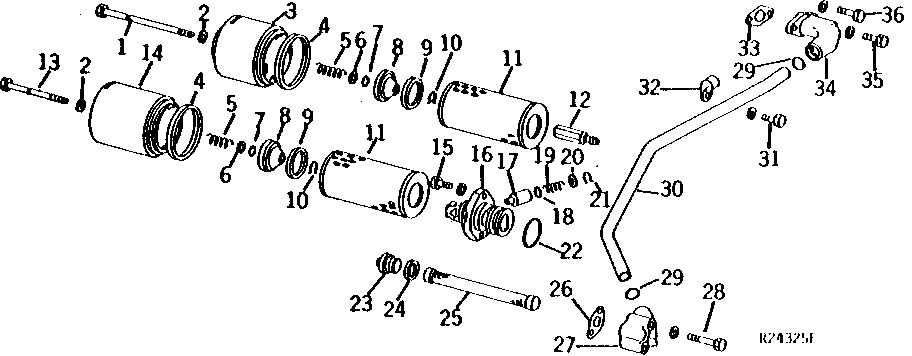

TRANSMISSION OIL FILTER AND OIL PUMP INTAKE (POWER SHIFT) [03F08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R65894	1	Screw	(A)
1	R54750	1	SCREW	(SUB FOR R39795)
2	R394R	2	O-Ring	-
3	R39794	1	COVER	-
3	R39794	1	COVER	(A)
3	R58652	1	Cover	(A)
4	R34733	2	WASHER	-
5	H819R	2	SPRING	-
6	24H1227	2	Washer	17/32" X 13/16" X 0.060"
7	R394R	2	O-Ring	-
8	R65892	2	RETAINER	-
9	R28594	2	WASHER	-
9	R28594	2	WASHER	(A)
10	R32507	2	Snap Ring	-
11	AR75603	1	FILTER ELEMENT	(ALSO ORDER R34733) (SUB FOR AR28271 OR AR75601) (PKG. OF 2)
11	AR98098	2	Filter Element	(A) (SUB FOR AR70506)
11	AR75603	1	FILTER ELEMENT	(A) (ALSO ORDER R34733) (SUB FOR AR28271 OR AR75601) (PKG. OF 2)
12	R58765	1	STUD	(A) (SUB R65894)
13	R54751	1	SCREW	(SUB FOR R39797)
13	R54751	1	SCREW	(SUB FOR R39797)
13	R54750	1	SCREW	(A)
14	R39796	1	COVER	-
14	R39796	1	COVER	(A)
14	R63093	1	COVER	(A) (SUB FOR R51654)
15	19H1800	2	Cap Screw	3/8" X 1-1/2"
15	12H304	2	Lock Washer	3/8"
16	R54962	1	Housing	-
17	R57559	1	VALVE	-
17	R33162	1	VALVE	(SUB R57559 AND R33259, THIS APPLICATION)
18	R33259	1	O-Ring	-
19	R26686	1	SPRING	-
20	R48013	1	Washer	-
21	R33282	1	Snap Ring	-
22	U12198	1	O-Ring	-
23	R40147	1	FITTING	(SUB FOR A4806R)
24	A4808R	1	WASHER	-
25	R53169	1	Screen	(NYLON)
25	AR26375	1	SCREEN	(STEEL)
26	R28110	1	GASKET	-
27	R33911	1	ADAPTER FITTING	(SUB FOR R84270 AND R84396)
28	19H1944	2	Cap Screw	3/8" X 2-3/4"
28	12H304	2	Lock Washer	3/8"
29	A3606R	1	O-RING	-
30	R53415	1	LINE	-
31	19H2284	1	Cap Screw	3/8" X 7/8"
31	12H304	1	Lock Washer	3/8"
32	R33364	1	CLAMP	-
33	R33363	1	GASKET	-
34	AR41885	1	ADAPTER FITTING	-
35	19H1765	1	Cap Screw	3/8" X 1-3/4"
35	12H304	1	Lock Washer	3/8"
36	19H1732	1	Cap Screw	3/8" X 1-1/4"
36	12H304	1	Lock Washer	3/8"
