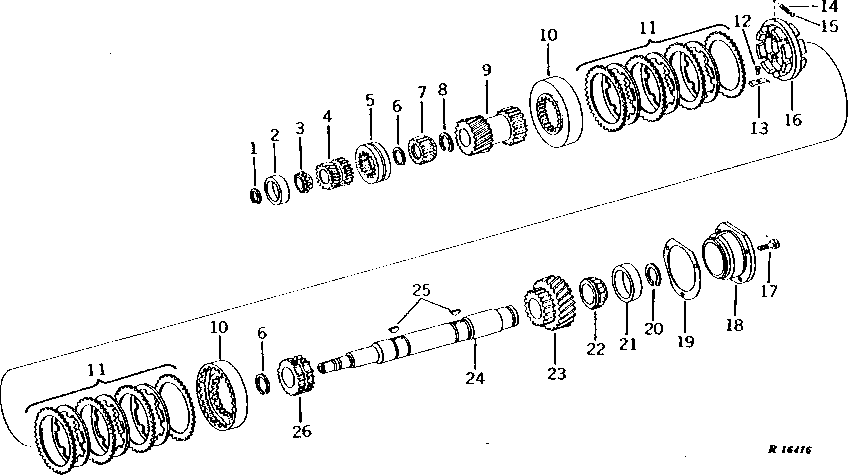

TRANSMISSION DRIVE SHAFT ASSEMBLY (QUAD-RANGE AND SYNCRO-RANGE) [03C05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R35165	1	Snap Ring	2.01MM (.079")
1	R35164	1	SNAP RING	1.93MM (.076")
1	R40715	1	Snap Ring	2.39MM (.094")
1	R40714	1	SNAP RING	2.31MM (.091")
1	R35167	1	SNAP RING	2.16MM (.085")
1	R35166	1	SNAP RING	2.08MM (.082")
1	R40713	1	SNAP RING	2.24MM (.088")
2	JD8291	1	BEARING CUP	-
3	JD7232	1	BEARING CONE	-
4	R47119	1	Pinion	-
5	R47118	1	SHIFT COLLAR	(SUB FOR R62991)
6	R35385	2	SNAP RING	-
7	R47117	1	Shift Collar	(SUB FOR R62990)
8	R35386	1	SNAP RING	-
9	R51842	1	PINION	(A) (SUB R59827)
9	R59827	1	PINION	(A)
9	R54495	1	PINION	(B) (SUB FOR R59828)
10	R36678	2	DRUM	-
11	RE37120	2	DISK	(SUB FOR AR42990 OR AR69155)
12	R45225	2	GROOVE PIN	-
13	R35461	2	CLAMP	-
14	R59860	4	SPRING	(SUB FOR R27730)
15	A4742R	4	Ball	-
16	AR35403	1	SYNCHRONIZER	(MARKED R35455)
17	R57725	3	Screw	(SUB FOR R40835)
18	R50564	1	BEARING HOUSING W/O BEARING	(A)
18	AR62189	1	HOUSING	(B)
18	R50222	1	Bushing	(B)
19	R57977	1	Shim	0.15MM (.006") (SUB FOR R43350)
19	R57978	1	Shim	0.28MM (.011") (SUB FOR R43351)
19	R57979	1	Shim	0.46MM (.018") (SUB FOR R43352)
20	R35382	1	SNAP RING	2.01MM (.079")
20	R40712	1	Snap Ring	2.31MM (.091")
20	R40711	1	SNAP RING	2.24MM (.088")
20	R35384	1	SNAP RING	2.16MM (.085")
20	R35383	1	SNAP RING	2.08MM (.082")
20	R35381	1	SNAP RING	1.93MM (.076")
21	JD8240	1	Bearing Cup	-
22	JD8907	1	BEARING CONE	-
23	R54567	1	PINION	(SUB FOR R43020)
24	R53055	1	DRIVE SHAFT	-
25	26H82	2	Shaft Key	1/4" X 7/8"
26	R35457	1	SHIFT COLLAR	(SUB FOR R64129)

TRANSMISSION DRIVE SHAFT ASSEMBLY (QUAD-RANGE AND SYNCRO-RANGE) [03C05]
