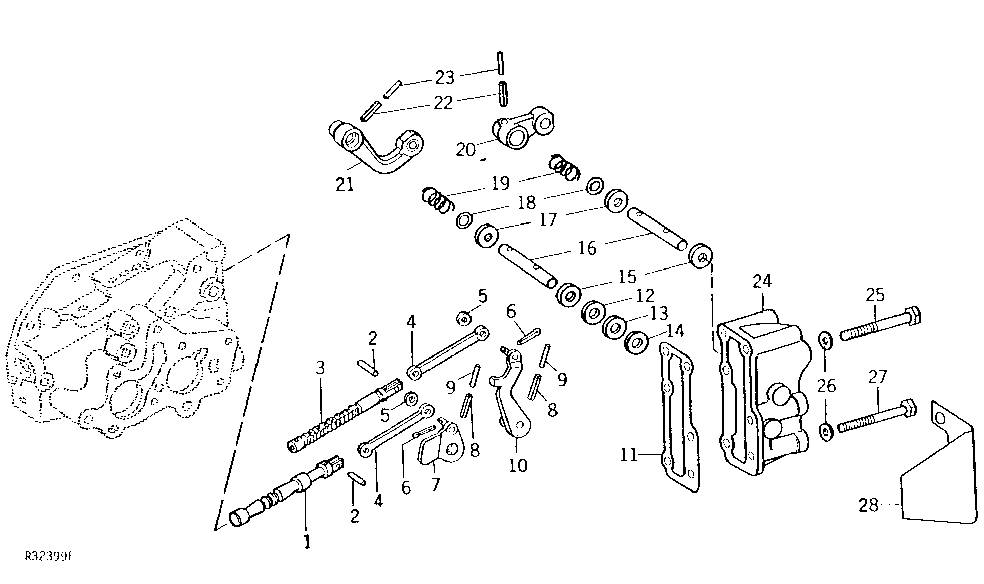

TRANSMISSION CONTROL VALVE COVER, CONTROL VALVES, AND ARMS (POWER SHIFT) [03F05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R82024	1	VALVE	(SUB FOR R33291 OR R72411)
2	34H309	2	Spring Pin	1/4" X 5/8"
3	R48370	1	VALVE	-
4	R33290	2	LINK	-
5	24H753	2	Washer	9/32" X 5/8" X 0.049"
6	11M7077	2	Cotter Pin	0.063" X 0.984"
7	AR53841	1	ARM	(SUB RE22320)
7	AR53843	1	ARM	(POWER FRONT WHEEL DRIVE) (SUB RE38361)
8	R56504	2	Spring Pin	-
9	R56503	2	SPRING PIN	-
10	AR53840	1	ARM	(SUB RE22319)
10	AR53844	1	ARM	(POWER FRONT WHEEL DRIVE) (SUB RE21304)
11	R33275	1	GASKET	-
12	R51494	1	WASHER	-
13	T16911	1	SHIM	-
14	R67193	1	SHIM	3.3MM (0.13")
15	R33587	2	SEAL	-
16	R49819	2	PIN	-
17	R36364	2	WASHER	-
18	24H1359	2	Washer	5/8" X 7/8" X 0.060"
19	F3221R	2	SPRING	-
20	R49817	1	LEVER	-
21	R49816	1	LEVER	-
22	34H299	2	Spring Pin	(SUB FOR R56506)
23	34H252	2	SPRING PIN	1/8" X 1-1/4", (SUB FOR R56505)
24	AR45255	1	COVER	(MARKED R33268 OR R44030)
24	R82331	1	COVER	(POWER FRONT WHEEL DRIVE) (MARKED R42989, R48758 OR R72414) (SUB FOR AR52180, AR95904 OR RE21305) (ALSO ORDER R26287, (5) R26448, R27216 AND R27218)
24	R27216	1	DRAIN PLUG	(SUB FOR R31631)
24	R26287	1	O-Ring	-
25	19H2023	5	CAP SCREW	3/8" X 3-1/4"
26	24M7096	6	Washer	10.500 X 18 X 1.600 MM
27	19H1854	1	Cap Screw	3/8" X 3-3/4"
28	R51795	1	SHIELD	(SUB R108663)
