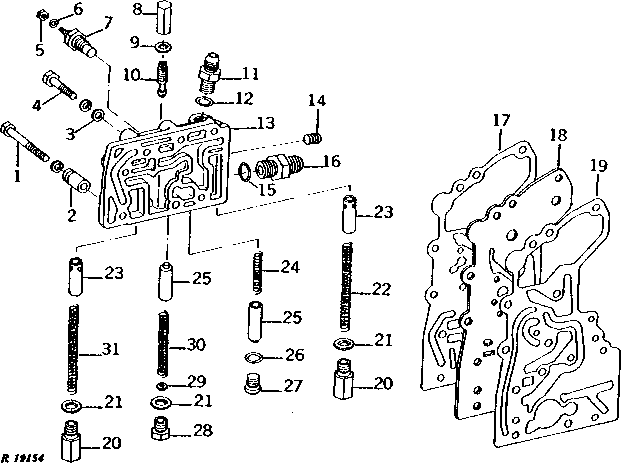

TRANSMISSION CLUTCH REGULATING VALVE (POWER SHIFT) (TRACTOR SERIAL NO. -010646) [03E23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H293	1	Lock Washer	7/16"
1	19H2058	1	Cap Screw	7/16" X 3-3/4"
2	R52140	1	SPACER	-
3	24H1325	6	Washer	15/32" X 59/64" X 0.065"
4	19H2055	2	CAP SCREW	7/16" X 2-1/4"
4	19H1978	2	Cap Screw	7/16" X 1-1/2"
4	19H2347	2	Cap Screw	7/16" X 3"
4	19H1828	2	CAP SCREW	7/16" X 4"
4	12H293	6	Lock Washer	7/16"
5	14H631	1	Nut	0.190"
6	24H1283	1	Washer	7/32" X 1/2" X 0.049"
7	AR61610	1	PRESSURE SWITCH	-
8	F2847R	1	NUT	-
9	F2846R	1	WASHER	-
10	R39587	1	SET SCREW	-
11	R27270	1	Fitting	-
12	R26906	1	O-Ring	-
13	R54335	1	HOUSING	(MARKED R51572) (SUB AT58342, AR67854, R92483, R56829 AND 19H2055)
14	15H571	1	PIPE PLUG	3/8"
15	F3171R	1	O-Ring	-
16	R27267	1	Fitting	-
17	R98926	1	GASKET	(SUB FOR R51573)
18	R56829	1	PLATE	(SUB FOR R51575)
19	R94331	1	GASKET	(SUB FOR R46815 OR T67029)
20	R51577	2	FITTING PLUG	-
21	R1742R	3	WASHER	-
22	R57585	1	SPRING	(SUB FOR R51576)
23	R57560	2	VALVE	(ALSO ORDER R33259) (SUB FOR R54042)
24	R28914	1	SPRING	-
25	R57559	2	VALVE	(ALSO ORDER R33259) (SUB FOR R33162)
26	R26375	1	O-Ring	-
27	R33138	1	Fitting	-
28	R52589	1	FITTING PLUG	-
29	R33521	1	Shim	0.76MM (.030")
30	R41850	1	SPRING	-
31	R51574	1	SPRING	-

TRANSMISSION CLUTCH REGULATING VALVE (POWER SHIFT) (TRACTOR SERIAL NO. -010646) [03E23]
