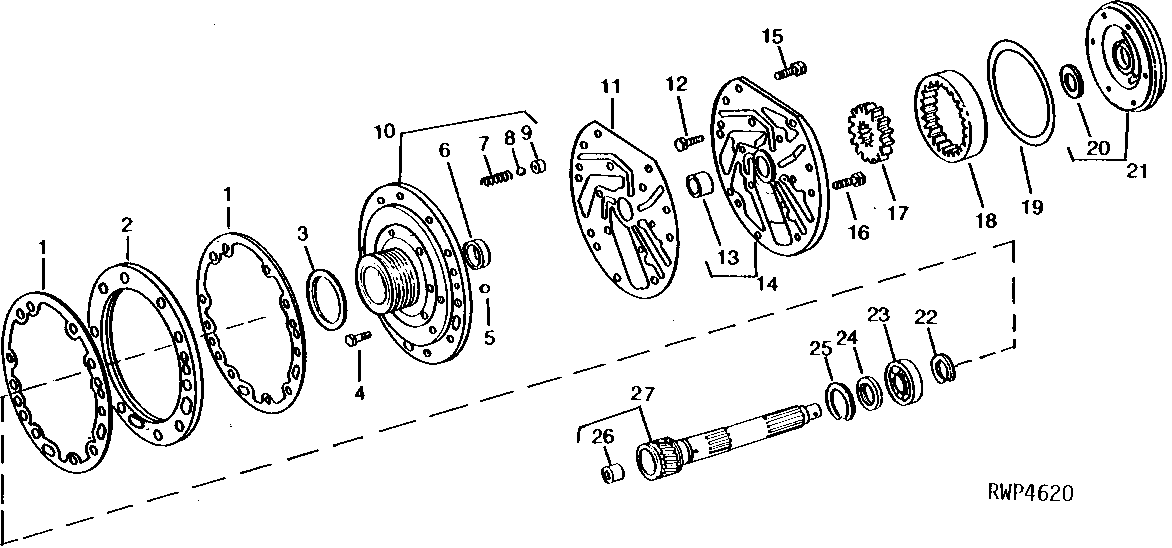

TRANSMISSION CLUTCH OIL PUMP AND MANIFOLD (POWER SHIFT) [03D22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R97770	2	GASKET	(SUB FOR R52568, R94323 OR R69305)
2	R53493	1	SPACER	-
3	R43752	4	RING	-
4	R112874	6	CAP SCREW	(SUB FOR R41035)
5	R42849	2	Ball	10MM (3/8")
6	R45205	1	BUSHING	-
7	R48951	1	SPRING	-
8	400R	1	Ball	-
9	R48652	1	ROUND RETAINER	-
10	AR63307	1	MANIFOLD	(MARKED R48648 OR R54791) (SUB FOR AR51913)
11	R94326	1	GASKET	(SUB FOR R47684, R69306 OR R70250)
12	19H1900	1	Cap Screw	5/16" X 3/4"
13	R43099	1	BUSHING	-
14	RE21328	1	HOUSING	(MARKED R43098, R69303 OR R82362) (SUB FOR AR43017 OR AR90454)
15	R53495	9	Cap Screw	-
16	R38614	2	CAP SCREW	(SUB FOR R53494)
17	R46450	1	GEAR	-
17	R82364	1	SPUR GEAR	(SUB FOR R52228)
18	R46451	1	GEAR	-
18	R52229	1	GEAR	-
19	R39876	1	Packing	-
20	AR70406	1	Seal	(SUB FOR R35642)
20	RE299173	1	SEAL	(SUB FOR AR70406)
21	AR69615	1	HOUSING	(MARKED R53492 OR R57913) (SUB FOR AR60055) (SUB AR90960, R52229 AND R82364, THIS APPLICATION)
21	AR90960	1	HOUSING	(MARKED R52226 OR R53157) (SUB FOR AR56759)
22	A364R	1	Snap Ring	-
23	JD8514	1	Ball Bearing	-
24	R43738	1	THRUST WASHER	-
25	B3169R	1	SNAP RING	-
26	R43214	1	BUSHING	(USE WITH R53497)
26	R57083	1	BUSHING	(USE WITH R57090)
27	AR68358	1	SHAFT	(MARKED R53497 OR R57090) (SUB FOR AR60506)
..	RE228011	1	HIGH-LOW CLUTCH	(SUB FOR AR90517) (ASSY)

TRANSMISSION CLUTCH OIL PUMP AND MANIFOLD (POWER SHIFT) [03D22]

Нет текстового описания
