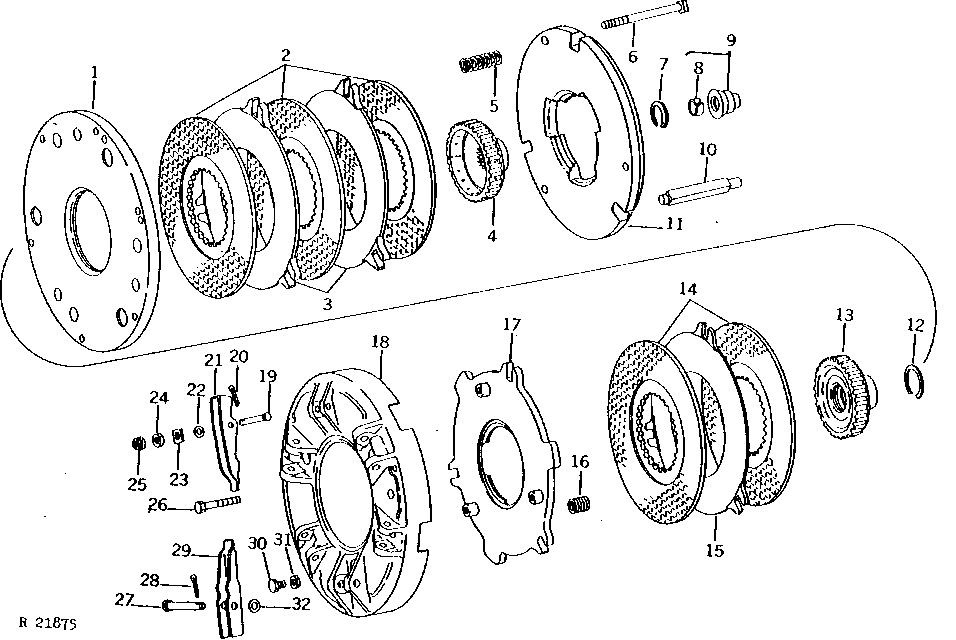

TRANSMISSION AND PTO CLUTCH (QUAD-RANGE AND SYNCRO-RANGE) [03B12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R50341	1	PLATE	-
2	RE234264	3	Clutch Disk	(SUB FOR AR67710, AR89320 AND AR95827)
3	R59690	2	Clutch Plate	-
3	R54111	2	CLUTCH PLATE	(SUB R59690)
4	R50993	1	SPLINED COUPLING	-
4	R54351	1	SPLINED COUPLING	-
5	R51217	3	SPRING	-
5	R62730	3	SPRING	-
6	R51230	3	BOLT	(A)
7	P29861	1	SNAP RING	-
8	R50189	1	BUSHING	-
9	AR54728	1	ADAPTER FITTING	(SUB RE10713)
10	R51003	3	PIN	(A)
11	R57330	1	Plate	(SUB FOR R50938 OR R56746)
12	R36575	1	Snap Ring	(A)
12	B3118R	1	Snap Ring	(A)
13	R56862	1	HUB	(A) (SUB FOR R50960)
13	R54352	1	SPLINED COUPLING	(A)
14	AR60082	2	PLATE	(A) (SUB RE17420)
15	R61066	1	Clutch Plate	(A)
15	R59689	1	CLUTCH PLATE	(A) (SUB R61066)
15	R51800	1	CLUTCH PLATE	(A) (SUB R61066)
16	R52771	3	SPRING	(A) (SUB R56960)
16	R56960	3	Spring	(A)
17	R56961	1	CLUTCH PLATE	(SUB FOR R50940)
18	R50156	1	COVER	-
19	R53625	3	Pin Fastener	-
20	11M7021	3	Cotter Pin	0.157" X 0.984"
21	R51232	3	LEVER	-
22	24M7096	3	Washer	10.500 X 18 X 1.600 MM
23	R58008	3	Lock Washer	(SUB FOR R51231)
24	14H1080	3	Nut	3/8"
25	F3220R	3	Lock Nut	-
26	R61529	6	Screw	(SUB FOR R39305)
27	R31132	3	PIN FASTENER	(A)
28	11M7021	3	Cotter Pin	(A) 0.157" X 0.984"
29	R53439	3	LEVER	(A) (SUB (3) R57031, (3) R56960 AND R51341)
29	R57031	3	LEVER	(A) (SUB FOR R53439)
30	R78020	3	SELF-LOCKING SCREW	(A) (SUB FOR R56730)
31	14H934	3	Nut	(A) 7/16"
32	24H1227	3	Washer	(A) 17/32" X 13/16" X 0.060"
