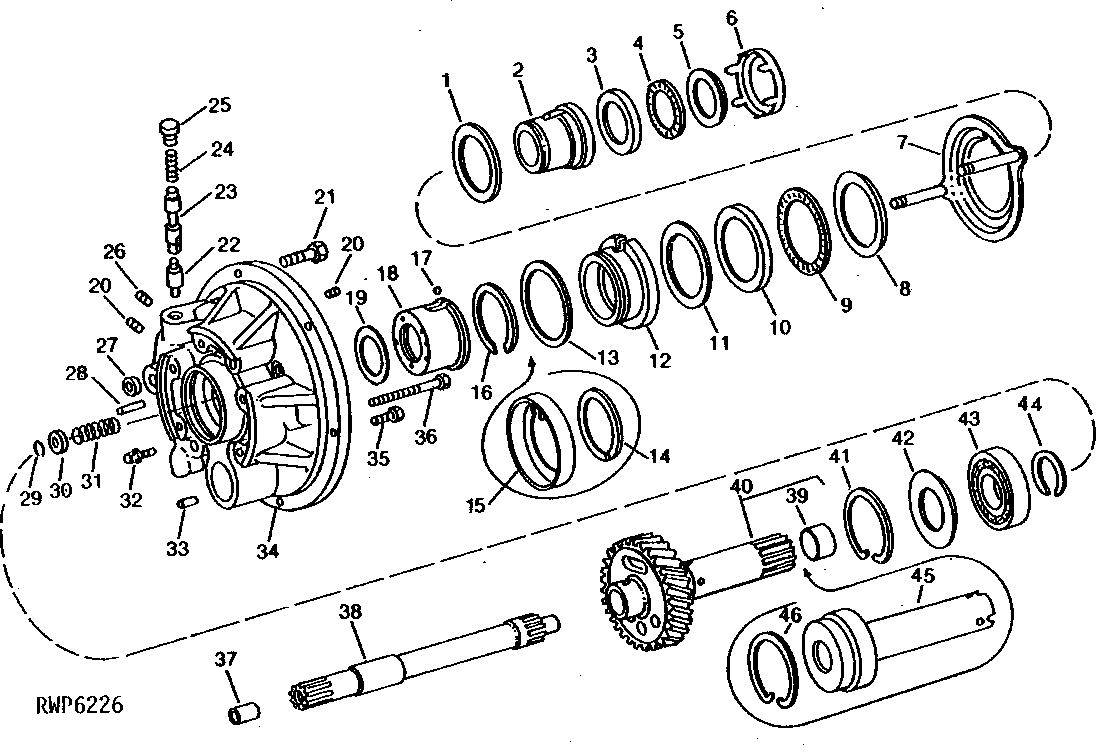

TRANSMISSION AND PTO CLUTCH OPERATING PISTON HOUSING AND PISTONS (QUAD-RANGE AND SYNCRO-RANGE) (TRACTOR SERIAL NO. 007000- ) [03B16]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R58588	1	WASHER	(SUB R65551)
1	R52910	1	PACKING	-
1	R65551	1	PACKING	-
2	R51384	1	PISTON	-
2	R61391	1	PISTON	-
3	JD9916	1	Bearing Race	-
4	JD9918	1	Bearing	-
5	R51340	1	Bearing Race	-
6	R51365	1	Retainer	-
7	AR62190	1	RETAINER	(A)
8	R51341	1	BEARING RACE	(A)
8	R61386	1	BEARING RACE	(A)
9	JD9919	1	Bearing	(A)
10	JD9917	1	Bearing Race	(A)
11	R51352	1	WASHER	(A)
12	R52014	1	PISTON	(A)
12	R61390	1	PISTON	(A)
13	R66102	1	Packing	(A) (SUB FOR R50850)
13	R67068	1	WASHER	(A) (SUB FOR R61389)
14	-	1	Part 20	(B) (NOT REQUIRED)
15	-	1	Part 21	(B) (NOT REQUIRED)
16	R52912	1	SNAP RING	-
17	400R	1	Ball	(1/4")
18	R62698	1	SLEEVE	(SUB FOR R52013)
18	R62834	1	BUSHING	(SUB FOR R61388)
19	R52911	1	PACKING	(SUB R65550)
19	R65550	1	Packing	-
20	15H558	6	Pipe Plug	1/8", (USE WITH R62743)
20	15H558	5	Pipe Plug	1/8", (USE WITH R54345)
20	15H638	1	Pipe Plug	1/8"
21	R41041	4	CAP SCREW	-
22	R61660	1	Pin Fastener	(ALSO ORDER R61659) (SUB FOR R53245)
23	R61659	1	Valve	(ALSO ORDER R61660) (SUB FOR R51351)
24	R50259	1	Spring	-
25	R41155	1	Fitting Plug	-
26	15H559	1	Pipe Plug	1/4"
27	R26919	1	WASHER	-
28	R27145	1	NEEDLE ROLLER	(SUB R57442, THIS APPLICATION)
29	R26548	2	SNAP RING	(A)
30	R62955	2	Retainer	(A) (SUB FOR R27092)
31	R50851	2	SPRING	(A)
32	AR61146	4	Screw	-
33	R1932R	1	Dowel Pin	-
34	AR68064	1	HOUSING	(MARKED R54345) (SUB AR64247, R57442, R61660 AND R61659) (INCLUDES KEYS 20, 22, 26, 28 AND 33)
34	AR74383	1	HOUSING	(MARKED R61387 OR R62743) (ALSO ORDER R61659) (SUB RE171050) (INCLUDES KEYS 20, 22, 26, 28 AND 33) (USED PART)
34	R21629	1	PIPE PLUG	(C) (D) (USE WITH R62743) (SUB 15H560)
34	RE171049	1	HOUSING	(SUB FOR AR64247) (USED PART)
35	R41041	2	CAP SCREW	-
36	R54693	5	Cap Screw	(C)
37	R50155	1	Bushing	-
38	R54349	1	SHAFT	(C) (SUB R58744)
38	R58744	1	SHAFT	(C)
38	R55433	1	SHAFT	(D) (SUB R58743)
38	R58743	1	SHAFT	(A)
39	R50863	1	Bushing	(A)
40	AR63211	1	SHAFT	(A) (MARKED R54353)
41	R68956	1	SNAP RING	(A) (SUB FOR R53107)
42	R52988	1	Washer	(A)
43	JD8735	1	Ball Bearing	(A)
44	R36295	1	Snap Ring	-
45	AR64401	1	ADAPTER FITTING	(B) (NLA)
46	R68956	1	SNAP RING	(B) (SUB FOR R53107)

TRANSMISSION AND PTO CLUTCH OPERATING PISTON HOUSING AND PISTONS (QUAD-RANGE AND SYNCRO-RANGE) (TRACTOR SERIAL NO. 007000- ) [03B16]
