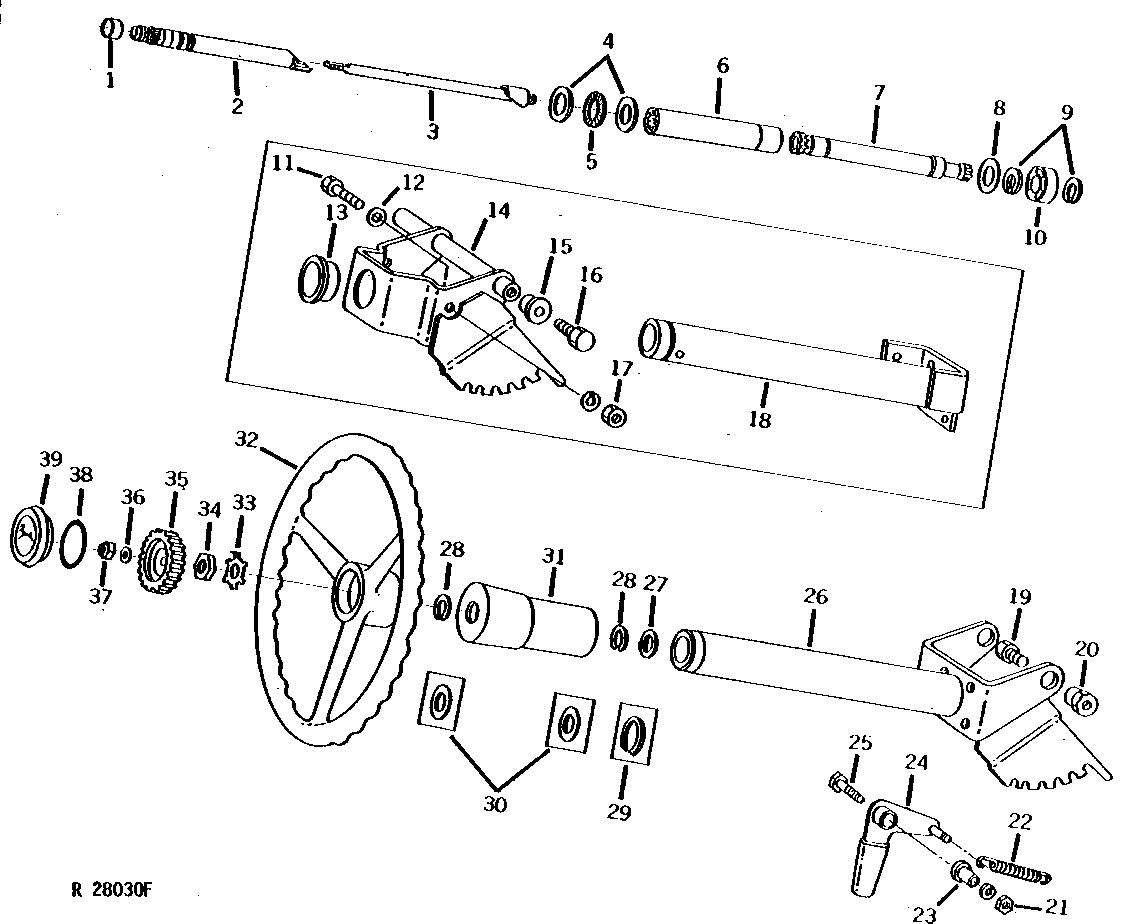

TELESCOPING STEERING (TRACTOR SERIAL NO. 010647- ) [03H19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R50875	1	Bushing	-
2	R50868	1	STEERING SHAFT	(SUB R62280 AND P46402)
2	R62280	1	Shaft	-
3	AR54808	1	Rod	-
4	JD9931	2	Thrust Bearing Race	-
4	R62278	2	Thrust Washer	-
5	JD8875	1	Needle Bearing	-
6	R50869	1	Splined Coupling	-
7	R109986	1	Shaft	(SUB FOR R55092)
8	R42629	1	WASHER	-
9	P46402	2	Snap Ring	-
10	R55498	1	Bushing	-
11	19H1731	2	Cap Screw	3/8" X 1"
12	A147R	1	WASHER	-
13	R55443	1	GROMMET	-
14	AR63258	1	BRACKET	(SUB AR81184, (2) R64704 AND (2) 19H1792)
15	R50712	2	BUSHING	-
16	19H1815	2	Cap Screw	1/2" X 1-1/4"
17	14H812	2	NUT	3/8"
17	12H304	2	Lock Washer	3/8"
18	AR63259	1	STEERING SYSTEM	(SUB AR81184, (2) R64704, (2) 19H1792 AND (2) R62278)
18	AR76535	1	TUBE	(SUB AR81184, (2) R64704 AND (2) 19H1792)
19	19H1792	2	Cap Screw	1/2" X 1"
20	R64704	2	Bushing	-
21	14H812	1	NUT	3/8"
21	12H304	1	Lock Washer	3/8"
22	R59953	1	Extension Spring	-
22	19H1849	1	Cap Screw	5/16" X 1-1/4"
22	12H303	1	Lock Washer	5/16"
22	14H611	2	Nut	5/16"
23	R58614	1	Spacer	(ALSO ORDER AR70442) (SUB FOR R51815)
24	AR70442	1	LEVER	(ALSO ORDER R58614) (SUB FOR AR56104)
25	19H3181	1	CAP SCREW	3/8" X 2"
26	AR81184	1	TUBE	-
27	R72858	1	Seal	(SUB FOR R32730)
28	P46402	2	Snap Ring	-
28	B169R	2	SNAP RING	-
29	R26933	1	SNAP RING	-
30	R42629	2	WASHER	-
31	R51153	1	Sleeve	-
32	T22875	1	STEERING WHEEL	-
33	T17148	1	Lock Washer	(SUB R259492)
34	14H904	1	Nut	3/4"
35	R91298	1	KNOB	(SUB FOR R50871)
36	12H303	1	Lock Washer	5/16"
37	14H650	1	Nut	5/16"
38	B3690R	1	O-Ring	-
39	AL155227	1	Cover	(SUB FOR R47998 OR AL118173)

TELESCOPING STEERING (TRACTOR SERIAL NO. 010647- ) [03H19]
