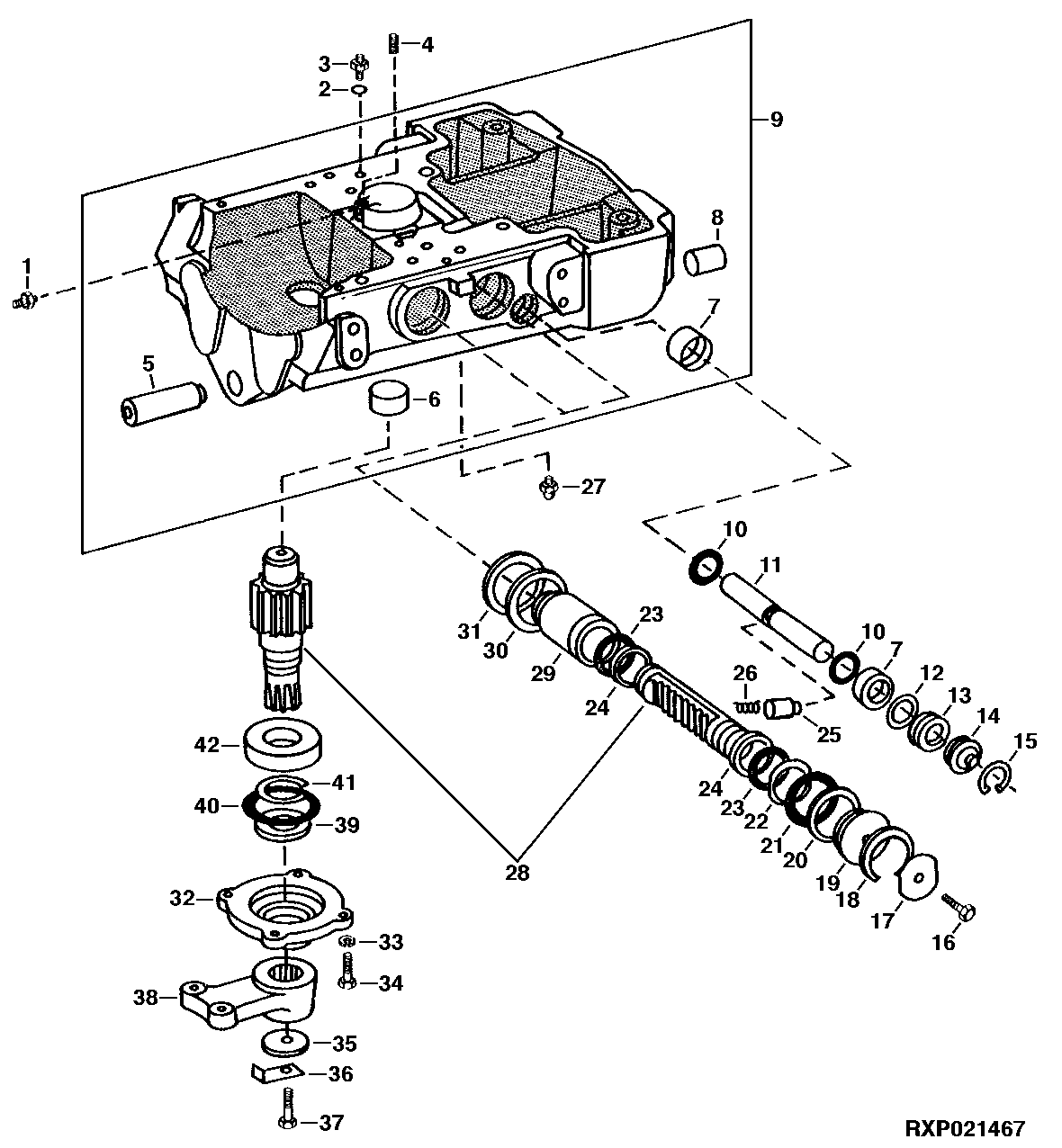

STEERING MOTOR (ADJUSTABLE FRONT AXLE) (TRACTOR SERIAL NO. 010647- ) [03I05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R39832	1	Adapter Fitting	-
2	R26448	2	O-Ring	-
3	R27212	2	Fitting	-
4	15H558	1	Pipe Plug	1/8"
5	R73635	1	Bushing	(SUB FOR R52200)
6	R28277	1	BUSHING	-
7	R55409	2	SHAFT	-
7	R61316	2	Sleeve	-
8	R109808	1	Bushing	(SUB FOR R52188, THIS APPLICATION) (SUB R109808)
9	RE22065	1	SUPPORT	(MARKED R54800 OR R61318) (SUB FOR AR63327) (NLA)
10	U10289	2	O-Ring	-
11	R55196	1	Piston	-
12	R31378	2	O-Ring	-
13	R71095	2	Washer	SUB. FOR R65699
14	R61511	2	Plug	(SUB FOR R55407)
15	R55408	2	Wear Ring	-
16	19H1800	4	Cap Screw	3/8" X 1-1/2"
17	R51120	4	WASHER	-
18	R49805	4	SNAP RING	-
19	R68284	4	PLUG	(SUB FOR R50275)
20	R49975	4	BACK-UP RING	-
21	R131817	4	O-Ring	(SUB FOR R41721)
22	R49804	4	LOCK WASHER	-
23	R65541	4	Washer	(ALSO ORDER R65542) (SUB FOR R61909, THIS APPLICATION)
24	R65542	4	Washer	(ALSO ORDER R65541) (SUB FOR R61910, THIS APPLICATION)
25	R69389	1	Pin	(SUB FOR R59543)
26	R41770	1	Spring	-
27	JD7798	1	Lubrication Fitting	-
28	AR70458	1	Spindle	(MATCHED SET)
29	R63001	4	SLEEVE	(SUB FOR R50276)
30	R131817	4	O-Ring	(SUB FOR R41721)
31	R49975	4	BACK-UP RING	-
32	R50104	1	Bearing Housing W/O Bearing	-
33	12H304	4	Lock Washer	3/8"
34	19H1800	4	Cap Screw	3/8" X 1-1/2"
35	R20136	1	Washer	-
36	R50075	1	LOCK PLATE	-
37	19H1782	1	Cap Screw	3/4" X 2-1/4"
38	R51121	1	Steering Arm	-
38	R52793	1	STEERING ARM	(POWER FRONT WHEEL DRIVE)
39	AT49215	1	SEAL	(SUB FOR T19802)
40	C11884	1	O-Ring	-
41	F1334R	1	SNAP RING	-
42	JD9320	1	Ball Bearing	-

STEERING MOTOR (ADJUSTABLE FRONT AXLE) (TRACTOR SERIAL NO. 010647- ) [03I05]
