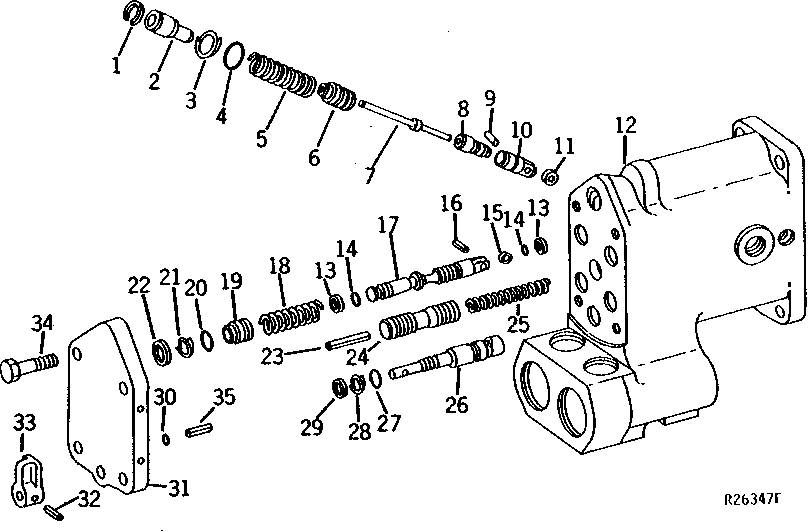

SELECTIVE CONTROL VALVE HOUSING AND VALVES (TRACTOR SERIAL NO. -030271) [04E18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R46722	1	Snap Ring	-
2	R55397	1	GUIDE	(ALSO ORDER R55398) (SUB FOR R48979)
3	R26546	1	BACK-UP RING	-
4	B2762R	1	O-Ring	-
5	R41055	1	SPRING	-
6	R48980	1	PISTON	-
7	R55398	1	PIN	(SUB FOR R48981)
8	R48978	1	GUIDE	-
9	R51411	1	Pin	-
10	R51410	1	CAM FOLLOWER	-
11	R51409	1	SPACER	-
12	AR82572	1	HOUSING	(MARKED R65284)
12	AR40827	1	HOUSING	(MARKED R40499) (SUB AR82572, R59629, R65289, R66916, R49187, R27166, R41057, (2) R65501, (2) R65502 AND R74695)
13	R26484	6	Back-Up Ring	(4 USED PRESSURE, 2 USED RETURN)
14	R65286	6	O-RING	(4 USED PRESSURE, 2 USED RETURN) (SUB FOR A3917R, THIS APPLICATION)
15	R51409	4	SPACER	-
16	34H242	4	Spring Pin	1/8" X 7/16"
17	AR86535	4	Valve	(SUB FOR AR56120, AR70150 OR AR78396)
18	R65501	2	Spring	-
18	R65502	2	Spring	(SUB FOR R44310)
19	R41156	4	GUIDE	-
20	R27166	4	O-Ring	-
21	R41057	4	BACK-UP RING	-
22	R26149	6	PACKING	-
23	34H284	1	Spring Pin	3/16" X 1-1/4"
24	R52549	1	SHUT-OFF VALVE	FLOW CONTROL
25	R41549	1	SPRING	-
26	R52547	1	VALVE	METERING, (USE WITH R40499)
26	R65289	1	VALVE	METERING, (USE WITH R65284)
27	P46051	1	O-Ring	-
28	R40937	1	Back-Up Ring	-
29	R41339	1	Shim	-
30	R34812	1	O-Ring	-
31	AR40688	1	COVER	(MARKED R49708) (USE WITH R40499)
31	AR85628	1	COVER	(MARKED R59629) (USE WITH R65284) (SUB R27166, R41057, R59629, R65501, R65502, R66916 AND R74695)
31	R74695	1	Washer	(USE WITH R59629)
31	R41933	1	LABEL	REMOTE CYLINDER, L.H.
31	R44315	1	LABEL	REMOTE CYLINDER, R.H.
32	34H231	1	SPRING PIN	3/32" X 3/4"
33	R41338	1	ARM	(SUB R62652)
34	19H988	4	CAP SCREW	3/8" X 1-1/4"
35	34H275	1	Spring Pin	3/16" X 1/2"

SELECTIVE CONTROL VALVE HOUSING AND VALVES (TRACTOR SERIAL NO. -030271) [04E18]
