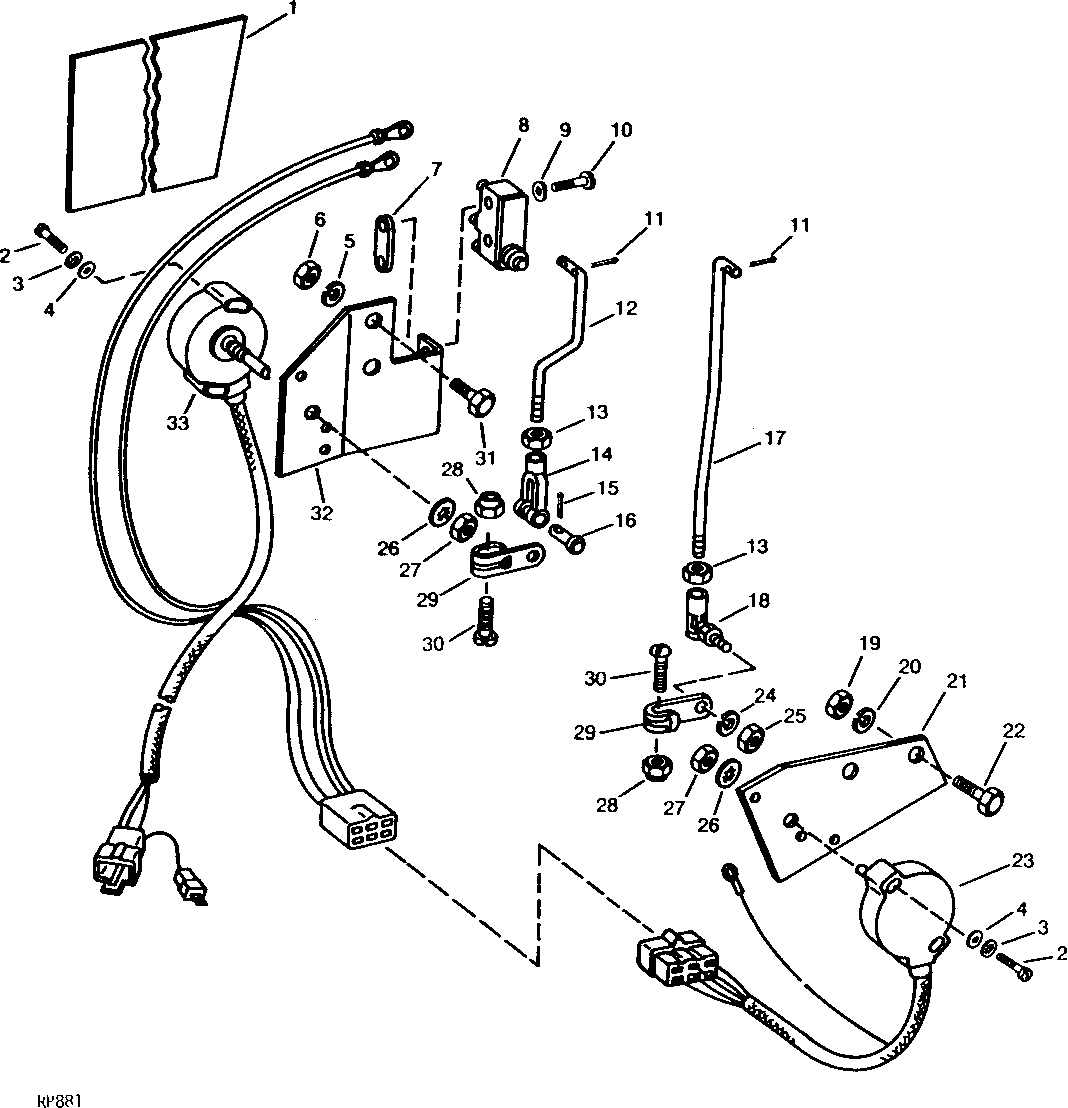

ROTARY SWITCHES AND BRACKETS (POWER FRONT WHEEL DRIVE) [02C12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R52982	1	ISOLATOR	-
2	21H1348	4	Screw	0.138" X 1-1/8"
3	12H321	4	Washer	0.138"
4	24H1281	4	Washer	5/32" X 3/8" X 0.049"
5	12H304	2	Lock Washer	3/8"
6	14H812	2	NUT	3/8"
7	R44016	1	STRAP	-
8	AR62072	1	Switch	-
9	12H321	2	Washer	0.138"
10	21H1348	2	Screw	0.138" X 1-1/8"
11	11M7077	2	Cotter Pin	0.063" X 0.984"
12	R54207	1	ROD	(SPEED RANGE)
13	14H631	2	Nut	0.190"
14	L987T	1	YOKE	-
15	11M7077	1	Cotter Pin	0.063" X 0.984"
16	L985T	1	Pin Fastener	-
17	R54208	1	ROD	(SPEED CHANGE)
18	AR45316	1	BALL JOINT	-
19	14H812	2	NUT	3/8"
20	12H304	2	Lock Washer	3/8"
21	R59946	1	BRACKET	(A) (SUB FOR R54572)
21	R54573	1	BRACKET	(B) (SUB FOR R59947)
22	19H2552	2	CAP SCREW	(A) 3/8" X 1-1/8"
22	19H2023	2	CAP SCREW	(B) 3/8" X 3-1/4"
23	AR81190	1	SWITCH	(A) RANGE, (ALSO ORDER R59946, (2) 21H1348, (2) 24H1281 AND (2) 12H321) (SUB FOR AR61987 OR AR72383)
24	12H246	1	LOCK WASHER	0.190"
25	14H631	1	Nut	0.190"
26	12H310	2	Lock Washer	3/8"
27	R44025	2	Nut	-
28	T19977	2	LOCK NUT	-
29	R42985	2	ARM	-
30	21H1315	2	Screw	0.164" X 3/4"
31	19H1731	2	Cap Screw	3/8" X 1"
32	R54571	1	BRACKET	(SUB FOR R54571)
32	R59945	1	BRACKET	-
33	AR81189	1	SWITCH	SPEED, (SUB FOR AR65370 OR AR72382) (ALSO ORDER R59945, (2) 21H1348, (2) 24H1281 AND (2) 12H321)

ROTARY SWITCHES AND BRACKETS (POWER FRONT WHEEL DRIVE) [02C12]
