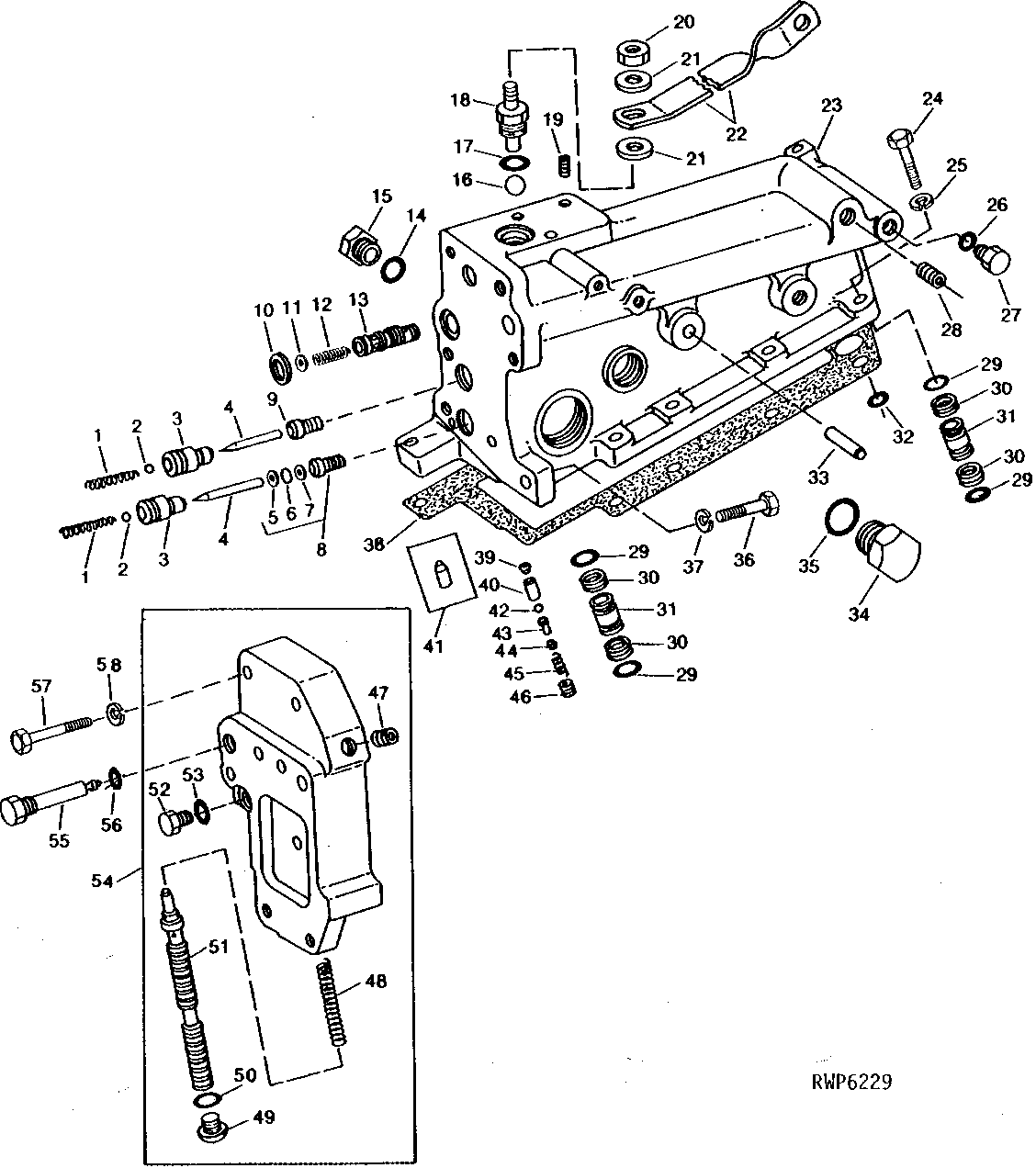

ROCKSHAFT CONTROL VALVE HOUSING (TRACTOR SERIAL NO. 016903- ) [04D01]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R59082	2	SPRING	-
2	400R	2	Ball	6MM (1/4")
3	R59083	2	VALVE	(SUB R28124)
4	R62336	2	SHAFT	(SUB FOR R59111)
5	R26976	1	O-Ring	-
6	R26977	1	BACK-UP RING	-
7	R41337	1	WASHER	-
8	AR78483	1	GUIDE	PRESSURE, (SUB FOR AR31703)
9	R31024	1	GUIDE	RETURN
10	R26149	5	PACKING	-
11	B1664R	1	SHIM	-
12	R26566	1	SPRING	-
13	R57675	1	Valve	FLOW CONTROL
14	R26375	1	O-Ring	-
15	R39112	1	Fitting	-
16	M886T	1	Ball	16MM (5/8")
17	R26906	1	O-Ring	-
18	R56916	1	PLUG	-
19	15H558	4	Pipe Plug	1/8"
19	15H571	4	PIPE PLUG	3/8"
20	14H1040	1	Nut	1/2"
21	R58230	2	LOCK WASHER	(SOUND-GARD BODY)
22	R58234	1	LINK	(SOUND-GARD BODY)
23	AR73901	1	HOUSING	(MARKED R60179) (SUB AR78507 AND 19H2128)
23	AR78507	1	HOUSING	(MARKED R63573, R66893 OR R71585) (ALSO ORDER 19H2128)
24	19H1732	6	Cap Screw	3/8" X 1-1/4"
24	19H2128	6	CAP SCREW	3/8" X 3"
24	19H2054	6	CAP SCREW	3/8" X 4-3/4"
25	12H304	8	Lock Washer	3/8"
26	R26448	1	O-Ring	-
27	R27218	1	Fitting Plug	-
28	15H571	1	PIPE PLUG	3/8"
29	R27166	4	O-Ring	-
30	R41057	4	BACK-UP RING	-
31	R40945	2	VALVE	-
32	T17882	1	WASHER	-
33	R60317	1	GROOVE PIN	-
33	R71583	1	Dowel Pin	-
34	R27175	1	Drain Plug	-
35	F3171R	1	O-Ring	-
36	19H2731	1	Cap Screw	7/16" X 1-3/8"
37	12H293	1	Lock Washer	7/16"
38	R67121	1	GASKET	(SUB FOR R57665)
39	R61349	1	VALVE SEAT INSERT	THERMO RELIEF VALVE
40	R61350	1	BUSHING	THERMO RELIEF VALVE
41	R40893	1	VALVE SEAT INSERT	THERMO RELIEF VALVE
42	R41776	1	BALL	2MM (3/32")
43	R41777	1	PIN	-
44	R40895	1	SHIM	0.25MM (.010")
45	R59766	1	SPRING	-
46	R40894	1	ORIFICE	THERMO RELIEF VALVE
47	15H558	1	Pipe Plug	1/8"
48	R28914	1	SPRING	-
49	R33138	1	Fitting	-
50	R26375	1	O-Ring	-
51	R60096	1	VALVE	DIRECTIONAL
52	R27094	1	Drain Plug	-
53	R26286	1	O-Ring	-
54	AR73899	1	COVER	(MARKED R60081 AND R60334)
55	R60420	1	PLUG	FLOW CONTROL VALVE ADJUSTING
56	R26448	1	O-Ring	-
57	19H1899	2	Cap Screw	7/16" X 2"
57	19H1146	2	Cap Screw	7/16" X 2-1/2"
57	19H2731	2	Cap Screw	7/16" X 1-3/8"
58	12H293	5	Lock Washer	7/16"

ROCKSHAFT CONTROL VALVE HOUSING (TRACTOR SERIAL NO. 016903- ) [04D01]
