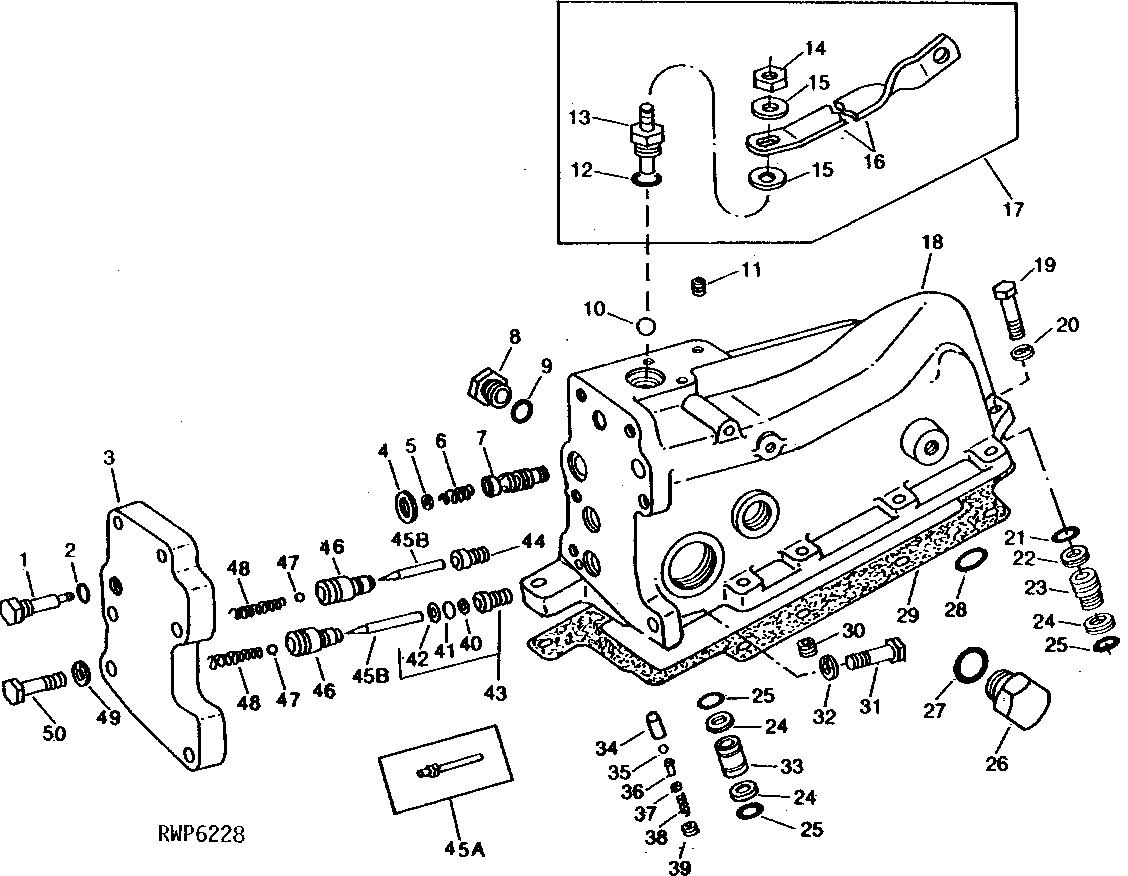

ROCKSHAFT CONTROL VALVE HOUSING (TRACTOR SERIAL NO. -016902) [04C23]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R40881	1	Fitting	-
2	R26448	1	O-Ring	-
3	R59080	1	COVER	-
3	R50065	1	VALVE COVER	(SUB R59080 AND (2) R59082)
4	R26149	5	PACKING	-
5	B1664R	1	SHIM	-
6	R26566	1	SPRING	-
7	R43791	1	CONTROL VALVE	(FLOW CONTROL)
7	R57675	1	Valve	(FLOW CONTROL)
8	R39112	1	Fitting	-
9	R26375	1	O-Ring	-
10	M886T	1	Ball	16MM (5/8")
11	15H558	4	Pipe Plug	1/8"
11	15H571	4	PIPE PLUG	3/8"
12	R26906	1	O-Ring	-
13	AR26761	1	PLUG	(SUB R56916, THIS APPLICATION)
13	R56916	1	PLUG	-
14	14H1040	1	Nut	1/2"
15	R58230	2	LOCK WASHER	-
16	R58234	1	LINK	-
17	AR68810	1	KIT	ROCKSHAFT CONTROL STABILIZER (ALSO INCLUDES AR68010, (4) R41076 AND (5) R42093)
18	AR76340	1	HOUSING	(MARKED R57899, R50064, AR94165 OR AR76277) (SUB FOR AR54329)
18	AR73901	1	HOUSING	(MARKED R60179) (SUB FOR AR69931) (SUB AR78507 AND 19H2128)
19	19H1732	9	Cap Screw	3/8" X 1-1/4"
19	19H1732	6	Cap Screw	3/8" X 1-1/4"
19	19H2128	9	CAP SCREW	3/8" X 3"
19	19H2054	9	CAP SCREW	3/8" X 4-3/4"
20	12H304	9	Lock Washer	3/8"
20	12H304	8	Lock Washer	3/8"
21	R27564	1	O-Ring	-
21	R27166	1	O-Ring	-
22	R45925	1	Back-Up Ring	-
22	R41057	1	BACK-UP RING	-
23	R45924	1	BUSHING	-
23	R40945	1	VALVE	-
24	R41057	3	BACK-UP RING	-
25	R27166	3	O-Ring	-
26	R27175	1	Drain Plug	-
27	F3171R	1	O-Ring	-
28	T17882	1	WASHER	-
29	R40896	1	GASKET	-
29	R67121	1	GASKET	(SUB FOR R57665)
30	R66895	1	Orifice	(USE WITH AR94165)
31	19H2731	1	Cap Screw	7/16" X 1-3/8"
32	12H293	1	Lock Washer	7/16"
33	R40945	1	VALVE	THERMAL RELIEF
34	R40893	1	VALVE SEAT INSERT	(SUB R61349 AND R61350)
35	R41776	1	BALL	2MM (3/32")
36	R41777	1	PIN	-
37	R40895	1	SHIM	0.25MM (.010")
38	R59766	1	SPRING	-
39	R40894	1	ORIFICE	-
40	R41337	1	WASHER	-
41	R26977	1	BACK-UP RING	-
42	R26976	1	O-Ring	-
43	AR78483	1	GUIDE	PRESSURE, (SUB FOR AR31703)
44	R31024	1	GUIDE	RETURN
46	R44299	2	VALVE	(SUB R28124)
46	R59083	2	VALVE	(SUB R28124)
47	400R	2	Ball	6MM (1/4")
48	R26565	2	COMPRESSION SPRING	-
48	R59082	2	SPRING	-
49	12H293	5	Lock Washer	7/16"
50	19H1978	5	Cap Screw	7/16" X 1-1/2"
45A	R44298	2	SHAFT	-
45B	R62336	2	SHAFT	(SUB FOR R59111)

ROCKSHAFT CONTROL VALVE HOUSING (TRACTOR SERIAL NO. -016902) [04C23]
