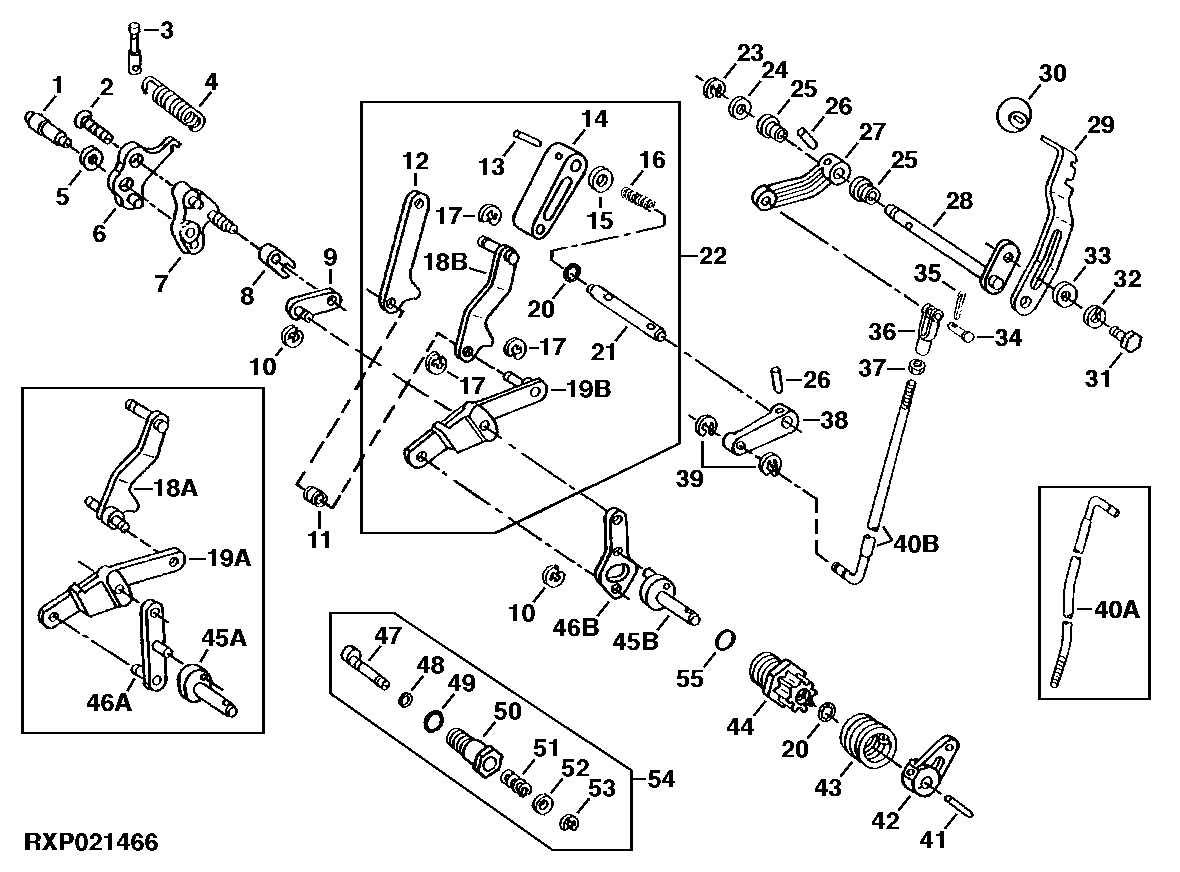

ROCKSHAFT CONTROL LINKAGE AND LOAD CONTROL (TRACTOR SERIAL NO. -021797) [04D04]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R64296	1	SHAFT	VALVE CAM
1	R40949	1	SHAFT	VALVE CAM, (SUB R64296)
2	T22228	1	SCREW	-
3	R41108	1	PIN FASTENER	-
3	R66894	1	PIN	-
4	R53033	1	SPRING	(SUB R60730)
4	R60730	1	Extension Spring	-
5	24H1321	1	Shim	0.018"
6	AR40676	1	LEVER	(B)
7	AR40754	1	LINK	(B) (SUB AR81783, R64845, T519T AND R64843)
8	R40885	1	NUT	-
9	AR40675	1	PIN FASTENER	-
10	R72653	2	Snap Ring	(SUB FOR M2396T)
11	R41661	1	BUSHING	-
12	R52828	1	LINK	LOAD SELECTOR, INNER
13	R56504	1	Spring Pin	7/32" X 1"
14	R56821	1	ARM	(A) (SUB FOR R52824)
15	24H1341	1	Washer	17/32" X 15/16" X 0.060"
16	B423R	1	EXTENSION SPRING	-
17	R72653	3	Snap Ring	(SUB FOR M2396T)
20	R394R	2	O-Ring	(NOT INCLUDED IN AR86775)
21	R52823	1	SHAFT	-
22	AR86775	1	STARTER MOTOR KIT	LOAD SELECTIVE CONTROL LINKAGE
23	P44982	1	Piston Ring	(SUB FOR R26871)
24	24H1227	1	Washer	17/32" X 13/16" X 0.060"
25	R41076	2	Grommet	-
26	R56504	2	Spring Pin	-
27	R40915	1	Lever	-
28	AR74767	1	SHAFT	(SUB FOR AR55625)
29	R51353	1	LEVER	(A)
30	R49932	1	KNOB	LOAD SELECTOR CONTROL LEVER
31	19H1813	1	CAP SCREW	5/16" X 5/8"
32	12H303	1	Lock Washer	5/16"
33	24H1294	1	Washer	11/32" X 1-1/8" X 1/16"
34	R72660	1	Pin Fastener	(SUB FOR R662R)
35	11H233	1	COTTER PIN	3/32" X 1/2"
36	R42282	1	Yoke	(SUB T54033 AND R82766)
37	14H882	1	Nut	5/16"
38	R61592	1	ARM	(A)
38	R40892	1	LEVER	(A)
39	R72654	2	Snap Ring	(SUB FOR R27507)
41	34H284	1	Spring Pin	3/16" X 1-1/4"
42	R51359	1	Control Lever	ROCKSHAFT OPERATING, LOWER
43	R51747	1	SPRING	-
44	R52174	1	BEARING HOUSING W/O BEARING	VALVE OPERATING LEVER SHAFT
47	R55373	1	ECCENTRIC	-
48	A4365R	1	O-Ring	-
49	R26906	1	O-Ring	-
50	R55374	1	BUSHING	-
51	R50559	1	SPRING	-
52	24H1303	1	WASHER	13/32" X 11/16" X 0.065"
53	R72653	1	Snap Ring	-
54	AR59026	1	BUSHING	-
55	U13639	1	O-Ring	-
18A	AR58236	1	LINK	LOAD SELECTOR, OUTER, (SUB AR72294 AND AR72293)
18B	AR72294	1	LINK	LOAD SELECTOR, OUTER
19A	AR55084	1	LINK	VALVE OPERATING, (SUB AR72293 AND AR72294)
19B	AR72293	1	LINK	VALVE OPERATING
40A	R52657	1	ROD	(A)
40B	R61591	1	HOOK BOLT	(A)
45A	R54128	1	SHAFT	ROCKSHAFT VALVE OPERATING, (SUB AR79505 AND AR72292)
45B	AR79505	1	SHAFT	ROCKSHAFT VALVE OPERATING, (SUB FOR AR72291)
46A	AR40753	1	LINK	OPERATING, (SUB AR72292 AND AR79505)
46B	AR72292	1	LINK	OPERATING
