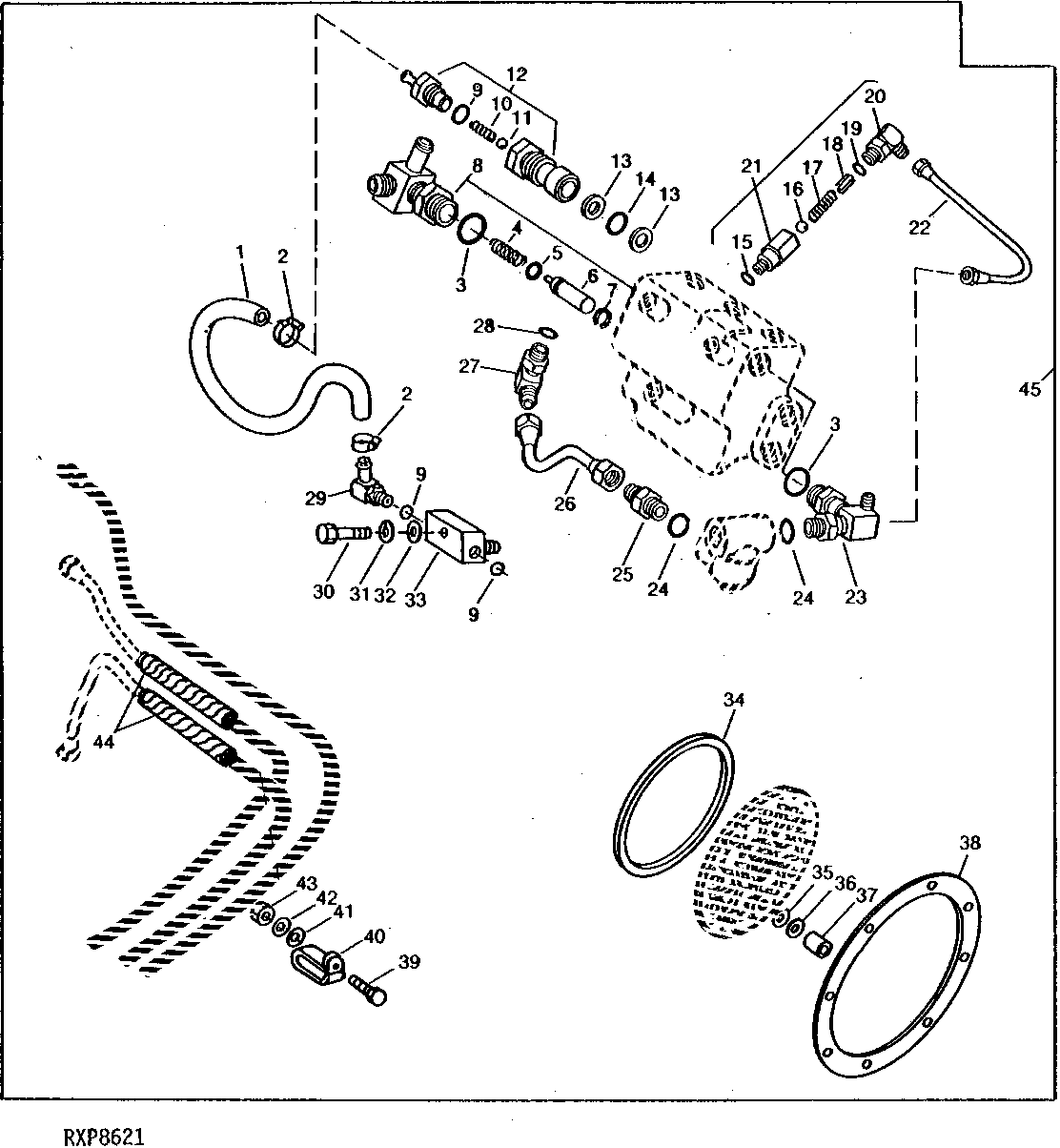

POWER FRONT WHEEL DRIVE REPLACEMENT KIT [03G21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R66067	1	HYDRAULIC HOSE	-
2	TY22462	2	Clamp	(SUB FOR AR48236)
3	U17409	2	O-Ring	-
4	F3463R	1	SPRING	-
5	R45638	1	O-Ring	-
6	R64491	1	VALVE	-
7	B474R	1	SNAP RING	-
8	AR80591	1	TEE FITTING	(A)
8	AR80593	1	FITTING	-
9	R26448	3	O-Ring	-
10	A4816R	1	SPRING	-
11	R26552	1	Ball	-
12	AR81968	1	BLEED VALVE	-
13	U40727	2	BACK-UP RING	-
14	P47908	2	O-Ring	-
15	R26286	1	O-Ring	-
16	R42849	1	Ball	-
17	R227R	1	Spring	-
18	R55458	1	Guide	-
19	R26448	1	O-Ring	-
20	AR58184	1	ELBOW FITTING	-
21	AR85464	1	CHECK VALVE	(A)
21	R66031	1	HOUSING	-
22	AR85463	1	LINE	-
23	AR81935	1	TEE FITTING	(SUB AR86975 AND R36926)
24	R26906	2	O-Ring	-
25	R31665	1	Fitting	-
26	AR56611	1	OIL LINE	-
27	AT32332	1	Elbow Fitting	-
28	R26375	1	O-Ring	-
29	AR85574	1	ELBOW FITTING	-
30	19H1765	1	Cap Screw	3/8" X 1-3/4"
31	12H304	1	Lock Washer	3/8"
32	24M7096	1	Washer	10.500 X 18 X 1.600 MM
33	AR80595	1	FITTING	-
34	R42877	2	PACKING	-
35	R29354	18	O-Ring	(SUB FOR R42763)
36	R35473	18	Back-Up Ring	(SUB R73101, THIS APPLICATION)
37	R42927	2	PISTON	-
38	R42764	2	GASKET	-
39	19H2021	4	Cap Screw	3/8" X 5/8"
40	R65207	4	Clamp	-
41	12H304	4	Lock Washer	3/8"
42	24H1305	4	Washer	13/32" X 13/16" X 0.065"
43	14H1076	4	Nut	3/8"
44	R67366	4	GUARD	(SUB R72341)
45	-	1	Part 47	( AR89501 CANCELLED, ORDER COMPONENT PARTS)
