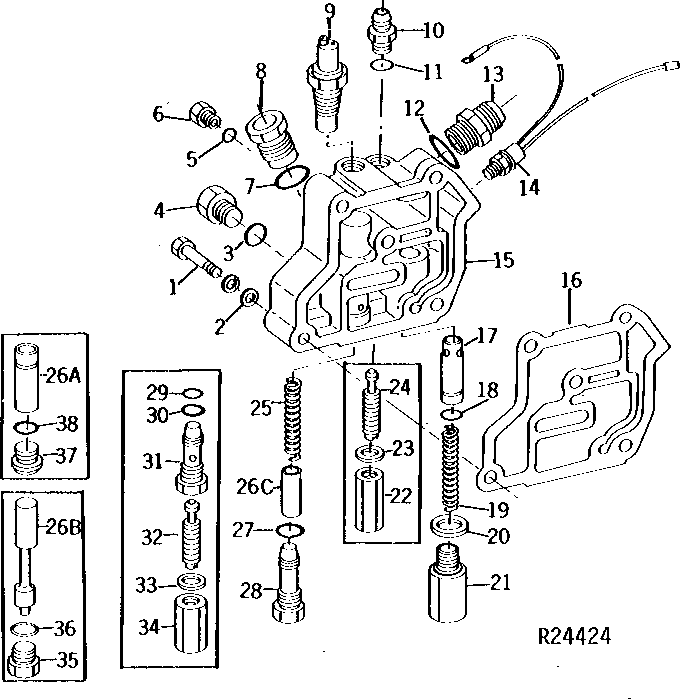

OIL FILTER VALVE HOUSING (QUAD-RANGE AND SYNCRO-RANGE) [03D14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2055	3	CAP SCREW	7/16" X 2-1/4"
1	19H1828	1	CAP SCREW	7/16" X 4"
1	12H293	5	Lock Washer	7/16"
1	19H2731	1	Cap Screw	7/16" X 1-3/8"
2	24H1325	5	Washer	15/32" X 59/64" X 0.065"
3	R26375	1	O-Ring	(A)
4	R39112	1	Fitting	(A)
5	R26286	1	O-Ring	-
6	R27094	1	Drain Plug	-
7	B2762R	1	O-Ring	-
8	R76494	1	FITTING	(SUB FOR R33610)
9	AR61610	1	PRESSURE SWITCH	-
10	R27237	1	Fitting	-
10	R57298	1	FITTING	(USE WHEN AR68786 HYDRAULIC BYPASS VALVE HAS BEEN INSTALLED)
11	R26375	1	O-Ring	-
12	F3171R	1	O-Ring	-
13	R27267	1	Fitting	-
14	RE14191	1	PRESSURE SWITCH	(SUB FOR AR61970)
14	R56226	1	BLADE	-
14	T28585	1	Electrical Connector Assy	-
15	RE238218	1	HOUSING	(SUB FOR AR72973) (MARKED R51460, R53114) (SUB FOR AR69268, R57658, R57657, R60151 OR R60152)
15	AR73905	1	HOUSING	(MARKED R60401 AND R60402) (INCLUDES R26375 AND R39112)
16	R51461	1	GASKET	-
16	R63976	1	GASKET	(A) (SUB FOR R57656)
17	R57560	1	VALVE	(ALSO ORDER R33259) (SUB FOR R54042)
18	R33259	1	O-Ring	-
19	R51574	1	SPRING	-
20	R1742R	1	WASHER	-
21	R51577	1	FITTING PLUG	-
22	F2847R	1	NUT	-
23	F2846R	1	WASHER	-
24	R39587	1	SET SCREW	-
25	R28914	1	SPRING	-
27	R26375	1	O-Ring	-
28	R60396	1	FITTING	-
29	R28776	1	O-Ring	(A) (B)
30	R26375	1	O-Ring	(B)
31	R60093	1	PLUG	(A) (B) (ORDER AR72894 OR RE238218)
32	R39587	1	SET SCREW	(B)
33	F2846R	1	WASHER	(B)
34	F2847R	1	NUT	(B)
35	R39112	1	Fitting	-
36	R26375	1	O-Ring	-
37	R33138	1	Fitting	-
38	R26375	1	O-Ring	-
..	AR72894	1	BREAKAWAY COUPLER	MANUAL BYPASS VALVE
26A	R57559	1	VALVE	(SUB FOR R33162)
26B	R56781	1	VALVE	(ORDER AR72894)
26C	R60092	1	CHECK VALVE	(A) (B)

OIL FILTER VALVE HOUSING (QUAD-RANGE AND SYNCRO-RANGE) [03D14]

Нет текстового описания
