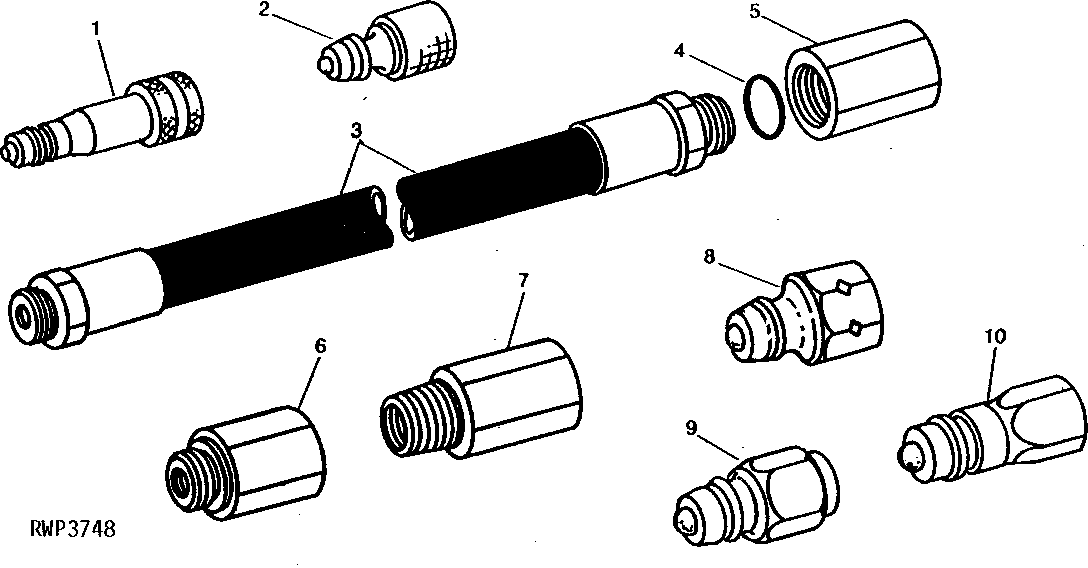

IMPLEMENT HYDRAULIC OIL LINES AND FITTINGS [04F20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R21722	1	O-Ring	(INCLUDED IN AR98202)
1	RE11457	1	Adapter Fitting	IHC TO ISO
1	U11647	1	O-Ring	(INCLUDED IN RE11457)
1	AR98202	1	Adapter Fitting	JOHN DEERE TO ISO
2	AR98201	1	Hydr. Quick Coupler Plug	ISO TO JOHN DEERE
2	R21722	1	O-Ring	(INCLUDED IN AR98201, RE11458 AND RE11463)
2	R71387	1	Washer	(INCLUDED IN AR98201)
2	RE11456	1	Adapter Fitting	IHC TO JOHN DEERE
2	RE11458	1	Adapter Fitting	JOHN DEERE TO IHC
2	RE11463	1	Adapter Fitting	ISO TO IHC
3	AR28755	1	Hydraulic Hose	10 X 914MM (3/8" X 36") (SUB TY3019)
3	R36659	1	Hydraulic Hose	13 X 914MM (1/2" X 36")
3	R36658	1	Hydraulic Hose	13 X 610MM (1/2" X 24")
3	AR28754	1	HYDRAULIC HOSE	10 X 610MM (3/8" X 24") (SUB TY3018)
4	R26375	1	O-Ring	-
5	R30815	1	Fitting	3/4" THREAD
6	R30817	1	Adapter Fitting	3/4"-16UNF MALE X 1/2"-14NPT FEMALE
7	R30816	1	Adapter Fitting	1/2"-14NPT MALE X 3/4"-16UNF FEMALE
8	AR93820	1	Hydr. Quick Coupler Plug	JOHN DEERE, 3/4"-16 UNF
9	RE11447	1	Hydr. Quick Coupler Plug	JOHN DEERE, 1/2"-14NPT
10	AR94522	1	Hydr. Quick Coupler Plug	ISO, 3/4"-16UNF
10	C14618	1	Hydr. Quick Coupler Plug	ISO, 1/2"-14 NPSF

IMPLEMENT HYDRAULIC OIL LINES AND FITTINGS [04F20]
