Открытый узел

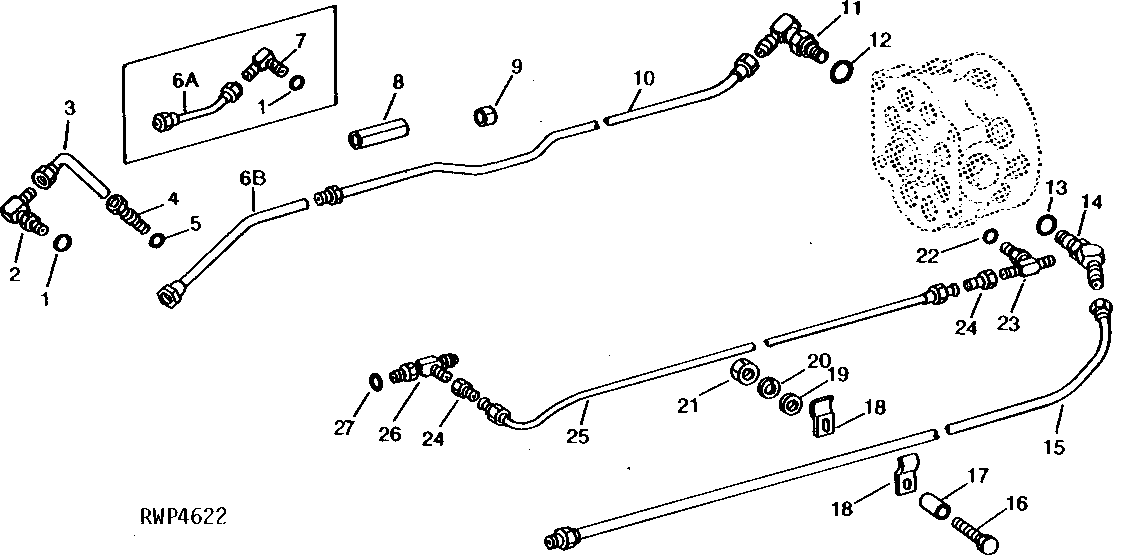

HYDRAULIC PUMP LINES [04C13]

HYDRAULIC PUMP LINES [04C13]

HYDRAULIC PUMP LINES [04C13]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

HYDRAULIC PUMP LINES [04C13]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F3171R	2	O-Ring	-
2	AT32331	1	Elbow Fitting	(SUB FOR AR26723)
3	AR59628	1	OIL LINE	(A) (C) (E)
3	AR69626	1	Oil Line	(A) (C) (E) (SUB AR103687 AND AR57030)
3	AR59629	1	OIL LINE	(B) (E)
3	AR69628	1	OIL LINE	(B) (E) (SUB RE10096)
4	R33610	1	FITTING	(A) (C) (SUB R76494)
5	B2762R	1	O-Ring	(A) (C)
7	AR32331	1	ELBOW FITTING	(SUB FOR AR26723)
8	T21959	1	Isolator	-
9	T29317	1	ISOLATOR	-
9	TY22467	2	Clamp	(SUB FOR AR21839)
9	R43479	1	SPACER	-
9	R76477	1	Tie Band	(SUB FOR R45440)
10	AR62084	1	OIL LINE	(B) (D) (G)
10	AR65207	1	OIL LINE	(A) (C) (D) (G)
10	AR71320	1	OIL LINE	(B) (G) (ALSO ORDER R43479 AND R76477) (SUB FOR AR60327)
10	AR71319	1	OIL LINE	(A) (C) (G) (ALSO ORDER R43479 AND R76477) (SUB FOR AR64621)
10	AR71321	1	OIL LINE	(A) (G) (ALSO ORDER R43479 AND R76477) (SUB FOR AR58546)
10	AR58547	1	OIL LINE	(A) (D) (G)
11	AR27888	1	ELBOW FITTING	-
12	F3171R	1	O-Ring	-
13	R26906	1	O-Ring	-
13	F3171R	1	O-Ring	(REPLACEMENT PUMP WITH SERIAL PLATE)
14	AT32338	1	Fitting	(SUB FOR AR26828)
14	AT49331	1	Elbow Fitting	(REPLACEMENT PUMP WITH SERIAL PLATE)
15	AR73921	1	OIL LINE	(F) (SUB FOR AR60377)
16	R52028	1	CAP SCREW	-
17	28H1878	1	SPACER	3/8" X .44"
18	R47576	2	CLAMP	-
19	24M7096	1	Washer	10.500 X 18 X 1.600 MM
20	12H304	1	Lock Washer	3/8"
21	14H812	1	NUT	3/8"
22	R26287	1	O-Ring	-
23	AR56615	1	TEE FITTING	-
24	R64170	2	ADAPTER FITTING	-
25	AR87535	1	OIL LINE	(A) (C) (H) (ALSO ORDER (2) R64170) (SUB FOR AR60482 OR AR79713) (NYLON)
25	AR79711	1	OIL LINE	(B) (H) (ALSO ORDER (2) R64170) (SUB FOR AR60483) (NYLON)
26	AR30762	1	Tee Fitting	(A) (C)
26	AR59519	1	TEE FITTING	(B)
27	R26286	1	O-Ring	-
6A	AR60057	1	OIL LINE	(A) (F)
6B	AR66532	1	OIL LINE	(A) (C) (F)
