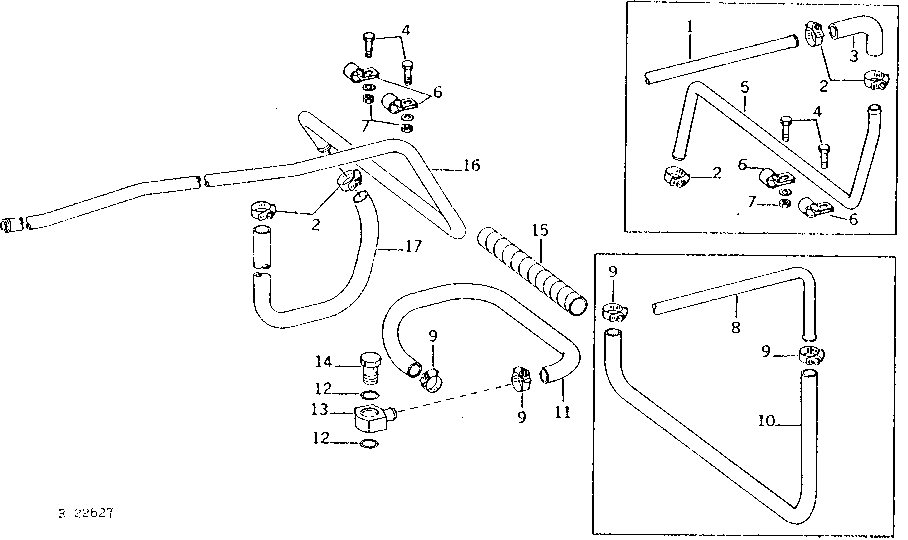

HYDRAULIC COOLER RETURN LINES, FRONT (QUAD-RANGE AND SYNCRO-RANGE WITH PERMA-CLUTCH AND POWER SHIFT) [04C06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R53662	1	Self-Locking Screw	(A) FRONT, (SUB R57719)
2	TY22467	4	Clamp	(A) (SUB FOR AR21839)
3	T22958	1	HOSE	(A) (SUB FOR T40167) (SUB L35843)
4	19H2552	2	CAP SCREW	3/8" X 1-1/8"
5	R53501	1	TUBE	(A) CENTER, (SUB R57719)
6	T27523	2	Clamp	(A)
7	14H812	2	NUT	3/8"
7	12H304	2	Lock Washer	3/8"
8	R53707	1	TUBE	HYDRAULIC RETURN, FRONT, (SUB R56675)
8	R56675	1	TUBE	HYDRAULIC RETURN, FRONT
9	TY22467	4	Clamp	(SUB FOR AR21839)
10	-	1	Part 12	737MM (29") (MAKE FROM TY22563) (SUB FOR R53613)
11	-	1	Part 13	737MM (29") (PUMP TO COOLER) (MAKE FROM TY22563) (SUB FOR R53613)
12	R27928	2	O-Ring	-
12	R27928	1	O-Ring	(TOP) (REPLACEMENT PUMP WITH SERIAL PLATE)
12	P47908	1	O-Ring	(BOTTOM) (REPLACEMENT PUMP WITH SERIAL PLATE)
13	R27926	1	FITTING	-
14	R27927	1	BOLT	-
15	R55144	1	Hose Guard	-
16	R57719	1	TUBE	(SUB FOR R57030)
17	-	1	Part 21	(A) 610MM (24") (MAKE FROM TY22563) (SUB FOR R52438)

HYDRAULIC COOLER RETURN LINES, FRONT (QUAD-RANGE AND SYNCRO-RANGE WITH PERMA-CLUTCH AND POWER SHIFT) [04C06]
