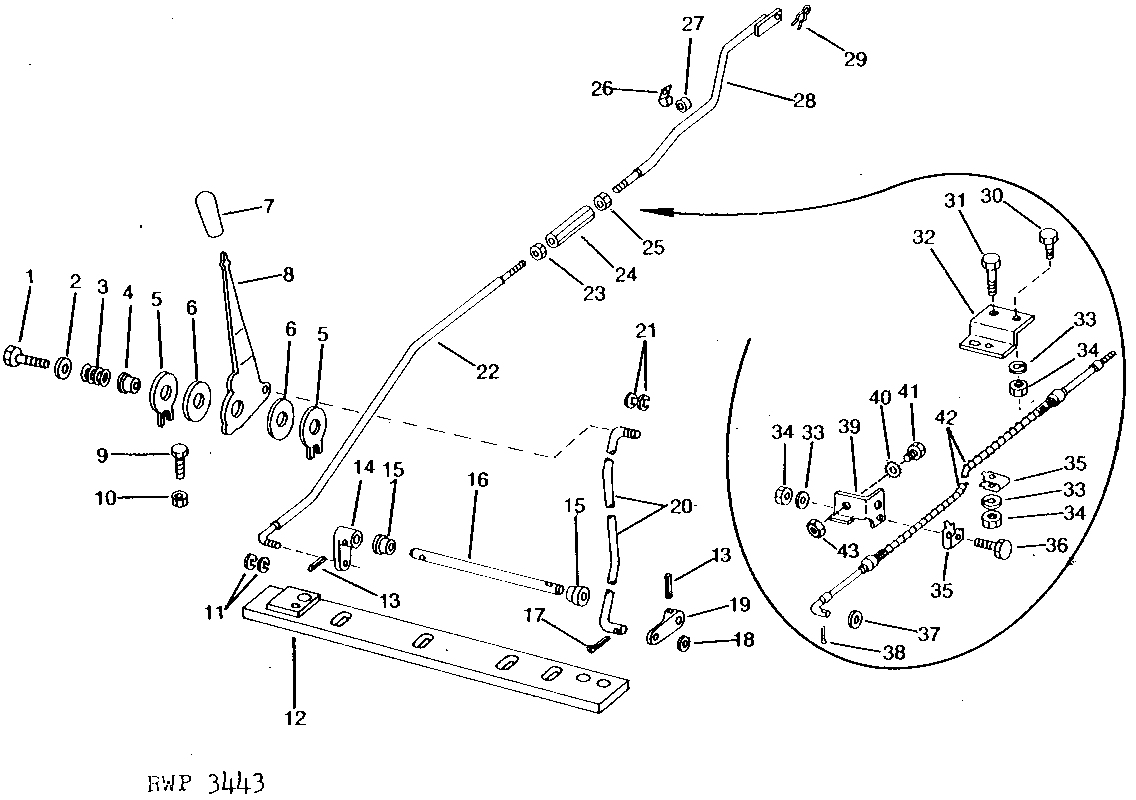

HAND SPEED CONTROL LEVER AND LINKAGES [01F08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R41920	1	Cap Screw	-
2	24M7096	1	Washer	10.500 X 18 X 1.600 MM
3	R31271	1	Compression Spring	-
4	R50227	1	Round Retainer	-
5	R52117	2	Washer	-
6	R50226	2	WASHER	(SUB R105814)
7	R161383	1	Knob	(SUB FOR R137740) (SUB FOR R50506, THIS APPLICATION)
8	R50505	1	LEVER	(SUB R75078)
9	19H2915	1	CAP SCREW	5/16" X 1-1/4"
10	14H611	1	Nut	5/16"
11	R72654	2	Snap Ring	-
12	AR56643	1	Strap	(A) (SUB FOR R52064)
13	34H279	2	SPRING PIN	3/16" X 13/16"
14	R51930	1	Arm	(SUB FOR R53726)
15	R41076	2	Grommet	-
16	R50219	1	Pin Fastener	-
17	11M7081	1	Cotter Pin	0.098" X 0.787"
18	24H1289	1	Washer	21/64" X 5/8" X 0.049"
19	R50225	1	ARM	-
20	R54487	1	ROD	-
21	R72653	1	Snap Ring	(SUB FOR M2396T)
22	R54281	1	Rod	-
23	14H649	1	Nut	1/4"
24	R52422	1	Turnbuckle	-
25	14H1025	1	Nut	1/4"
26	R53620	1	Bracket	-
27	R45537	1	Grommet	-
28	AR61179	1	ROD	(SUB RE11414)
29	R47646	1	Spring Locking Pin	-
30	19H1900	2	Cap Screw	(A) 5/16" X 3/4"
31	19H1849	1	Cap Screw	(A) 5/16" X 1-1/4"
32	R54282	1	Bracket	(A)
33	12H303	4	Lock Washer	(A) 5/16"
34	14H785	4	Nut	(A) 5/16"
35	R26870	2	CLAMP	(A)
36	19H1849	1	Cap Screw	(A) 5/16" X 1-1/4"
37	B1664R	1	SHIM	(A)
38	11M7077	1	Cotter Pin	(A) 0.063" X 0.984"
39	AR86977	1	Bracket	(A) (SUB FOR R51784)
40	12H310	1	Lock Washer	(A) 3/8"
41	19H1732	1	Cap Screw	(A) 3/8" X 1-1/4"
42	RE53286	1	PUSH PULL CABLE	(A) (SUB FOR AR56685, THIS APPLICATION)
43	14H1076	1	Nut	(A) 3/8" HS, SAE 8

HAND SPEED CONTROL LEVER AND LINKAGES [01F08]
