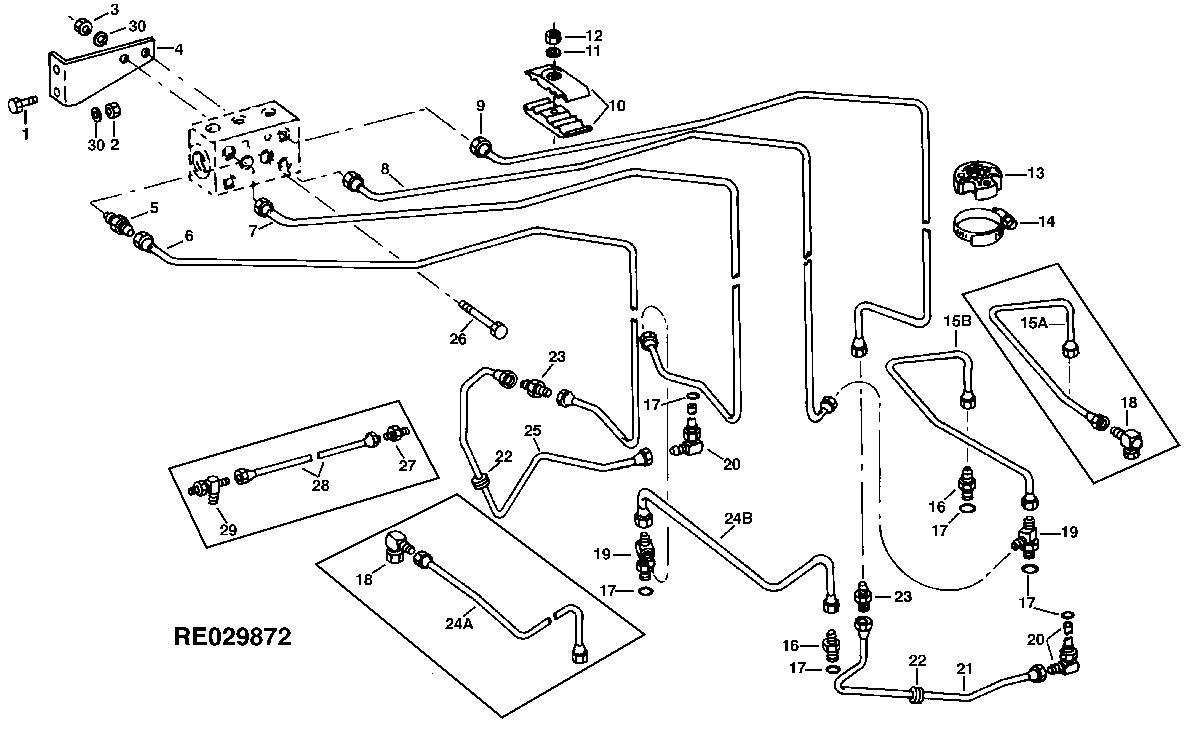

FRONT STEERING LINES (TRACTOR SERIAL NO. 010647- ) [03I03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1731	2	Cap Screw	3/8" X 1"
2	14H812	2	NUT	3/8"
3	14H812	2	NUT	3/8"
4	R57127	1	BRACKET	-
5	R27212	4	Fitting	-
6	AR67584	1	OIL LINE	L.H. FEEDBACK
6	AR79237	1	OIL LINE	L.H. FEEDBACK
7	AR67583	1	OIL LINE	L.H. PRESSURE
8	AR67582	1	OIL LINE	R.H. PRESSURE
9	AR67585	1	OIL LINE	R.H. FEEDBACK
10	R57109	2	CLAMP	-
11	14H812	1	NUT	3/8"
12	24H1305	1	Washer	13/32" X 13/16" X 0.065"
13	R56953	2	SPACER	(SUB R61522)
13	R61522	2	SPACER	-
14	AR21999	2	Hose Clamp	-
16	R27212	2	Fitting	-
17	R26448	6	O-Ring	-
18	AE24616	2	Elbow Fitting	90°, (SUB FOR AR67586)
19	AT37518	2	Tee Fitting	(SUB FOR AR59639)
20	AR67562	2	Elbow Fitting	90°
21	AR75570	1	Oil Line	(SUB FOR AR65411)
22	R41440	2	Grommet	-
23	R27095	2	Fitting	-
25	AR75571	1	OIL LINE	(SUB FOR AR65413)
25	AR79238	1	Oil Line	-
26	19H2023	2	CAP SCREW	3/8" X 3-1/4"
27	R39832	1	Adapter Fitting	-
28	AR56065	1	Oil Line	(NYLON)
29	AR56615	1	TEE FITTING	-
30	12H304	4	Lock Washer	3/8"
15A	AR64979	1	OIL LINE	R.H. CROSSOVER, (SUB AR87195)
15B	AR87195	1	Oil Line	R.H. CROSSOVER, (SUB FOR AR77893 OR AR64979)
24A	AR64978	1	OIL LINE	L.H. CROSSOVER, (SUB AR87194)
24B	AR87194	1	Oil Line	L.H. CROSSOVER, (SUB FOR AR77892 OR AR64978)

FRONT STEERING LINES (TRACTOR SERIAL NO. 010647- ) [03I03]
