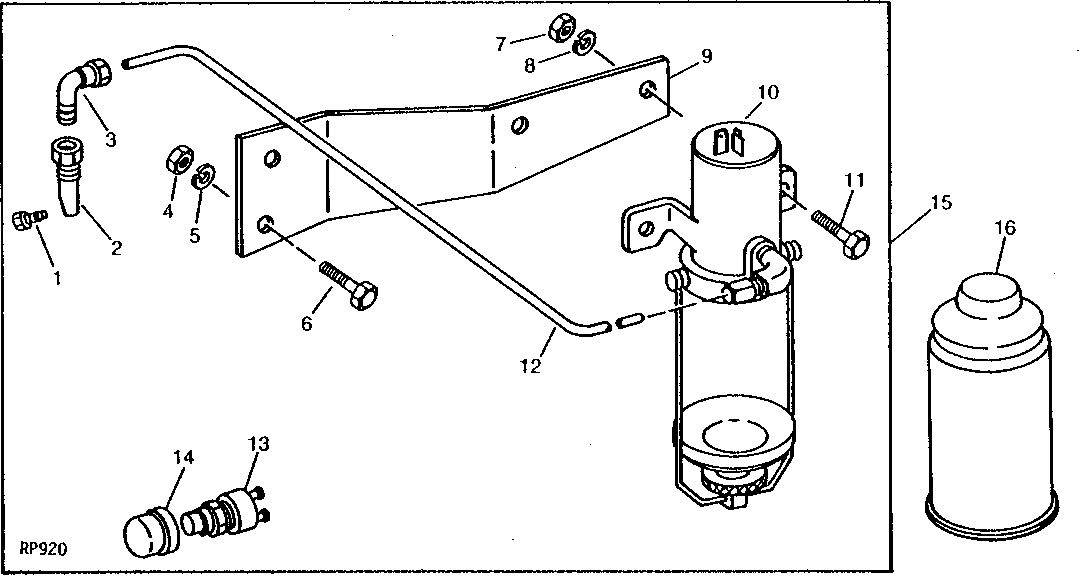

ELECTRICALLY OPERATED COLD WEATHER STARTING AID [01E04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T155858	1	Nozzle	(SUB FOR R28583)
2	R47160	1	Nozzle Holder	-
3	RE21790	1	Elbow Fitting	(SUB FOR AT25266)
4	14H812	2	NUT	3/8"
5	12H304	2	Lock Washer	3/8"
6	19H1936	2	Cap Screw	3/8" X 3/4"
7	14H785	1	Nut	5/16"
8	12H303	1	Lock Washer	5/16"
9	R56875	1	BRACKET	(SUB R63858)
10	AT57288	1	BAIL	-
10	T15712	1	O-Ring	-
10	T13119	1	O-Ring	-
10	RE48321	1	Adapter Fitting	-
10	T46726	1	GASKET	-
10	AT45396	1	BAIL	(SUB AT57288)
10	RE21790	1	Elbow Fitting	(SUB FOR AT25266)
10	RE48310	1	Starting Aid Solenoid	(SUB FOR AT39623)
11	19H2127	1	Cap Screw	5/16" X 7/8"
12	R79818	1	Tube	-
13	R39554	1	Switch	(SUB FOR AR46184 OR AR47373)
14	T55585	1	Cap	(SUB FOR AR67950)
15	AR68495	1	STARTING AID	KIT, ELECTRICALLY OPERATED STARTING AID
16	RE33636	1	Starting Fluid	(SUB FOR AR27814)
..	AR68499	1	KIT	WIRING (TO INSTALL ELECTRIC COLD WEATHER STARTING AID) (CONSISTS OF AR68016, AR68017, AR68019 AND AT68973)
..	RE42401	1	WIRE	(CONSISTS OF RE42399, RE42400, R32016 AND (10) R44302) (ALSO ORDER RE38391) (SUB FOR AR68499)

ELECTRICALLY OPERATED COLD WEATHER STARTING AID [01E04]
