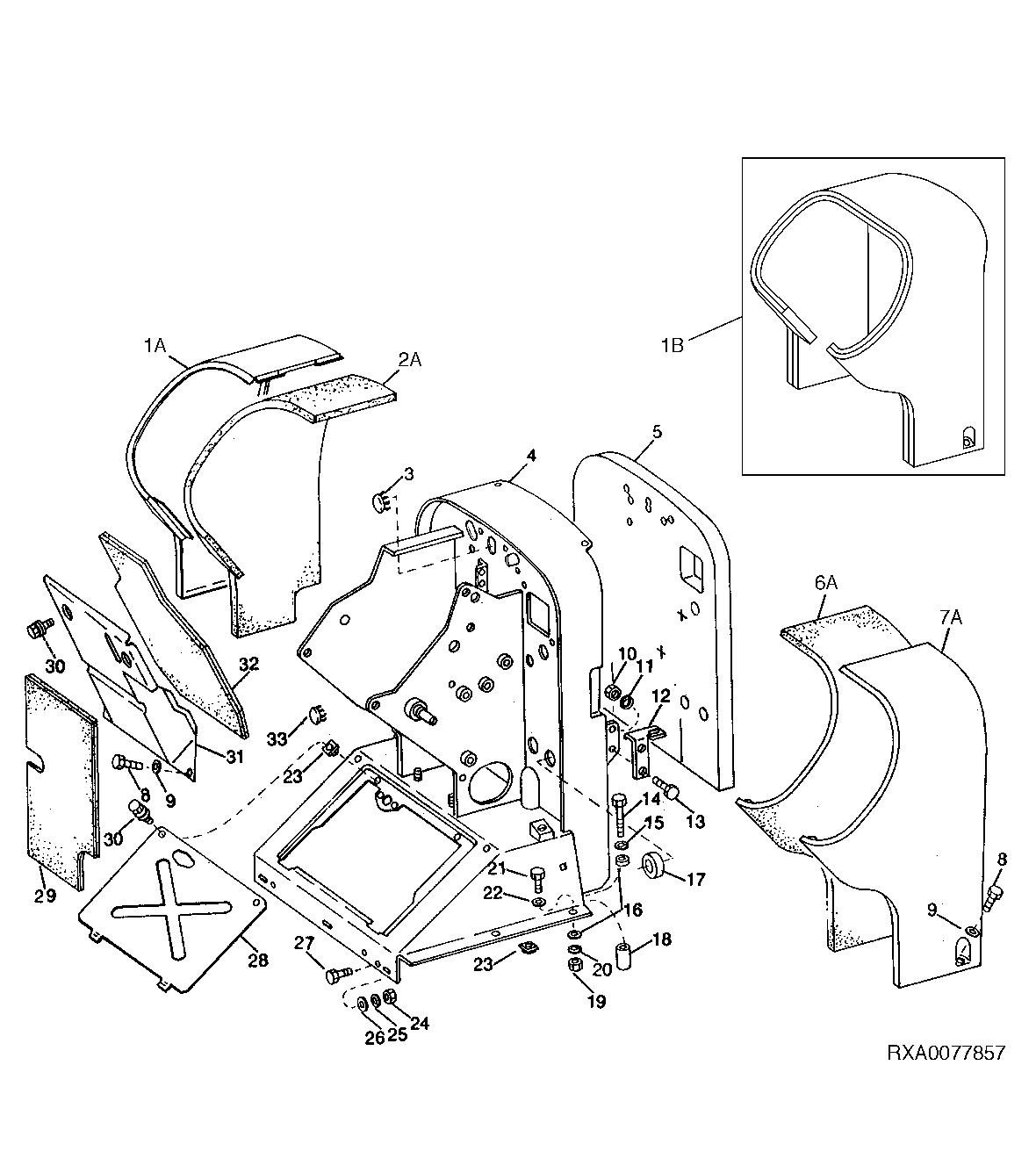

CONTROL SUPPORT, COVERS AND COWL [05F13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
3	R36590	1	PLUG	(C)
4	AR87158	1	SUPPORT	(SUB FOR AR62973, AR66272, AR68505, AR76504, AR78388 OR AR87187)
5	R51959	1	PAD	-
5	R56852	1	ISOLATOR	-
8	19H1905	4	Cap Screw	5/16" X 1"
9	24H1136	4	Washer	11/32" X 11/16" X 0.065"
10	14H812	4	NUT	3/8"
11	R52997	1	BRACKET	(B)
11	12H304	4	Lock Washer	3/8"
12	R54070	1	BRACKET	(B)
13	19H1134	4	CAP SCREW	3/8" X 3/4"
14	19H1733	2	CAP SCREW	3/8" X 2-1/2"
14	19H1726	2	Cap Screw	3/8" X 2-1/4"
15	12H304	2	Lock Washer	-
16	24H1305	4	Washer	13/32" X 13/16" X 0.065"
17	R51849	3	SPACER	-
18	R51439	2	Spacer	(B)
18	R56139	2	BUSHING	-
19	14H812	2	NUT	3/8"
20	12H304	2	Lock Washer	3/8"
21	19H1732	2	Cap Screw	3/8" X 1-1/4"
22	24H1884	2	Washer	13/32" X 13/16" X 0.120"
23	AR54482	4	Nut	-
24	14H812	1	NUT	3/8"
25	12H304	1	Lock Washer	3/8"
26	24H1305	1	Washer	13/32" X 13/16" X 0.065"
27	19H1732	1	Cap Screw	3/8" X 1-1/4"
28	R51438	1	Cover	-
29	R54140	1	PAD	-
29	R56853	1	PAD	-
30	AR58652	4	Bolt	-
31	R62590	1	COVER	(SUB FOR R51780)
32	R53474	1	ISOLATOR	(A)
32	R44720	1	Plug	(LESS STARTING AID)
33	R36590	1	PLUG	(C)
1A	R65775	1	Cowl	(B) (C) (SUB FOR R52520) (SUB RE267584)
1A	R65512	1	COWL	(A) L.H. (SUB RE232146)
1B	RE232146	1	COWL	(A) (D)
2A	R53473	1	PAD	(A)
6A	R53473	1	PAD	(A) (SUB FOR R53472)
7A	R65774	1	Cowl	(B) (C) (SUB FOR R52519)
7A	R65511	1	COWL	(A) R.H. (SUB RE232146)

CONTROL SUPPORT, COVERS AND COWL [05F13]
